Spare parts and accessories
24.3
Replacing fan

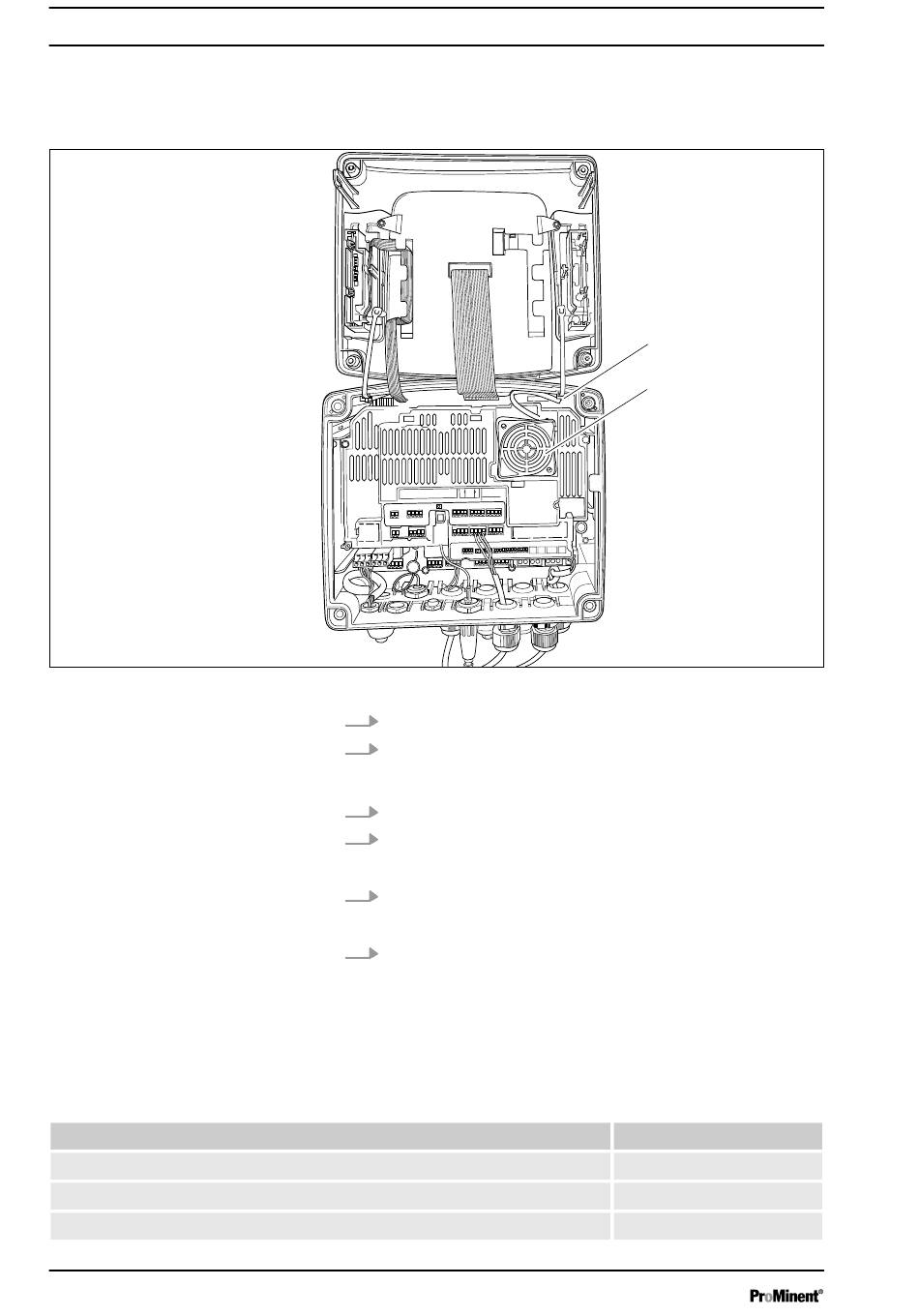

Fig. 131: Replacing fan, part no. 733328
24.4
Accessories
Accessories
Cable combination coaxial 0.8 m, pre-assembled
Cable combination coaxial 2 m-SN6 - pre-assembled
Cable combination coaxial 5 m-SN6 - pre-assembled
172
User qualification, replacing fan: Electrical technician
n
Ä Chapter 2.4 'User qualification' on page 16
1.
Open housing of controller.
2.
Using an appropriate tool, such as pointed pliers (e.g. DIN
EN 60900; VDE 0682-201), loosen the electrical plug-in con‐
nector (1).
3.
Remove the fan (2).
4.
Insert the new fan (2). The ProMinent lettering faces you.
ð Make sure that the two fixing hooks slot in properly.
5.
Use an appropriate tool to connect the plug-in connector (1).
ð The fan must now rotate.
6.
Close housing of controller.
User qualification, accessories: Electrical technician
n
2.4 'User qualification' on page 16
1.
2.
Ä Chapter
Order number
1024105
1024106
1024107
A2347
