Spare parts and accessories
24.2
Replacement of spare parts units
Replacement of the upper part of the
housing with display

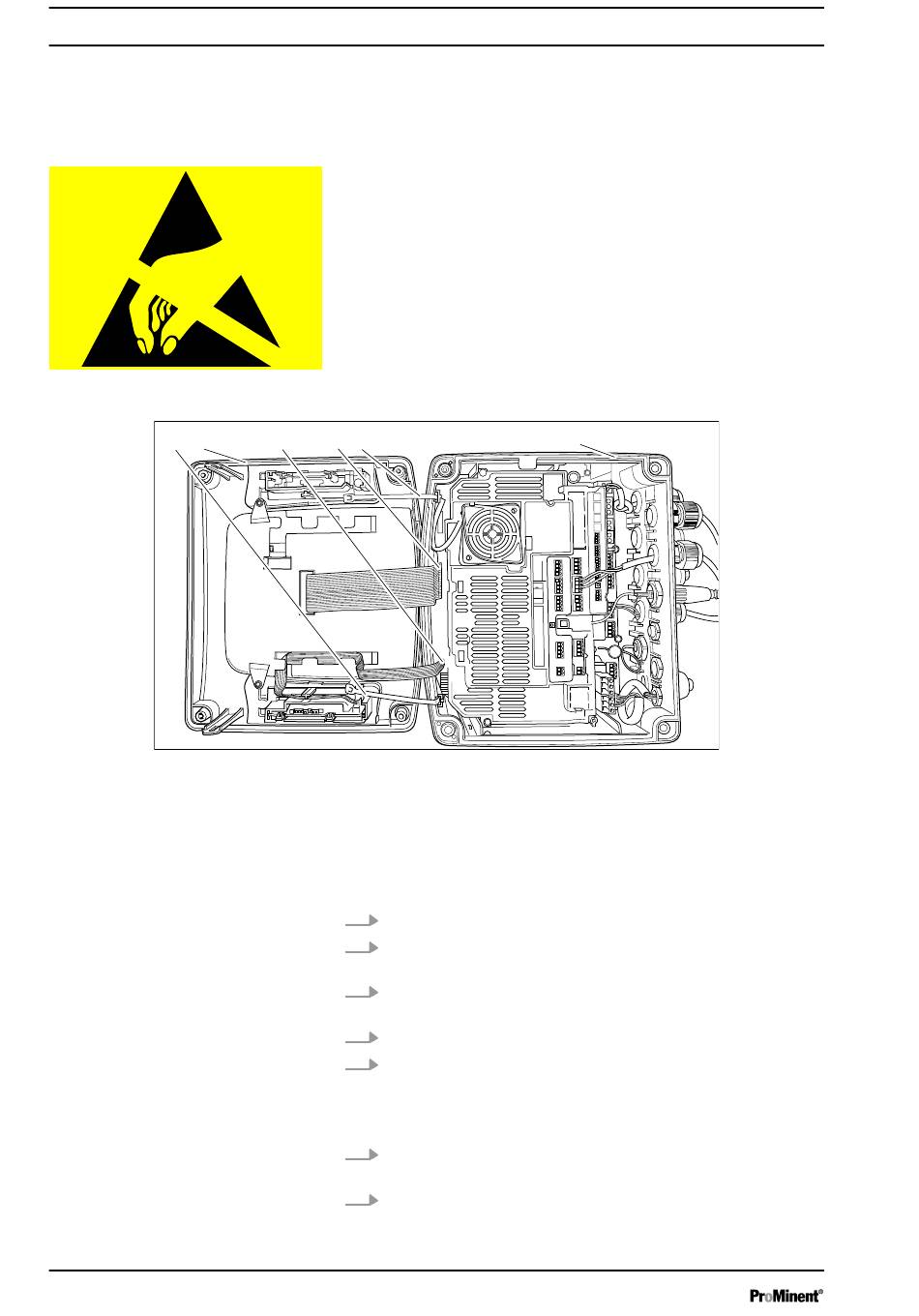

Fig. 129: ESD-sensitive components
1
2
Fig. 130: Replacement of spare parts units
1. Strain relief
2. Upper part of the housing
3. Plug, small
4. Plug, large
5. Strain relief
6. Lower part of the housing
170
User qualification, replacement of the upper part of the housing
n
with display: Electrical technician
cation' on page 16
Adhere to the basic principles of ESD protection whenever
working.
A3096
3
4
5
1.
Disconnect the controller from the mains power supply.
2.
Loosen 4 screws on the upper part of the housing (2) and
remove the upper part of the housing.
3.
Place or suspend the upper part of the housing near the con‐
troller.
4.
If fitted: loosen the strain relief (1 and 5).
5.
Remove the plugs (3 and 4), using pointed pliers if neces‐
sary.
ð You can now replace the old upper part of the housing
with the new upper part of the housing.
6.
Replace the plugs (3 and 4), using pointed pliers if neces‐
sary.
7.
If fitted: fit the strain relief (1 and 5).
Ä Chapter 2.4 'User qualifi‐
6
A2306
