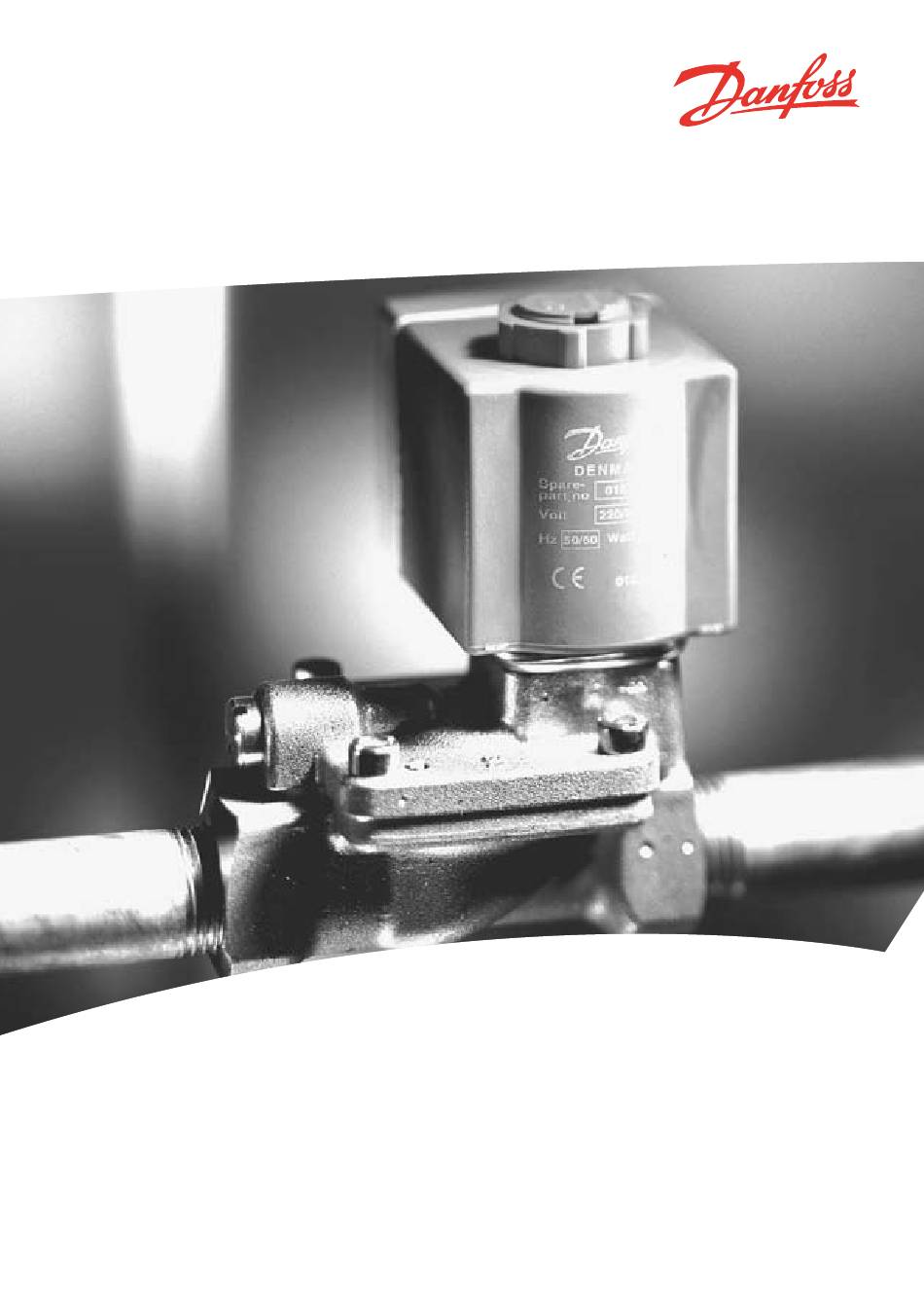

MAKING MODERN LIVING POSSIBLE
how to use
solenoid valves
IC.PS.600.A4.02 / 520B2809
I N D U S T R I A L A U T O M AT I O N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV210B and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss EV210B

Summary of Contents for Danfoss EV210B

  • Page 1 MAKING MODERN LIVING POSSIBLE how to use solenoid valves IC.PS.600.A4.02 / 520B2809 I N D U S T R I A L A U T O M AT I O N...
  • Page 2 One call and you’re in control One call to Danfoss gives you access to an entire range of high-quality industrial controls. The Danfoss line encompasses components for industial monitoring and control systems based on the principles of pressure and temperature measurement, electrical power, and fluid control, and includes: •...

  • Page 3: Table Of Contents

    Identification Contents Installation How to choose Valve overview Seal material Coils Opening and closing times Fault location Spare parts high performance (blue) range Spare parts compact (black) range Tools © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 4 Used typically for drinking water. Differential pressure higher than 0,5 bar. Note ! For more details see page 11. Note that this booklet describes only brass solenoid valves. For other types, please contact Danfoss. IC.PS.600.A4.02 / 520B2809 IC.PS.600.A4.02 / 520B2809...

  • Page 5: Identification

    The coil type (BB230AS) is printed on the front of the coil as well as voltage (V) and frequency (Hz) - see illustration 2. After identification, see the first section of this handbook. B - Valve High performance © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 6 Valve identification If no code is stamped in the valve, the following missing information will be of great help when ordering Danfoss solenoid valves as replacements: • Application (closed circuit, open system or drain application)? • Function (de-energised open or closed)? •...

  • Page 7: Installation

    C: Use a solenoid valve of the type EV220B 15-50. The equalising orifice can be replaced by a version with smaller diameter. This gives a longer closing time (see “Spare parts” and “Opening and closing times”). Equalising orifice © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 8 1. By applying voltage to the coil 2. By opening the valves manually(when the manual override accessory is fitted) 3. By connecting the Danfoss permanent mag- net (see Tools, page 40) Note that the manual opening unit is not supplied as standard, but as an accessory for EV220B 15-50 valves (see page 31).
  • Page 9 Installation Dirt in the system Always flush out piping before installing a solenoid valve. If there is dirt in the medium, a filter should be installed ahead of the valve. © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 10 Installation Installing the coil Danfoss recommends that the solenoid valve be in- stalled with coil upwards. This minimises the risk of dirt collecting in the armature tube. If “clean” media is used, i.e. media containing no dirtpar- ticles, the solenoid valve will operate when installed in the orientation as shown below.
  • Page 11 Installation Direct-operated valves © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 12 Installation Coil Check to ensure that the coil operating voltage is correct (see text on coil, in “Volt”). Also ensure that the data is correct (voltage and frequency) and matches the supply. If the two sets of data do not correspond, the coil might burn out.
  • Page 13 Please note for clip-on coils. When replacing a coil, use a screwdriver to lever it from the armature. Caution: Before removing a coil, voltage must be disconnected, otherwise the coil will burn out. © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 14: How To Choose

    This enables clarification as to whether there is sufficient pressure differential to be able to open a servo-operated valve. The following types of valves are well-suited for use in open systems: EV210B, EV210A, EV310B and EV310A direct -operated solenoid valves EV220B, EV220A and EV225B servo-operated solenoid valves Closed circuit (cirulating system) In a closed circuit system the pressure conditions are undefined.
  • Page 15 The product range includes valves for special application, designed for pressures of up to 80 bar. The large standard range combined with these valves enable the use of Danfoss solenoid valves for all types of systems, wether with normal or more extreme inlet pressures.
  • Page 16 How to Choose The characteristics of the medium The valve have been designed for use with different media. In general the following is valid: Valves containing EPDM-rubber are suitable for water and steam*. Valves containing FKM-/NBR-rubber are suitable for oil and air. Incorrect use of valve types 1) If a valve containing EPDM-rubber is used for a medium containing oil (compressed air normally contains particles of oil from the compressor)
  • Page 17 Valve function Most industrial systems operate with a de-energised closed valve (NC = normally closed). Our valve range also offers de-energised open valves (NO = normally open) for applications requiring this feature. © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 18: Valve Overview

    Valve overview - High performance (blue) range Medium Water Steam Air and neutral gases EV210B EV310B EV220B EV250B EV225B IC.PS.600.A4.02 / 520B2809 IC.PS.600.A4.02 / 520B2809...
  • Page 19 G /8" - G " NC/NO rated 2/2-way solenoid valves for universal use. EV210B is a real robust valve program with high performance and can be used in all kind of tough working conditions. EV310B is a direct-operated 3/2- way G /8"...
  • Page 20 Valve overview - Compact (black) range Medium Air and Water Steam neutral gases EV210A EV310A EV220A IC.PS.600.A4.02 / 520B2809 IC.PS.600.A4.02 / 520B2809...
  • Page 21 G /8" and G /4" NC/NO EV220A is a compact indirect servo-operated 2/2-way solenoid valve program. G /4" - G 2" With brass valve body for robust industrial applications. G /4" - G " © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 22: Seal Material

    Seal material Media table Seal Material EPDM PTFE Medium 0 to +60 Water / glycols - 30 to +140 -10 to +90 0 to +100* 0 to +100 -10 to +90 0 to +100 -10 to +90 Steam to +140 to +185 * Direct-operated valves EPDM is suitable for water and steam within the...

  • Page 23: Coils

    20 W with 1 m cable 220 - 230 V ac / 50-60 Hz 08F70 08F0094 O-ring for fixing and sealing coil (pack of 10 pcs.) 1) For other voltages or coil types, See coil data sheet.. © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 24 Coils AB coils (IP00-IP65) Code no. Coil consumption Supply voltage / frequency 042N0804 4.5 W without cabel plug 110 V ac / 50/60 Hz 042N0800 4.5 W without cabel plug 220-230 V ac / 50/60 Hz 042N080 5 W without cabel plug 24 V dc 042N09 Cable plug for AB coils...

  • Page 25: Opening And Closing Times

    7 - 10 EV220A 6 EV220A 10 EV220A 12 EV220A 14 EV220A 18 EV220A 22 EV220A 32 2500 4000 EV220A 40 4000 6000 EV220A 50 5000 10000 EV310A 7 - 10 7 - 10 © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 26 Opening and closing times Changing opening and Please note for high performance type. closing times EV220B 15-50 closing times can be changed by replacing the equalising orifice at the inlet side of the valve (see “Water hammer", page 15, and “Spare parts”, page 34).

  • Page 27: Fault Location

    Clean diaphragm. If necessary, replace defective component(s) Dirt in valve seat/dirt in arma- Clean valve; if necessary, replace defective component(s). ture/armature tube Corrosion Replace defective component(s) Components missing after Fit missing component(s) valve dismantling © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 28 Fault location Symptom: Solenoid valve partly opens Probable cause Remedy Check valve data, incl. differential pressure. Replace valve Differential pressure too low with correct version. Damaged or bent armature tube Replace valve. Dirt at diaphragm Clean diaphragm. If necessary, replace defective component(s) Dirt in valve seat/dirt in armature/ Clean valve, if necessary, replace defective component(s).
  • Page 29 Corrosion, pilot/main orifice Replace defective components. Valve installed wrong way round Check liquid flow direction and make sure the arrow is pointing in the same direction. Components missing after valve Fit missing component(s) dismantling © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 30 Fault location Symptom: Solenoid valve sounds wrong Probable cause Remedy Hum caused by ac frequency. Can be removed by chang- ing to coil with rectifier (see page 21). Water hammer when valve opens See "Installation" Water hammer when valve closes Differential pressure too high Check valve data and differential pressure.
  • Page 31 Change to suitable coil or valve. Ambient temperature too high If possible, move valve to colder surroundings. Check valve and coil data in relation to installation specification. Increase ventilation around valve and coil. © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 32: Spare Parts High Performance (Blue) Range

    EV220B 6 NO 02U066 02U065 EV220B 10 NO 02U067 02U0295 02U0296 EV220B 15 - 50 NO NO components are also available for Danfoss valves with other seal materials. See page 20 for seal material description. IC.PS.600.A4.02 / 520B2809 IC.PS.600.A4.02 / 520B2809...
  • Page 33 Manual opening unit The manual opening unit for EV220B 15-50 can be used to open and close the valve in the event of power failure or when applying test pressure. Code no. 02U050 © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 34 The spare parts set contains locking button and nut for coil, armature with valve plate and spring, and O-rings. EPDM versions Code no. Type 02U6000 EV210B 1.5 - 4.5 02U2006 EV210B 6,8,10 versions Code no. Type 02U200 EV210B 1.5 - 4.5 02U20 EV210B 6,8,10 See page 20 for description of seal materials Isolating diaphragm kit for EV20B .5-4.5 NC and EV220B 5-50 NC...
  • Page 35 Spare parts sets are also Valve type Code no. available for Danfoss EV220B valves with other seal materials 02U062 EV220B 6 NC (see page 20 for seal material 02U065 EV220B 10 NC description). 02U068 EV220B 12 NC © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 36 EPDM 02U08 EV220B 50 EPDM Spare parts sets are also available for Danfoss EV220B valves with other seal materials. See page 20 for description of seal materials The spare parts set contains locking button and nut for coil, armature with valve plate and spring,...
  • Page 37 NO armature unit and cover. Code no. Valve type Seal material 02U59 EV250B 10 - 12BD EPDM EV250B 18 - 12 BD 02U520 02U52 EV250B 10 - 22BD EPDM 02U522 EV250B 10 - 22BD © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...
  • Page 38 Spare parts high performance (blue) range Spare parts kit The spare parts kit for EV0B compries an armature with mounted spring Code no. Type Seal Material 02U20 02U205 IC.PS.600.A4.02 / 520B2809 IC.PS.600.A4.02 / 520B2809...
  • Page 39 240 V, 50 Hz ( 10 W ac ) 02K46.9 110 V, 60 Hz ( 10 W ac ) 02K46.90 220 V, 60 Hz ( 10 W ac ) 02K409.02 24 V dc ( 17 W dc ) © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 40: Spare Parts Compact (Black) Range

    Spare parts compact (black) range Spare parts for EV20A NC Code no. Seal material 042U0067 EPDM 042U0068 The spare parts set comprises the follow- ing parts: 1) Armature tube 2) Armature with valve plate and spring 3) Flange 4) Disk 5) O-ring 6) Nut 7) 2 screws for connecting tube to valve body...
  • Page 41 EV220A 18 - 22B 042U008 042U07 EV220A 32B EPDM EV220A 32B 042U08 042U046 EV220A 32B EV220A 40B EPDM 042U09 042U040 EV220A 40B 042U047 EV220A 40B 042U04 EV220A 50B EPDM 042U042 EV220A 50B 042U048 EV220A 50B © Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809...

  • Page 42: Tools

    Permanent magnet With this tool it is possible to operate solenoid valves without wiring up the electrical coil. Please contact your local Danfoss office to obtain these popular tools. IC.PS.600.A4.02 / 520B2809...
  • Page 43 Quality approval Danfoss high quality level also applies to our valve range. Continuous monitoring of all processes in the valve factories ensure a uniform, high quality level is achieved by the international standard ISO 9001 approved quality assurance system. This means that Danfoss complies with the require- ments on product development, design, produc- tion and sales.
  • Page 44 IC.PS.600.A4.02 / 520B2809 © 05-2007 Danfoss A/S IA-MC/frz...
