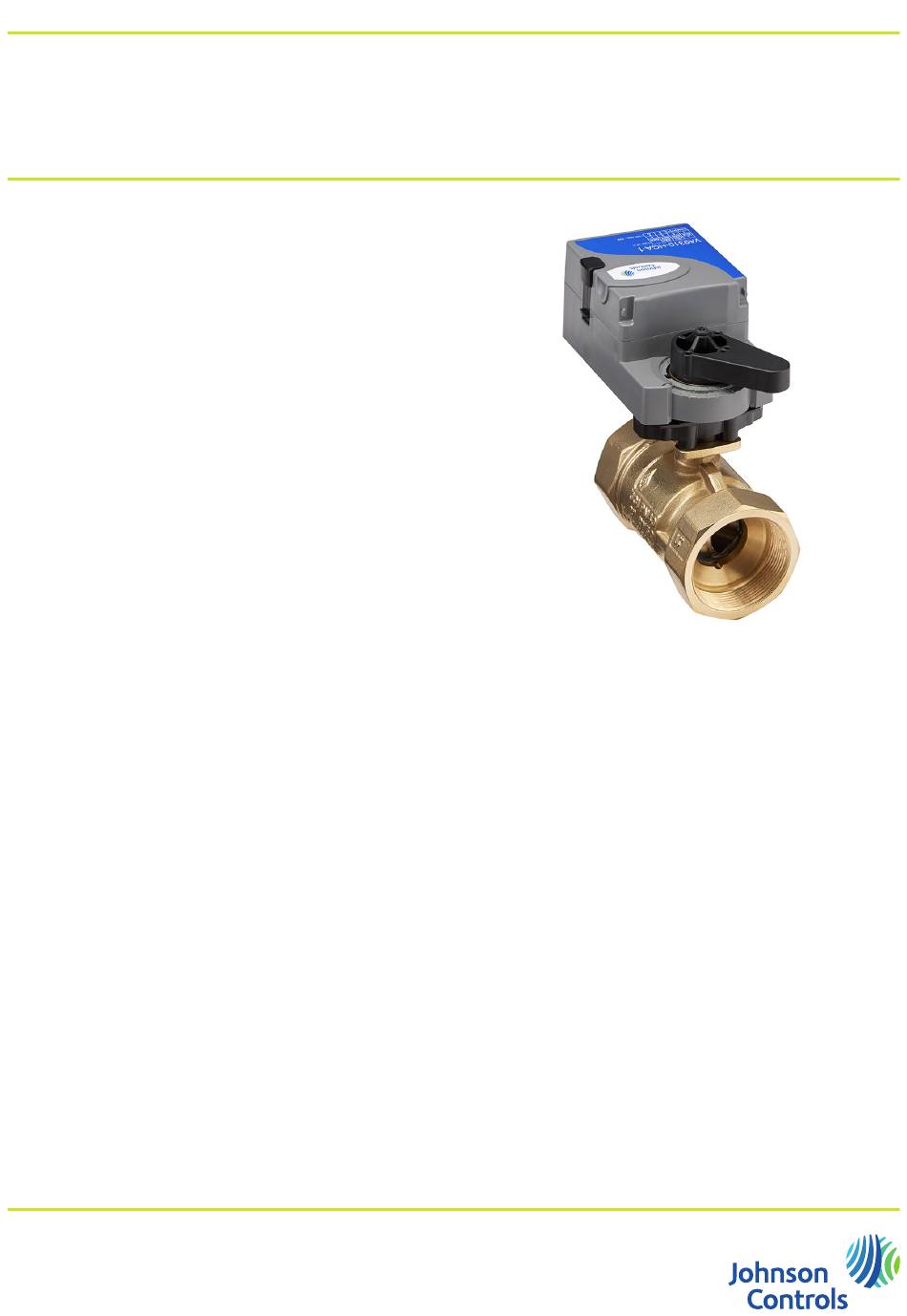

Johnson Controls VA9300 Product Bulletin

VA9300
Non Spring Return Actuators for Ball Valves
Product Bulletin

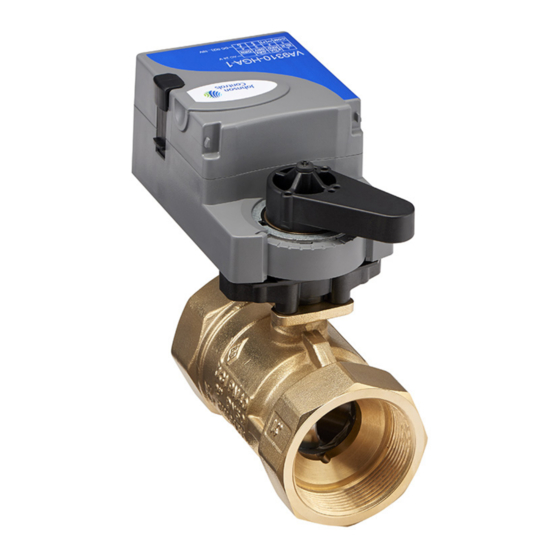

The VA9300 Series Electric Non Spring Return
Actuators are used to provide accurate positioning
on Johnson Controls VG1000 Series DN15
®
up to DN150 ball valves in Heating, Ventilating
and Air Conditioning (HVAC) applications from 8
to 35 Nm rated torque.
■ Automatic Signal Input Detection model On/Off, Floating and Proportional
Increase availability at distributors. Simplify retrofit.
■ High speed actuator model
Allow applications in loop that require a quick response time.
■ Optional Auxiliary Switch & potentiometer feedback
Provides line voltage capable single Pole Double-Throw (SPDT) switch and 140Ω, 1KΩ, 2KΩ or 10KΩ feedback
potentiometric.
■ Direct-Coupled Design
Requires no separate linkage because the VA9300 Series Actuators are ready for direct attachment to Johnson
Controls VG1000 Series valves by driving one captive screw.
■ Rugged IP54 Rated Enclosure
Provides a high degree of protection from dust, splashing water and rough handling.
■ Electronic Stall Detection
Protects from overload at all angles of rotation. The actuator may be stalled anywhere in its rotation range without the
need for mechanical end switches.
■ Microprocessor-controlled Brushless DC Motor
Provides constant runtime independent of torque and increases life cycle by reducing wear.
PB_VA9300_05 2020
