System Information Window

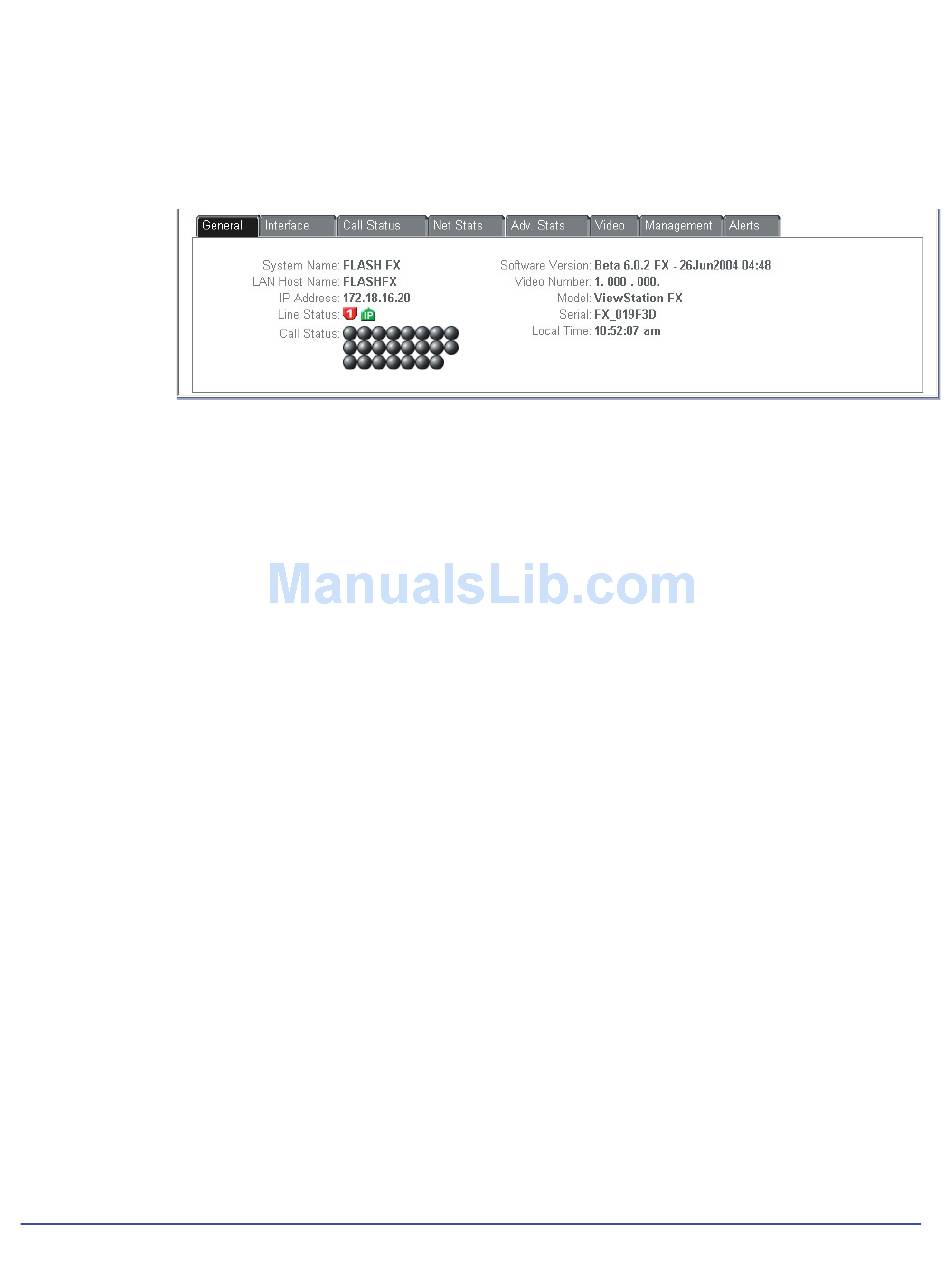

This window contains information specific to the device selected in the System list. Below is a screenshot of System
Information tabs for a ViewStation. The tabs shown are specific to each model type.
Detailed information regarding the tabs for each device is found in the appendix on page 117.
General
Interface
Call Status
Network Stats
Advanced Stats
Video
QoS
Details
Summary
Management
Alerts
Polycom ReadiManager LX100 User Guide
Figure 2.3 System Management Tabs
With the exception of the General Tab, the descriptions below pertain to the video
endpoints.
Displays general system information for video endpoints, server status for
WebCommander and response strings for Other Device
Reveals the network configurations for the selected video endpoints
Detailed call status information
Describes the video and audio protocols used
Displays audio and video transmission rates
Shows video sent and received by the selected ViewStation
Displays the components that allows the differentiation and preferential treatment of
network traffic for iPowers
Displays detailed information on video and audio configuration for ViaVideo
Displays summary information on endpoint and bandwidth statistics in PathNavigator
Displays the URL of the different servers that manage the selected video endpoints
Lists errors and/or warnings that are occurring with the selected video endpoints
Chapter 2 System Management 20
