2.1.2 Renaming PCB Objects

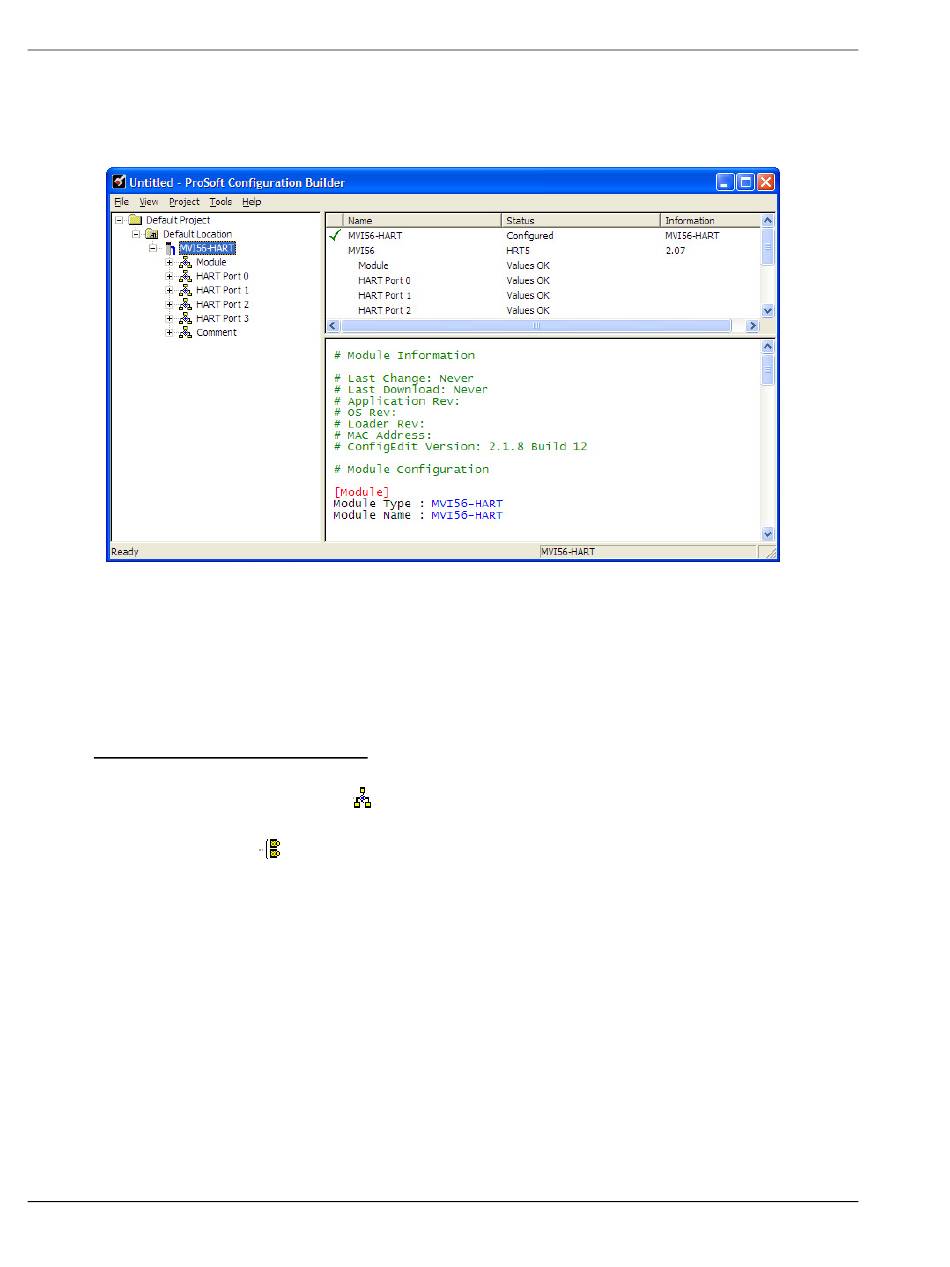

Notice that the contents of the information pane and the configuration pane changed
when you added the module to the project.
At this time, you may wish to rename the Default Project and Default Location folders in
the tree view.
Select the object, and then click the right mouse button to open a shortcut menu.
1
From the shortcut menu, choose R
Type the name to assign to the object.
2
Click away from the object to save the new name.
3
Configuring Module Parameters
Click the [+] sign next to the module icon to expand module information.
1
Click the [+] sign next to any
2
options.
Double-click any
3
To edit a parameter, select the parameter in the left pane and make your changes in
4
the right pane.
Click OK to save your changes.
5
Page 32 of 171
.
ENAME
icon to view module information and configuration
icon to open an Edit dialog box.
