Downloading the Sample Program to the Processor

Note: The key switch on the front of the CompactLogix processor must be in the REM or PROG position.
1 If you are not already online to the processor, open the C
then choose D

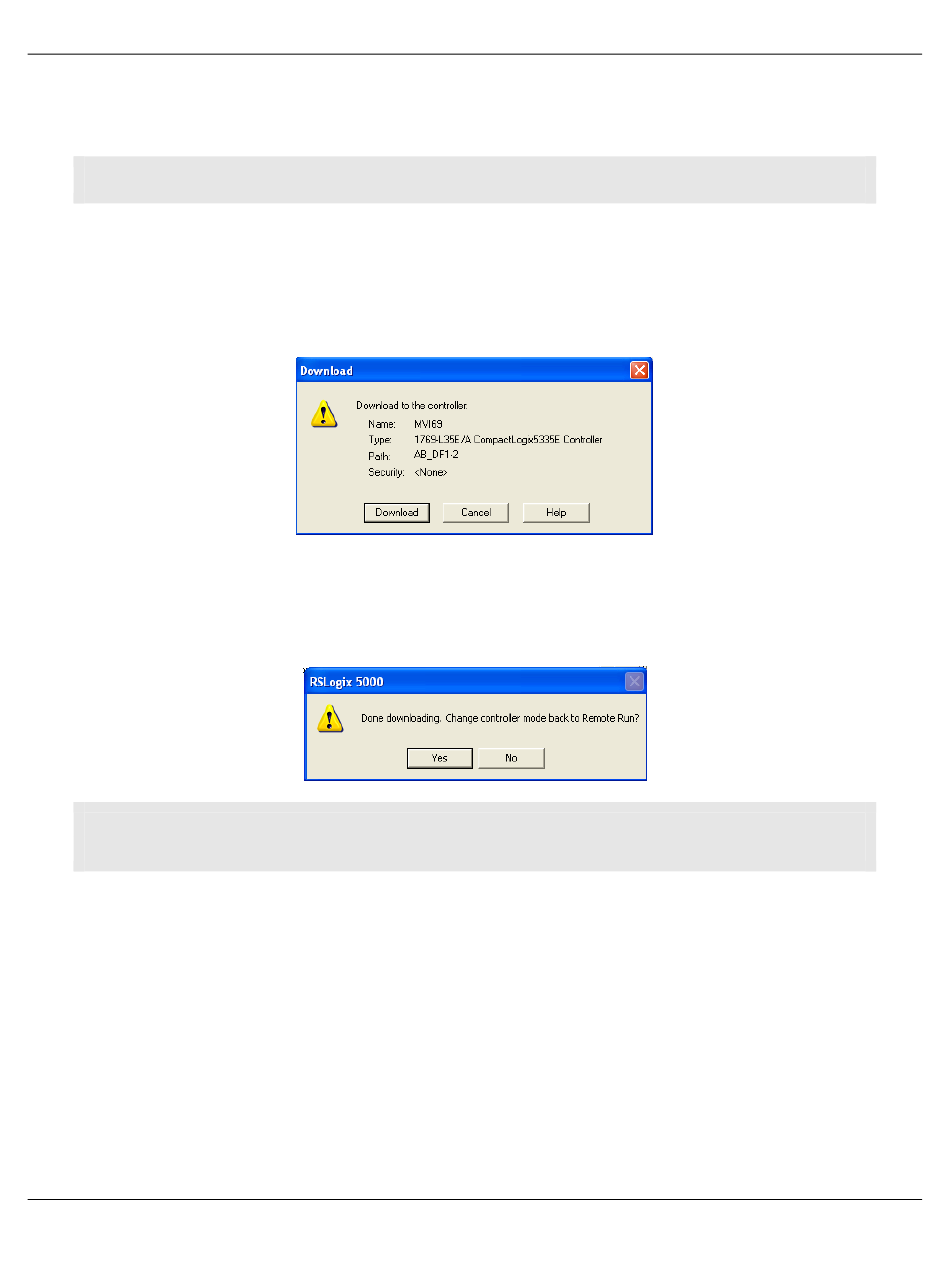

2 When communication is established, RSLogix will open a confirmation dialog box.
Click the D
3 RSLogix will compile the program and transfer it to the processor. This process may
take a few minutes.
4 When the download is complete, RSLogix will open another confirmation dialog box.
Click OK to switch the processor from PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to interpret
and correct the error.
