1.4 Downloading the Sample Program to the Processor

Note: The key switch on the front of the ControlLogix processor must be in the REM or PROG position.
1 If you are not already online with the processor, in Studio 5000 open the
Communications menu, and then choose D
communication with the processor. You may download through any available
network connection.

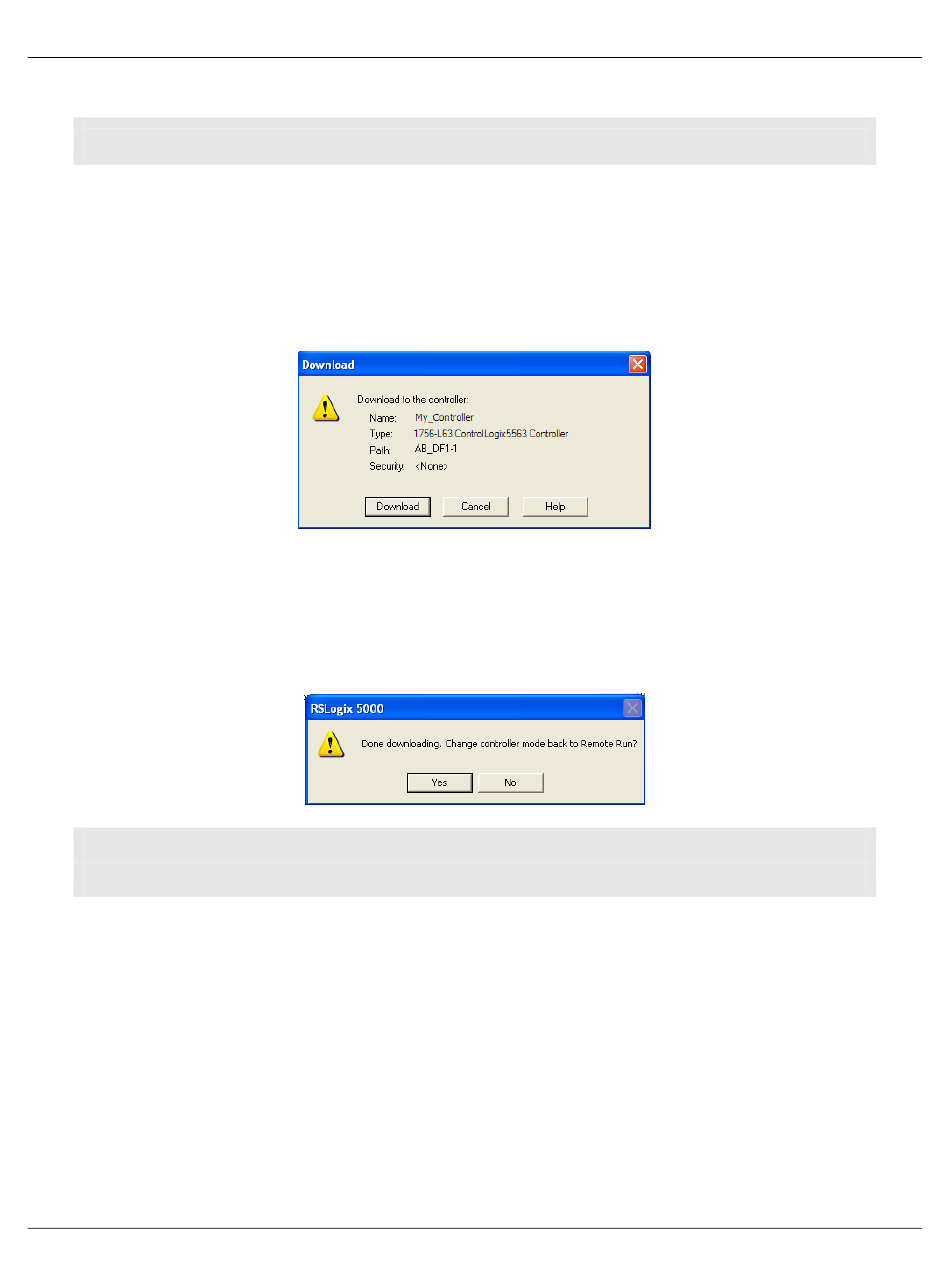

2 When communication is established, Studio 5000 will open a confirmation dialog
box. Click the D
3 Studio 5000 will compile the program and transfer it to the processor. This process
may take a few minutes.
4 When the download is complete, Studio 5000 will open another confirmation dialog
box. If the key switch is in the REM position, click OK to switch the processor from
PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to interpret
and correct the error.
ProSoft Technology, Inc.
button to transfer the sample program to the processor.
OWNLOAD
. Studio 5000 will establish
OWNLOAD
