⑦ EOAT Rotation

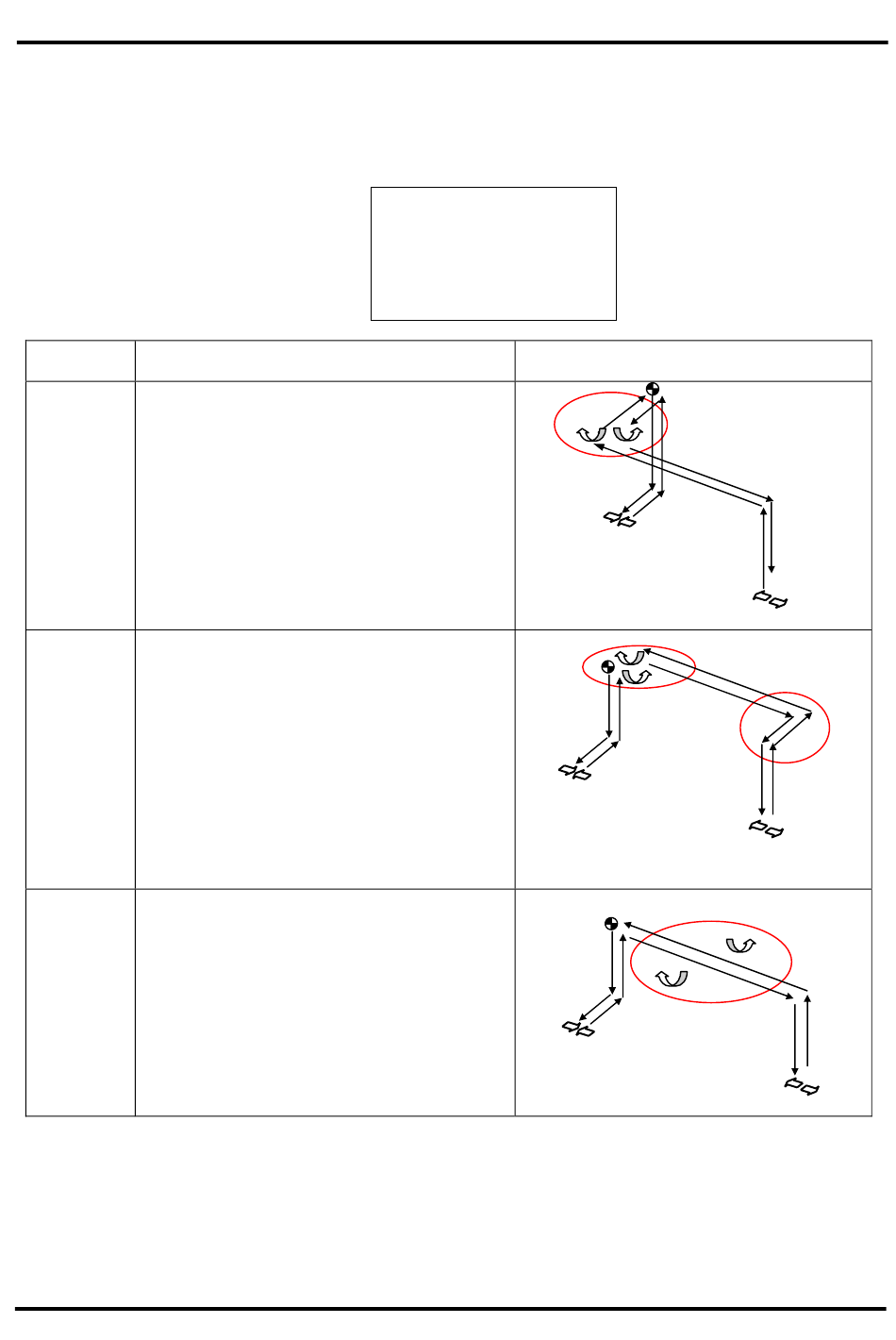

EoatRot : EOAT Rotation, means Chuck(EOAT) rotation time setting.
Default setting is "BeforeT". ( Before Traverse )
Display
Before T : Before Traverse Movement.
BeforeT
EOAT
(=Default)
movement to prevent EOAT unit from
crash with Safety Door. ( After Kick )
No Kick : No Kick , Before Traverse
Movement.
EOAT unit rotates before Kick motion
NoKick and traverse movement to prevent EOAT
unit from crash with Safety Door. ( After
Kick ) and Core of the Mold ( Some Mold
has core )
WhileT : EOAT Rotation While Moving
WhileT
Operate Traverse, Kick, EOAT Rotation
simultaneously. ( High Speed ).
48 TSα Series User Manual
MArmDn
SArmDn
EOATRot BeforeT
MArmOff
Description
unit rotates before
Nozzle
Clamp
◀
Off
traverse
Motion
