2.3 Adjust Kick/Return Cylinder

Adjust the location of Kick Cylinder with Kick shock absorber block and bolts
This information is designed for main arm. Follow same step for sub arm as
described below.
Kick
Main Arm
Bolts
Take-out Position

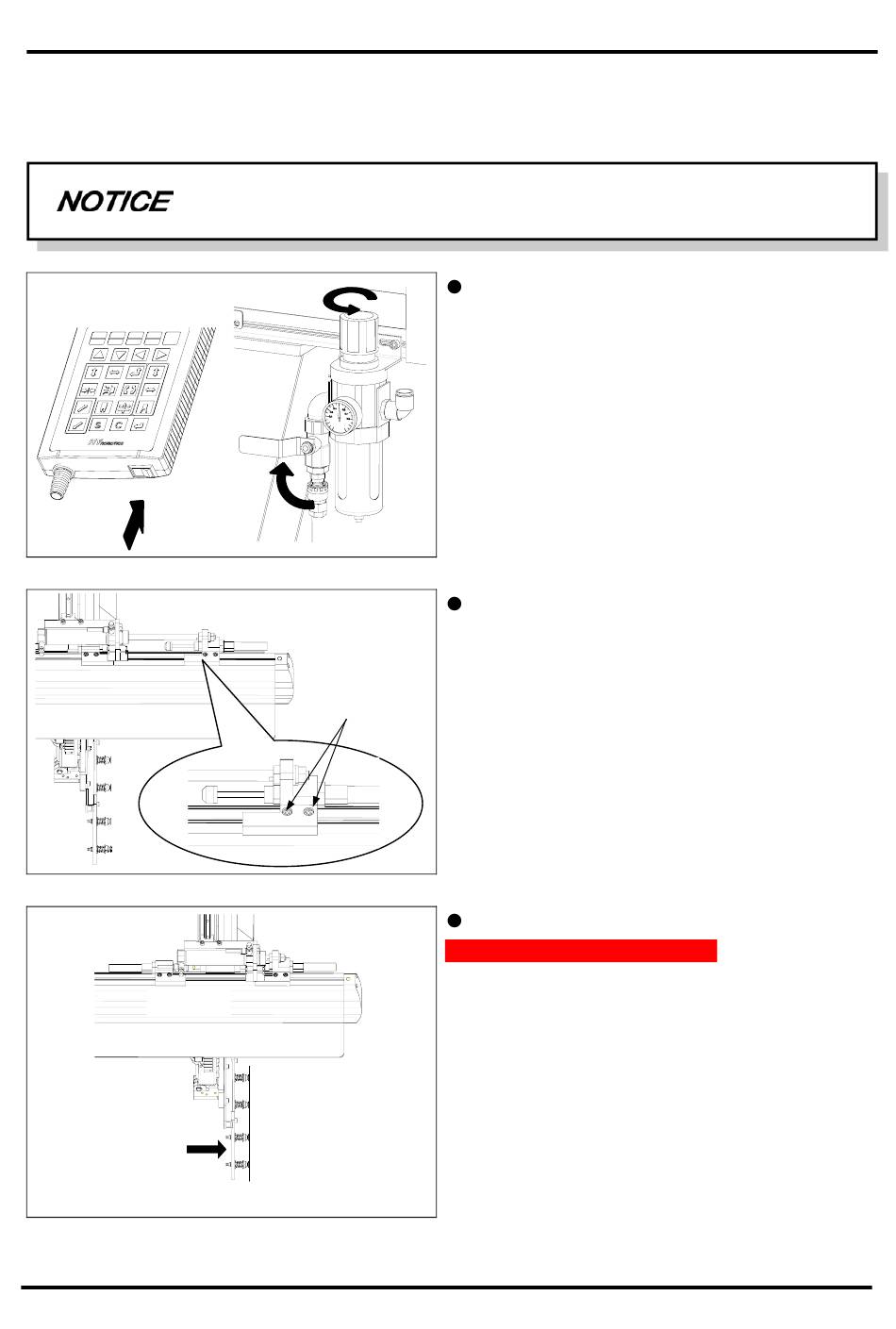

STEP 1
Turn off Power and depressurized system with air
regulator or disconnect air.
STEP 2
Loosen the bolts
STEP 3
Adjust Block location as figures.
TSα Series User Manual 15
