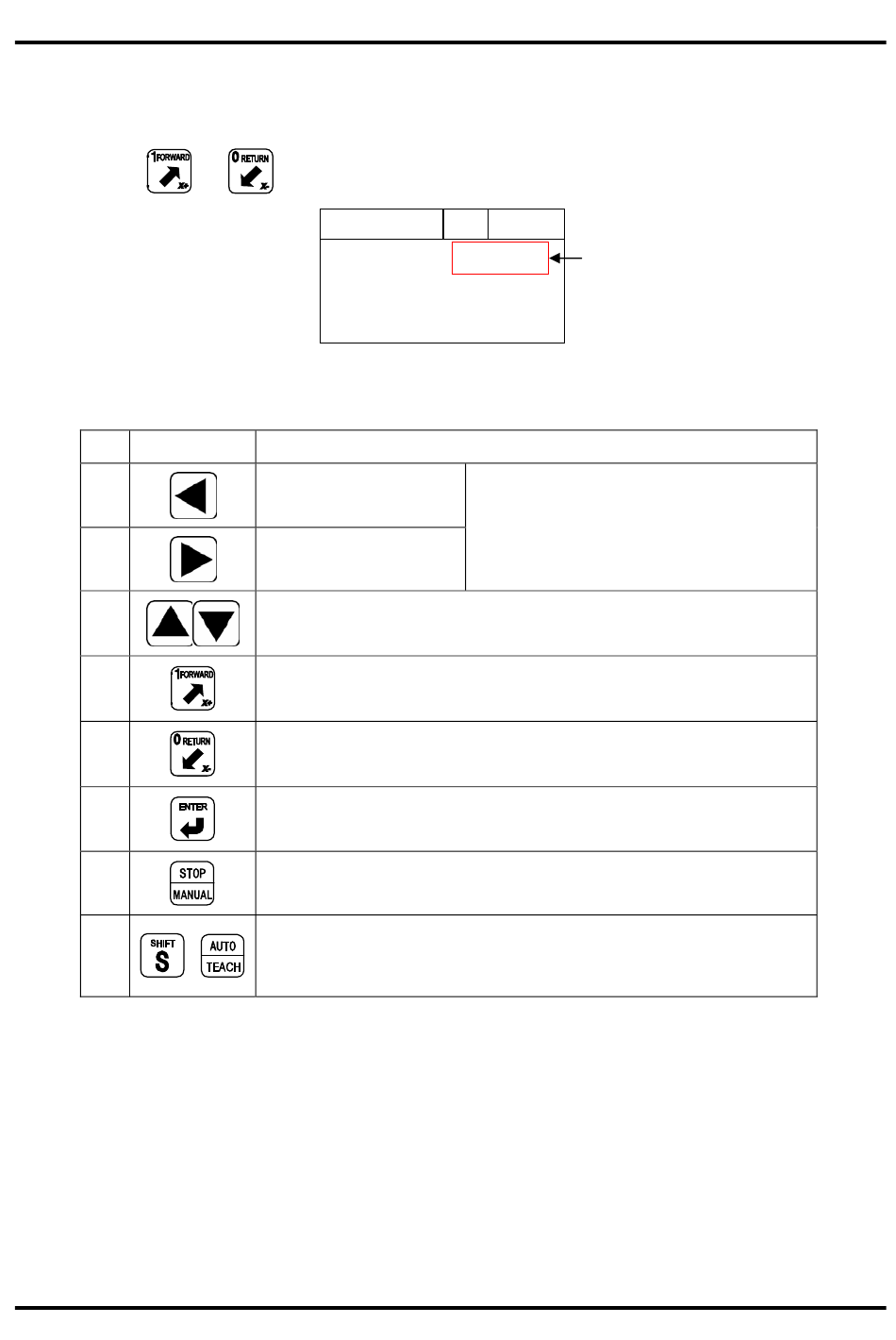

4.1.10 Position Setting with Jog Input

(1) Description
Press or
(2) Button Function
NO Button
1
2
3
4
5
6
7
8 +
set each position value
Jog
P0SubOff
Set
0000mm < 0000mm
Reduce Speed
Increase Speed
Move cursor to up or down item
Traverse Movement ( X+)
Traverse Return Movement ( X-)
Save the input value and Current and set value synchronized.
Press Stop Button to change to Manual Mode.
Press Auto Button with Shift Button, move to Number Input
screen.
30 0000
◀30%▶
Manual Mode Speed
Now
Description
30%, 20%, 10%, 5%
10mm, 1mm
