1. Introduction

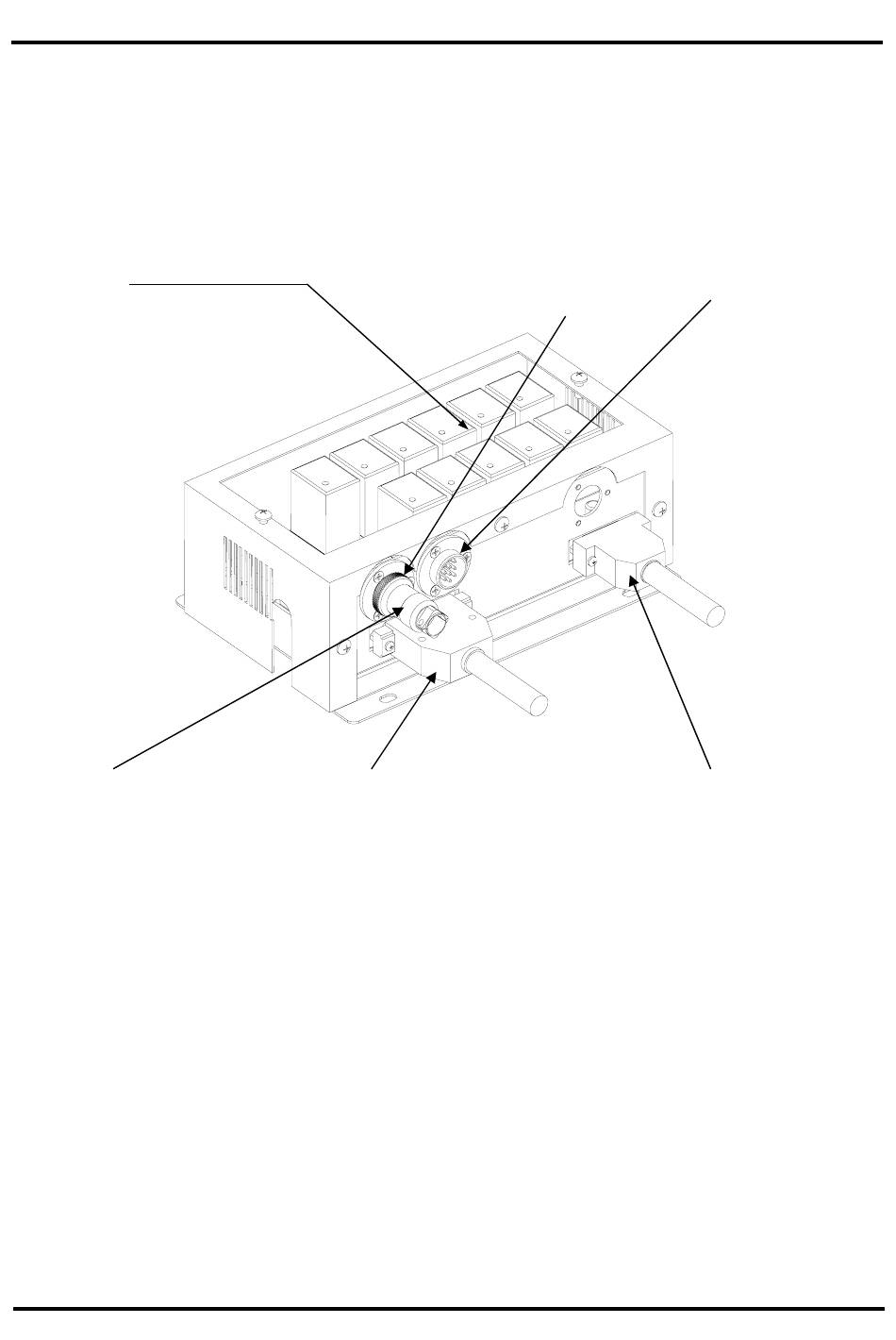

1.4 Interlock and Control Box

Interlock control box communicate and interlock the signal between the injection molding machine
and the take-out robot. When robot is in use, connect the Plug to USE Socket, when robot is not in
use ( Operate IMM only ) , move the Plug to Not Use socket.
Relay
Interlock for IMM, Robot Operation
(
Exchange with new oneonce per year)
Plug
This plug is used when robot in
use or not in use ( not in use :
IMM operation only )
6 TSα Series User Manual
Molding Machine Interlock Cable
This cable is used to connect with the
molding machine.
Not Use Use
Robot Cable
This cable is used to connect the
robot body to the interface box.
