4. Operation
NO Button
16
17
18
19
20
21
22
23
24
34 TSα Series User Manual

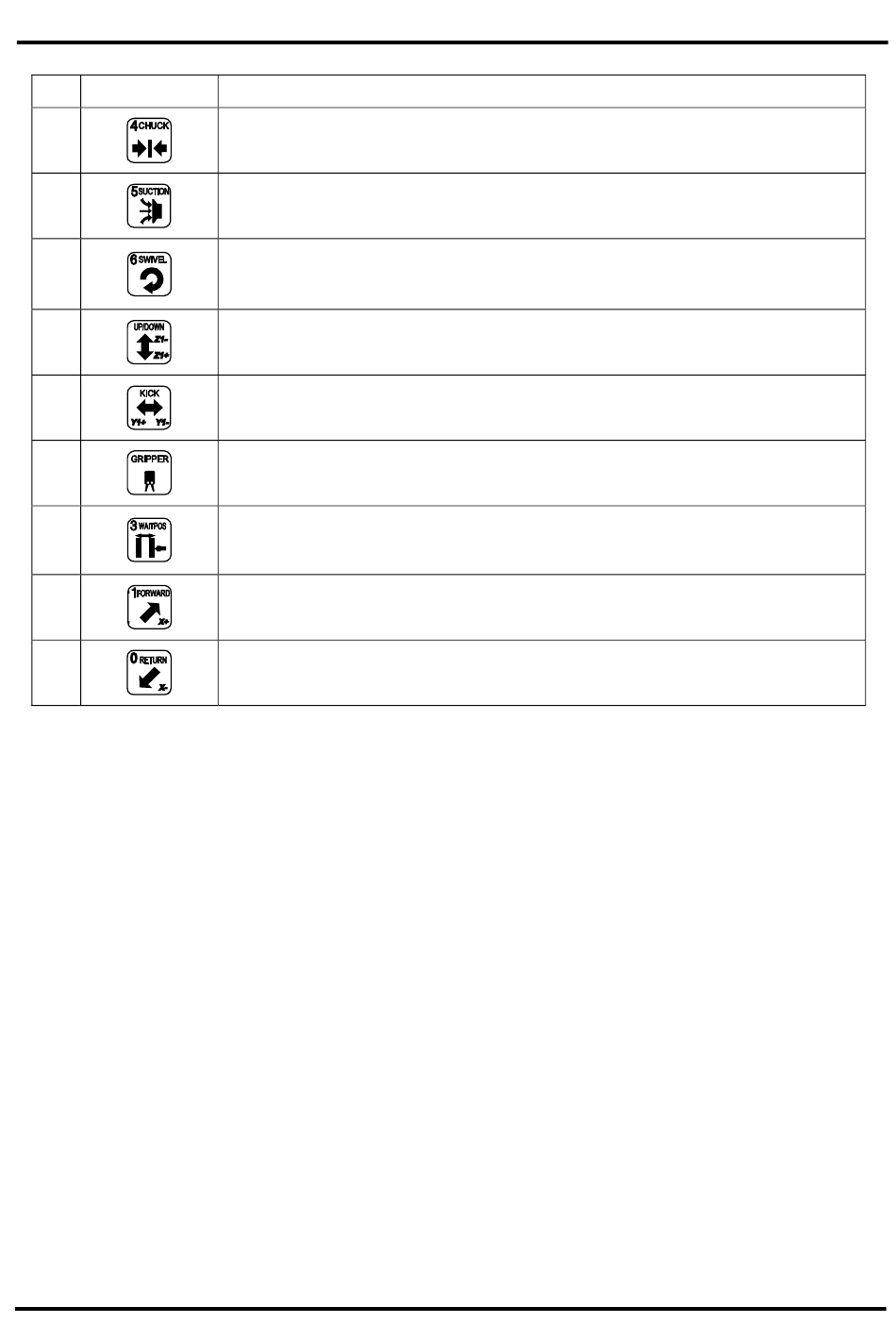

Press Chuck
Chuck , Press again, Chuck Off
Press Suction
Suction, Press again, Suction Off
Press Swivel.
Swing Chuck, Press again, Chuck swing return.
Press Descent Button for Sub Arm
Move Sub Arm Down, Press again, Move Sub Arm up
Press Kick Button
Move Sub Arm Kick, Press again, Move Sub Arm Kick Return
Press Gripper
Grip and Grip Off
Press WAITPOS
LCD displays waiting position setting screen ( Option ).
Press 1 Forward
Robot arm will move traverse ( X+)
Press 0 Return
Robot arm will move traverse return ( X-)
