Redirect Configuration Menu Screen (Chassis)

4.7 REDIRECT CONFIGURATION MENU SCREEN (CHASSIS)
When to Use
To access the Port Redirect Configuration and VLAN Redirect Configuration screens at the chassis
level. Any combination, up to 128, of port and/or VLAN redirect instances can be configured per
installed module, giving a maximum of 640 instances for a chassis with 5 modules. Up to 24
instances per module can be configured as remote instances to other modules in the chassis.
How to Access
Use the arrow keys to highlight the REDIRECT CONFIGURATION MENU item on the
Chassis Menu screen, and press ENTER. The Redirect Configuration Menu screen
displays.
Screen Example

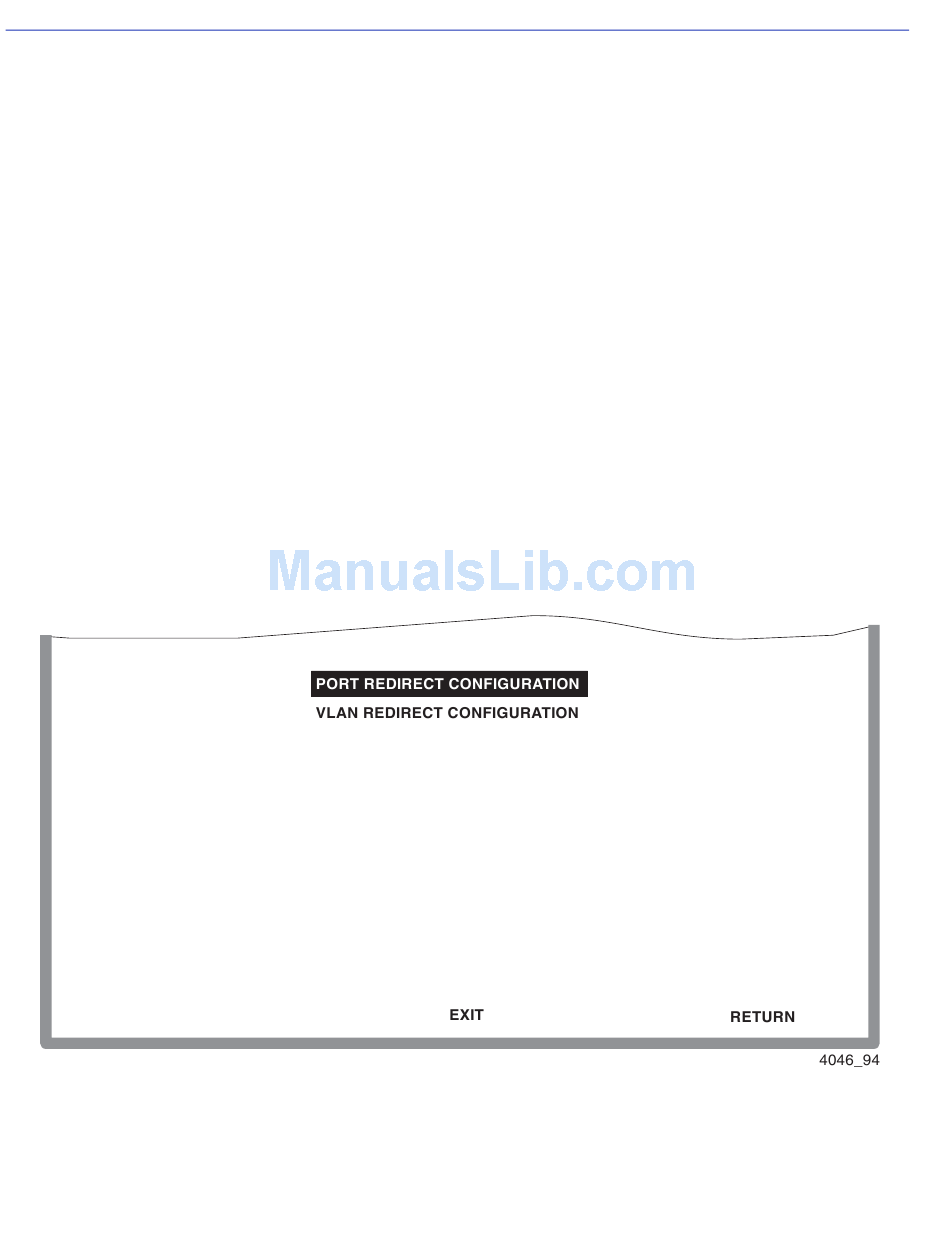

Figure 4-7 Redirect Configuration Menu Screen
4-18 Chassis Menu Screens
(Figure 4-7)
