Link Aggregation Screen (802.3ad Main Menu Screen)
Screen Example

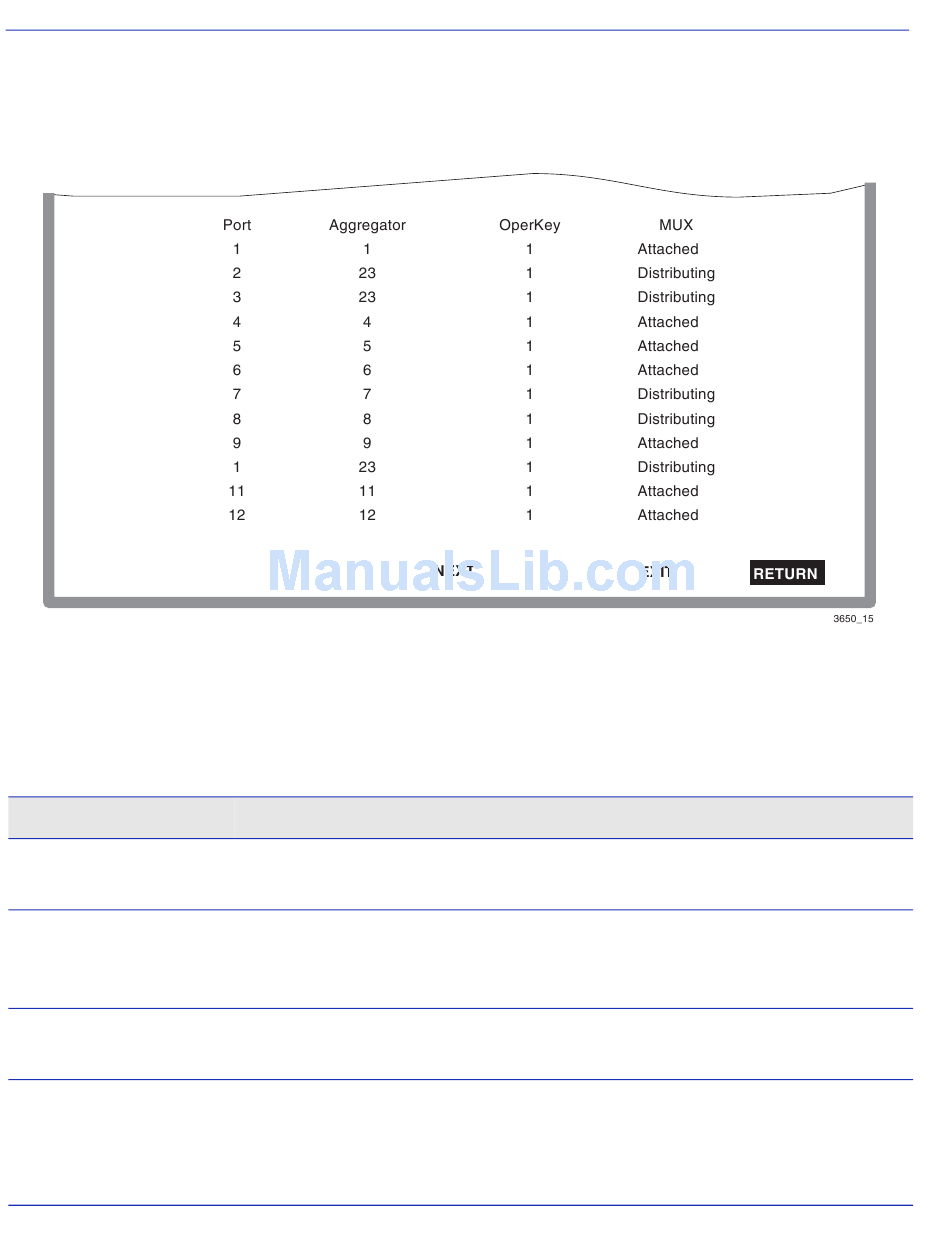

Figure 6-9 802.3ad Port Screen
Field Descriptions
Refer to Table 6-8 for a functional description of each screen field.
Table 6-8 802.3ad Port Screen Field Descriptions
Use this field...
Port
(Read-Only)
Aggregator
(Read-Only)
OperKey
(Read-Only)
MUX
(Read-Only)
6-30 Port Configuration Menu Screens
To...
View the port number, which correlates to the port numbers in other
screens.
View the instance of the aggregator and the attached port. If the
aggregator instance matches the port instance, then the port is not
aggregating with any other port.
View operation key of the port. For ports to be able to aggregate they
must have the same operation key.
View the state of the port's mux state machine. It can have values of
DETACHED, ATTACHED, WAITING, COLLECTING or
DISTRIBUTING. If a port is connected to another port, this field
would display DISTRIBUTING. Otherwise, ATTACHED is displayed.
