VLAN Redirect Configuration Screen
How to Access
Use the arrow keys to highlight the VLAN REDIRECT CONFIGURATION menu item on the
Redirect Configuration Menu screen and press ENTER. The VLAN Redirect Configuration
screen, Figure 4-9, displays.
Screen Example

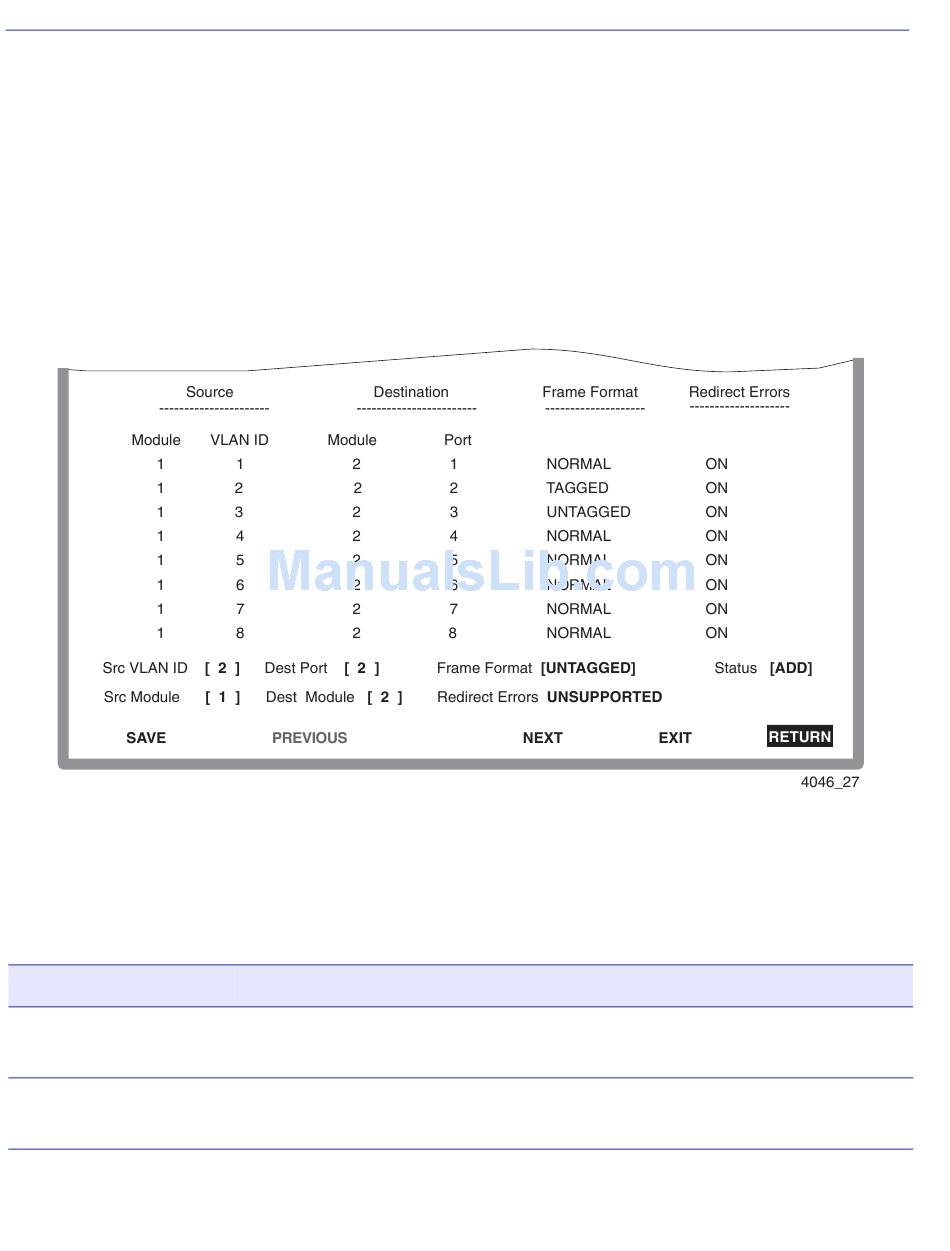

Figure 4-9 VLAN Redirect Configuration Screen
Field Descriptions
Refer to Table 4-9 for a functional description of each screen field.
Table 4-9 VLAN Redirect Configuration Screen Field Descriptions
Use this field...
Source Module
(Read-Only)
Source VLAN ID
(Read-Only)
4-24 Chassis Menu Screens
To...
See which modules are currently set as source modules.
See the VLAN ID of the VLANs that are currently set as source
VLANs.
