Traffic Class Configuration Screen

9.4 TRAFFIC CLASS CONFIGURATION SCREEN
When to Use
To change the Traffic Class setting of one or more priorities on each port. The new Traffic Class
settings may be applied only to the port selected or to all ports, simultaneously.
How to Access
Use the arrow keys to highlight the appropriate port number field above the column of the Traffic
Class settings in the Traffic Class Information screen. Press ENTER. The Traffic Class
Configuration screen,
Class assignment for each Port Priority.
Screen Example

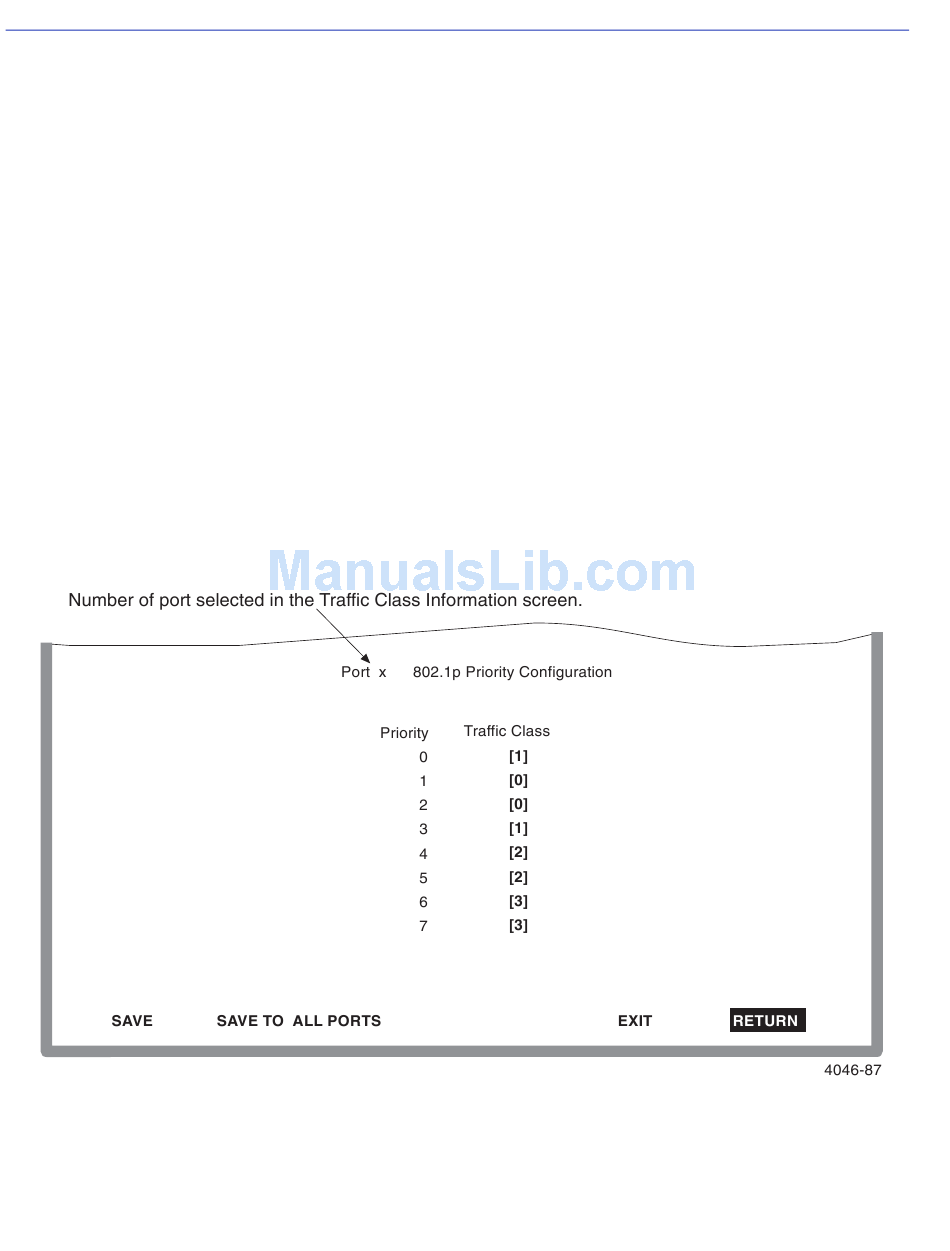

Figure 9-4 Traffic Class Configuration Screen
9-10 802.1p Configuration Menu Screens
Figure 9-4, for the selected port is displayed, showing its current Traffic
