VLAN Classification Configuration Screen

•
Assign VLANs according to Classification rules.
•
Add/delete a VID and associated classification entry.
•
Access the Protocol Port Configuration screen.
When a frame is received that already contains an 802.1Q frame tag, frame classification is not
implemented. Instead, the frame is processed by the switch module according to the information
contained in the 802.1Q frame tag. When the frame is transmitted, it is sent to the ports associated
with the VLAN as established using the Protocol Port Configuration screen described
in Section 8.9.
How to Access
Use the arrow keys to highlight the VLAN CLASSIFICATION CONFIGURATION menu item
on the 802.1Q VLAN Configuration Menu screen and press ENTER. The VLAN Classification
Configuration screen,
Screen Example

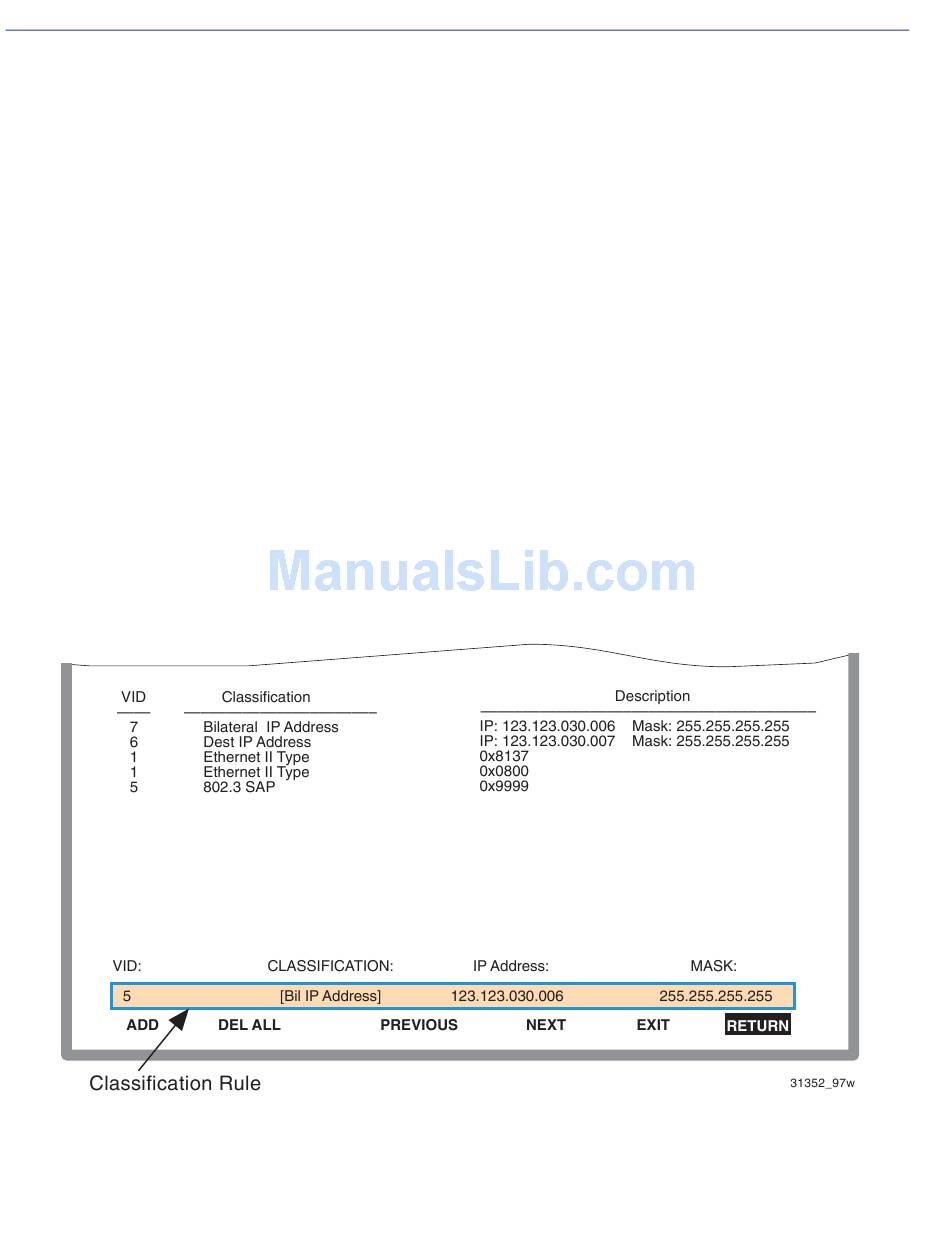

Figure 8-8 VLAN Classification Configuration Screen
Field Descriptions
Refer to Table 8-7 for a functional description of each screen field.
8-22 802.1Q VLAN Configuration Menu Screens
Figure 8-8, displays.
