Screen Example

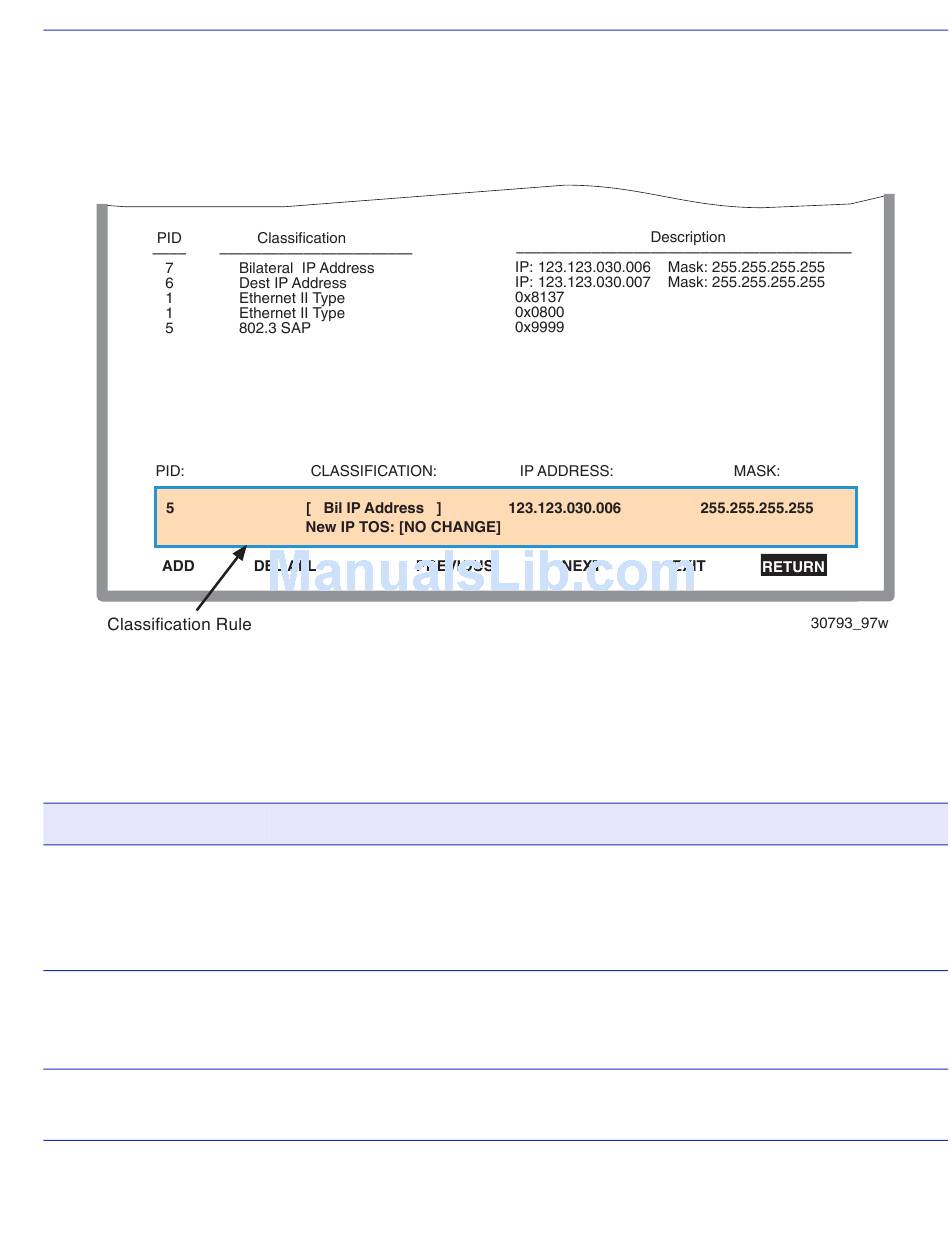

Figure 9-6 Priority Classification Configuration Screen
Field Descriptions
Refer to Table 9-6 for a functional description of each screen field.
Table 9-6 Priority Classification Configuration Screen Field Descriptions
Use this field ...
PID
– top of screen
(Selectable)
Classification
– top of screen
(Selectable)
Description
(Selectable)
To...
Display the Priority Identifiers (PIDs) currently associated with
protocol classifications. To see which ports are assigned to a
PID/Classification, or to add/remove a port from a PID/Classification,
used in the Protocol Port Configuration screen.
Display the classification associated with the priority in the PID
column, which may be selected to call up the Protocol Port
Configuration screen.
Provide a brief description of the classification.
Priority Classification Configuration Screen
802.1p Configuration Menu Screens 9-17
