Switch Statistics Screen Field Descriptions - Enterasys SmartSwitch 6000 User Manual

Screen Example

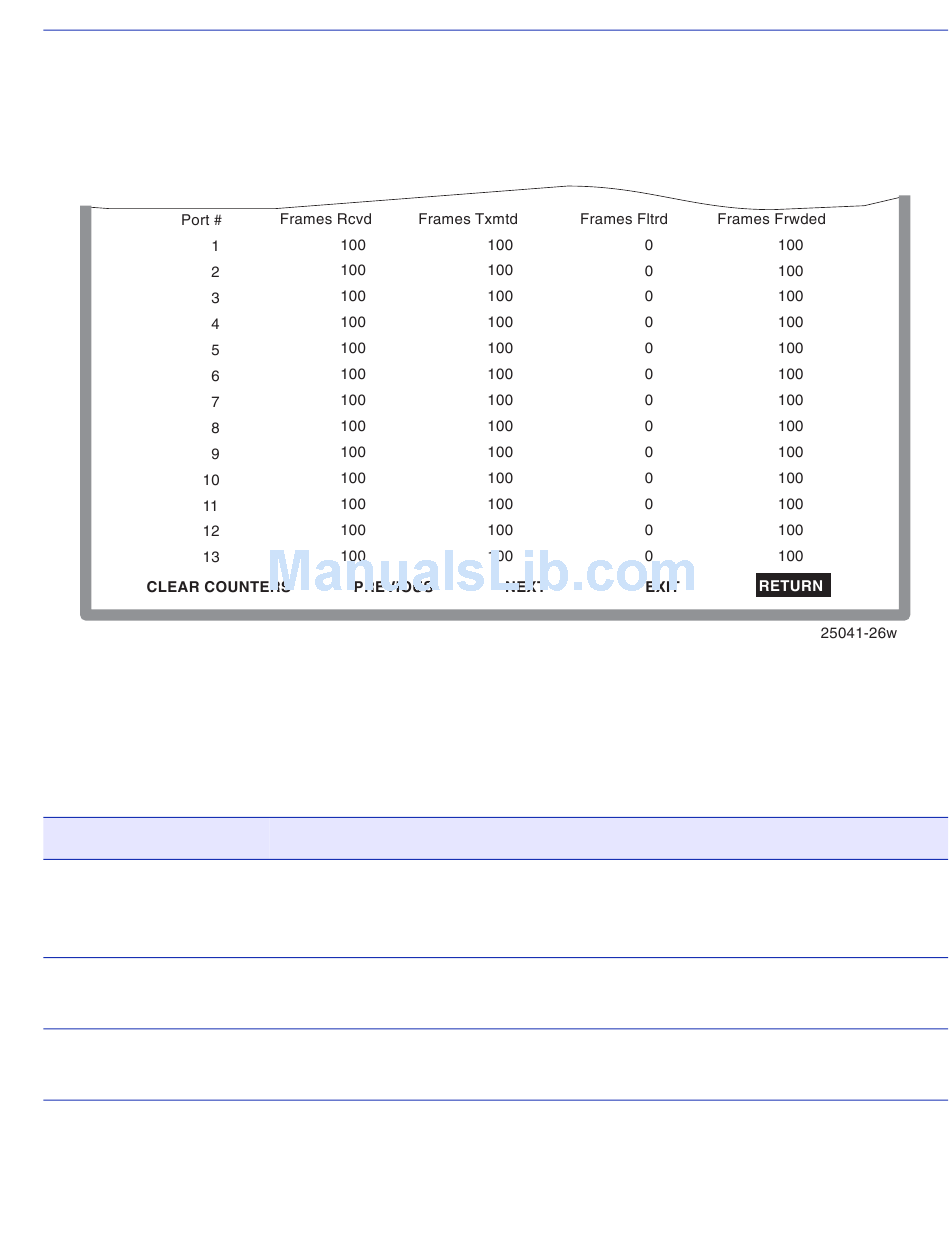

Figure 11-2 Switch Statistics Screen
Field Descriptions
Refer to Table 11-2
Table 11-2 Switch Statistics Screen Field Descriptions
Use this field...
Port #
(Read-Only)
Frames Rcvd
(Read-Only)
Frames Txmtd
(Read-Only)
for a functional description of each screen field.
To...
Identify the port number. The total number of ports is dependent on the
number of fixed10/100-Mbps front panel ports and the optional HSIM
or VHSIM installed.
See the number of frames received by the interface since the last
power-up or reset.
See the number of frames transmitted by the interface since the last
power-up or reset.
Switch Statistics Screen
Module Statistics Menu Screens 11-5
