Link Aggregation Screen (802.3ad Main Menu Screen)
6.8.1.2

802.3ad Port Statistics Screen

When to Use
To view all the port-related LACP parameters about a port instance shown in the 802.3ad Port
Details screen described back in Section 6.8.1.1.
How to Access
Use the arrow keys to highlight the STATS command in the 802.3ad Port Details screen and press
ENTER. The 802.3ad Port Statistics screen (Figure 6-11) displays. The figure shows an example
of how the details are displayed (in this example for Port Instance 2).
Screen Example

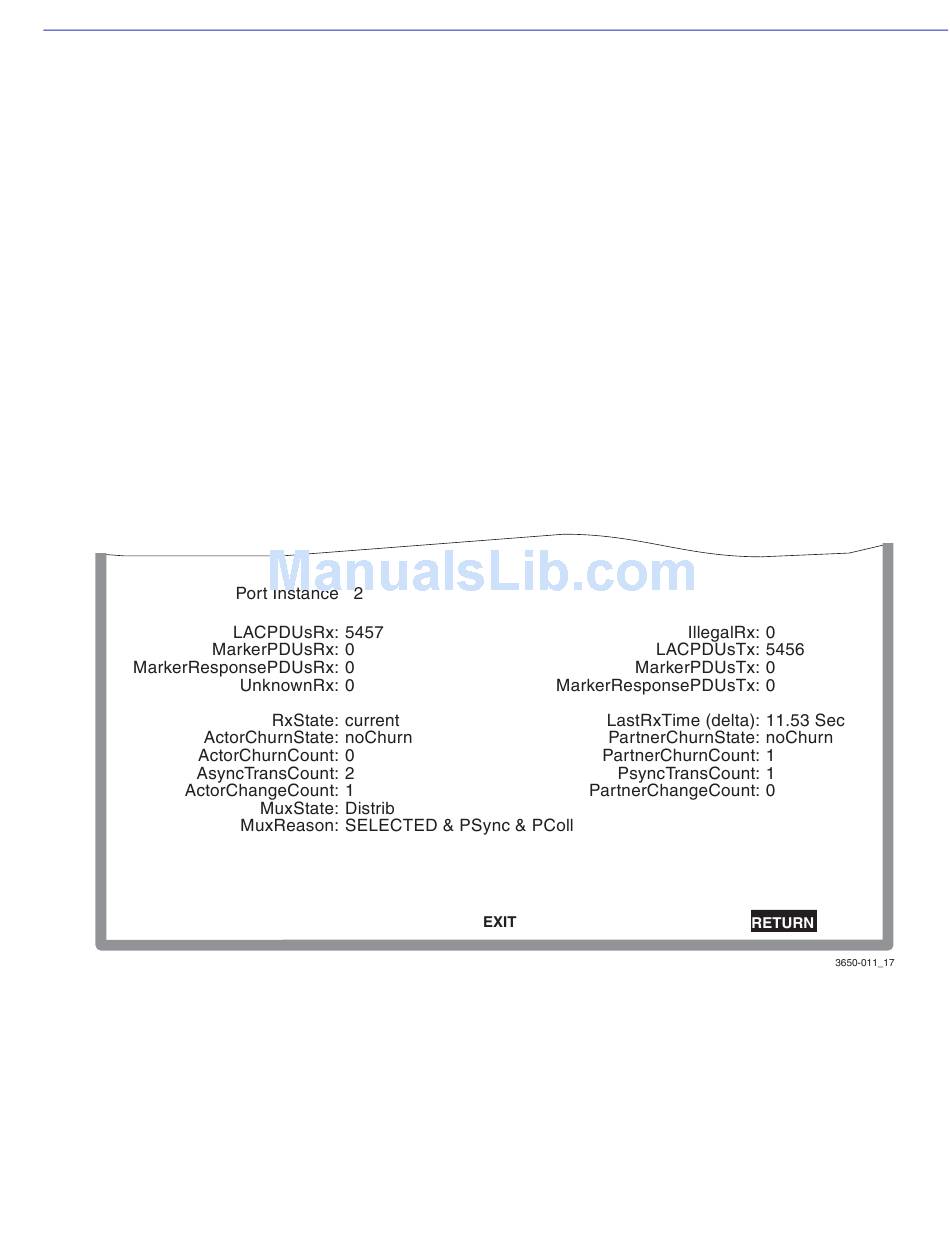

Figure 6-11 802.3ad Port Statistics Screen
Field Descriptions
Refer to Table 6-10 for a functional description of each screen field.
Port Configuration Menu Screens 6-37
