Current VLAN Egress Configuration Screen

8.6 CURRENT VLAN EGRESS CONFIGURATION SCREEN
When to Use
To see the egress settings of all ports associated with the VLAN ID selected from the Current
VLAN Configuration screen.
How to Access
Use the arrow keys to highlight the line item with the VLAN ID of interest on the Current VLAN
Configuration screen and press ENTER. The Current VLAN Egress Configuration screen,
Figure 8-6, displays, showing the egress setting of each port associated with the VLAN ID.
Screen Example

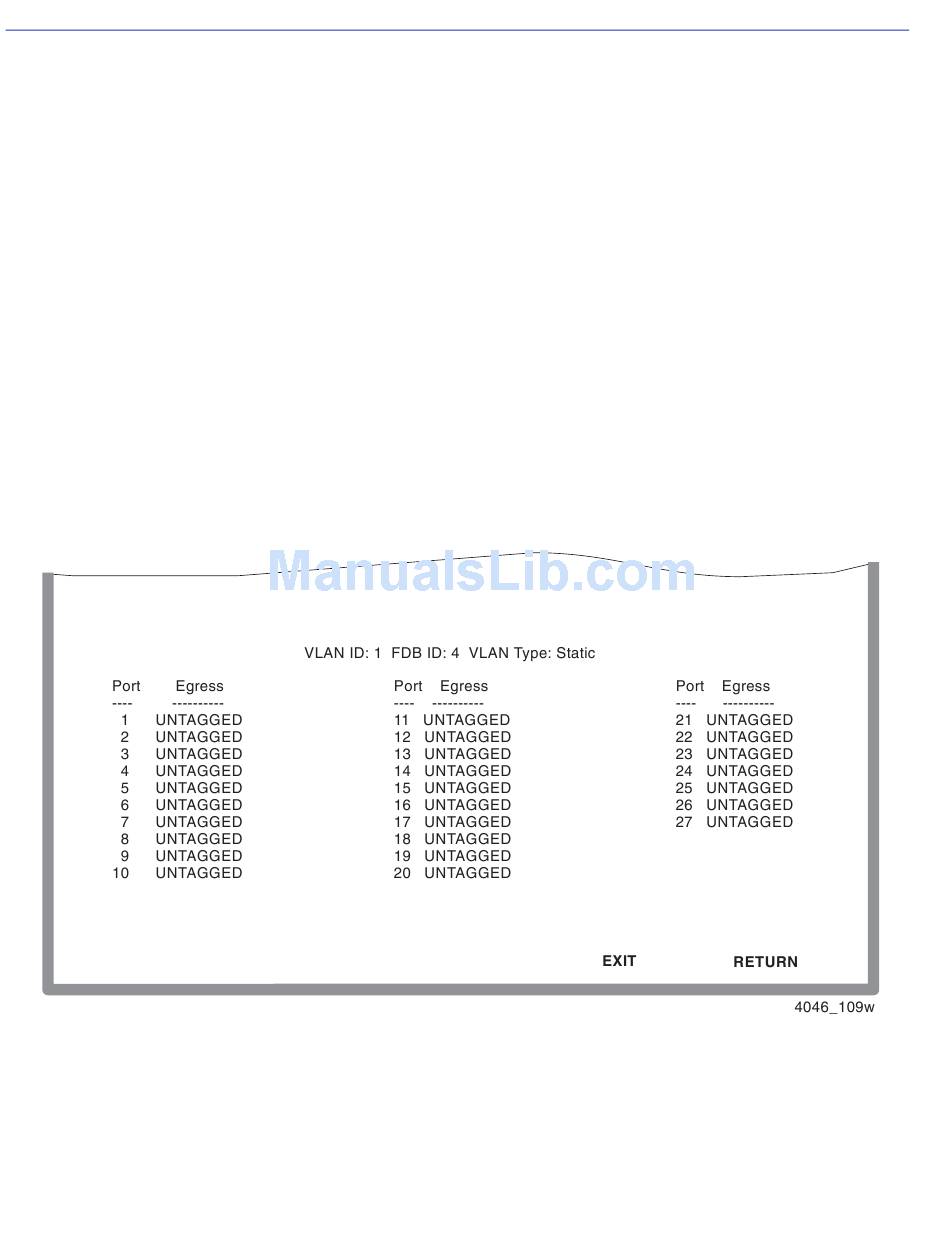

Figure 8-6 Current VLAN Egress Configuration Screen
8-16 802.1Q VLAN Configuration Menu Screens
