Viewing Status of Spanning Tree Ports

Ports and their status associated with an STP VLAN can be viewed, as follows:
1. Use the arrow keys to highlight the STP VLAN ID field near the bottom of the screen.
2. Use the SPACE bar to step to the appropriate STP VLAN ID and press ENTER. The ports, MAC
Address, port state, port status, age time, and number of ports associated with the STP VLAN
ID are displayed.
3. If there are more than eight ports associated with a VLAN, you can use the NEXT command at
the button of the screen to see the next eight ports.
7.5

PVST PORT CONFIGURATION SCREEN

When to Use
To change the configuration parameters of a selected PVST port.
How to Access
Use the arrow keys to highlight the port of interest on the Spanning Tree Port Configuration
screen, then press ENTER. The PVST Port Configuration screen,
Screen Example

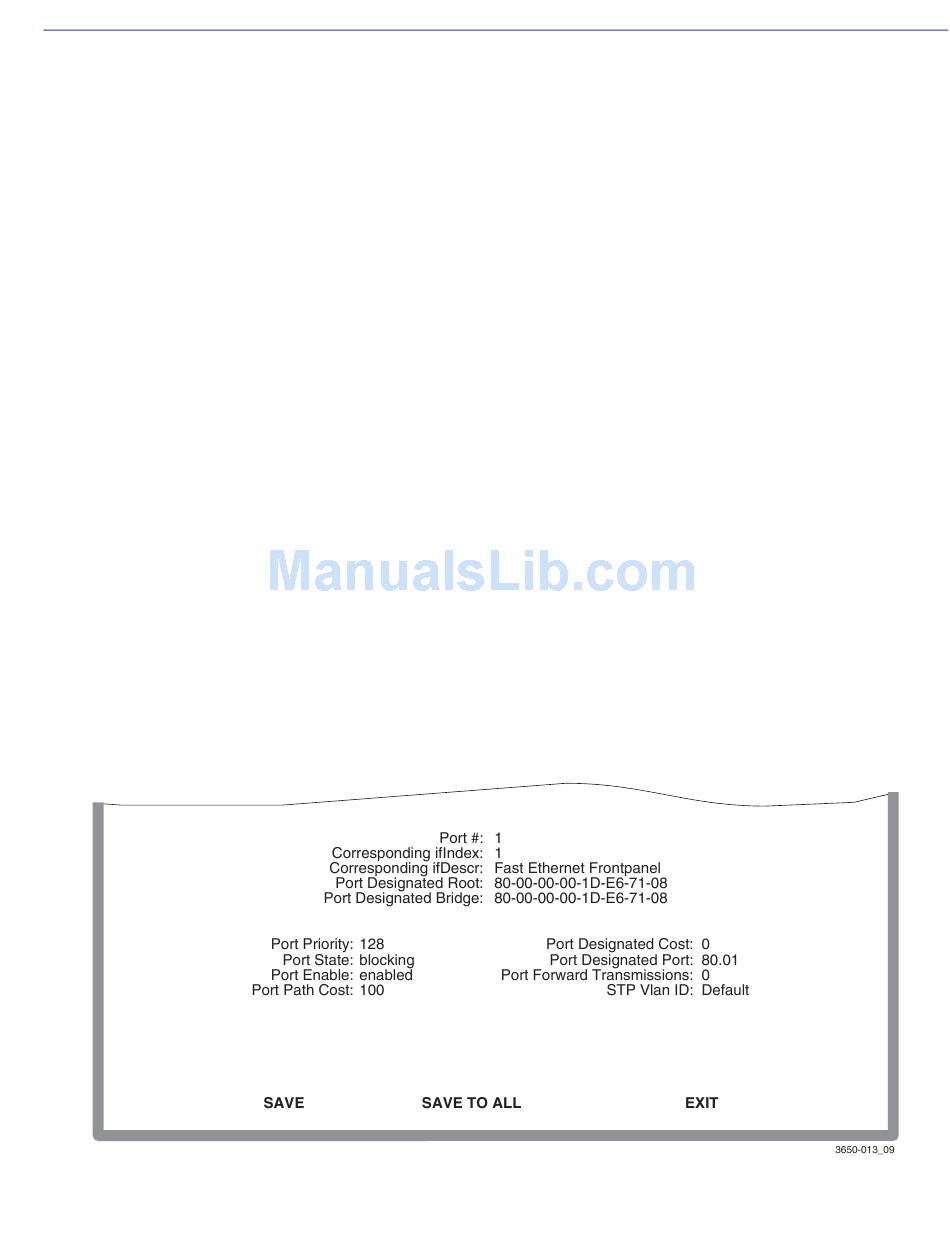

Figure 7-5 PVST Port Configuration Screen
PVST Port Configuration Screen
Figure 7-5, displays.
