Current VLAN Configuration Screen

8.5 CURRENT VLAN CONFIGURATION SCREEN
When to Use
To see the current VLANs and the associated FDB ID, VLAN type, and if the ports are on the
egress list. The egress list is how the switch keeps track of all VLANs that it will recognize.
How to Access
Use the arrow keys to highlight the CURRENT VLAN CONFIGURATION menu item on the
802.1Q VLAN Configuration Menu screen, and press ENTER. The Current VLAN Configuration
screen, Figure 8-5, displays.
Screen Example

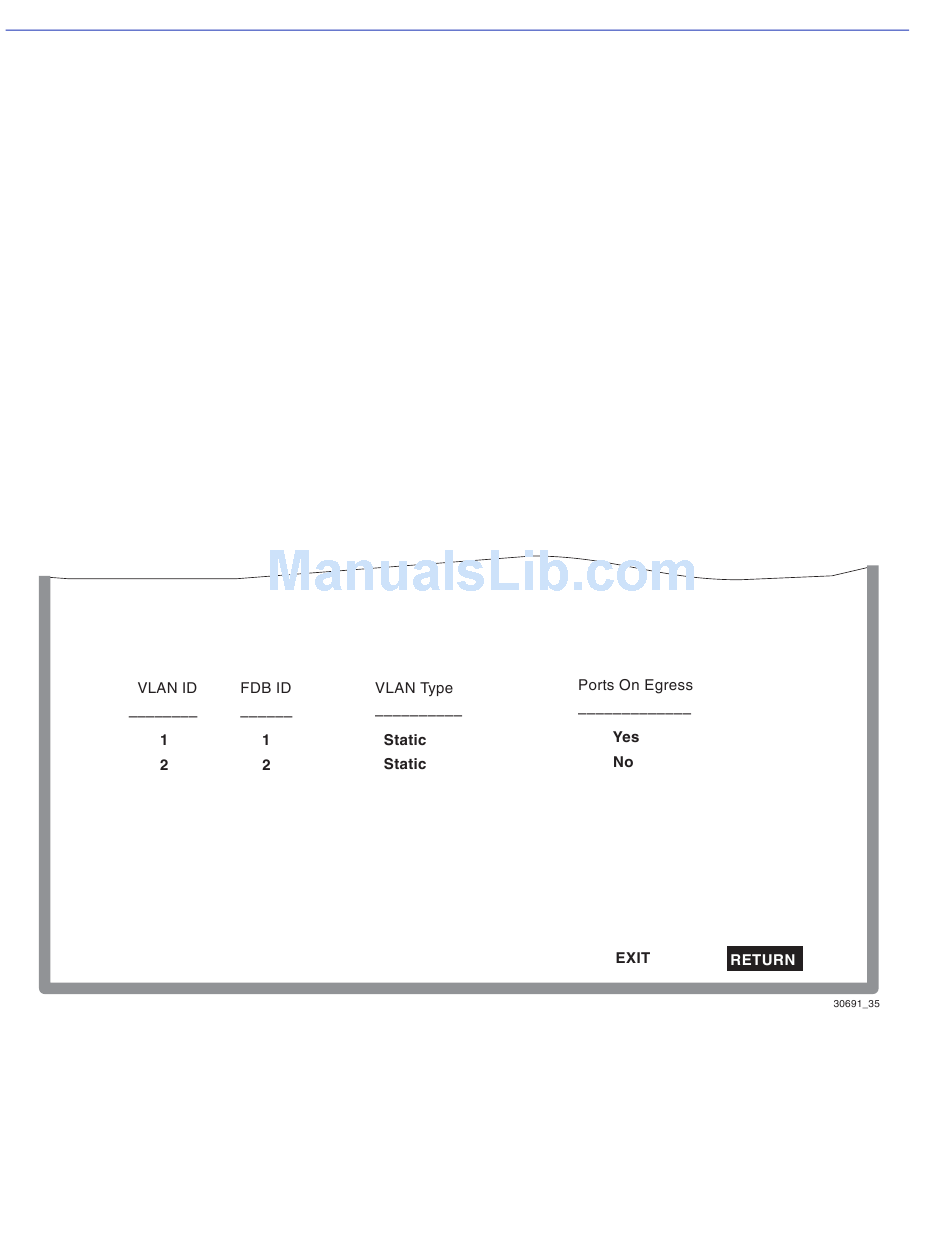

Figure 8-5 Current VLAN Configuration Screen
8-14 802.1Q VLAN Configuration Menu Screens
