Link Aggregation Screen (802.3ad Main Menu Screen)
6.8.2

802.3ad Aggregator Screen

When to Use
To see a summary of all the available aggregators and other basic information, including the
aggregator interface instance, operational key, system priority, and the number of ports currently
attached to the aggregator.
How to Access
Use the arrow keys to highlight the AGGREGATOR menu item in 802.3ad Main Menu screen
and press ENTER. The 802.3ad Aggregator screen,
Screen Example

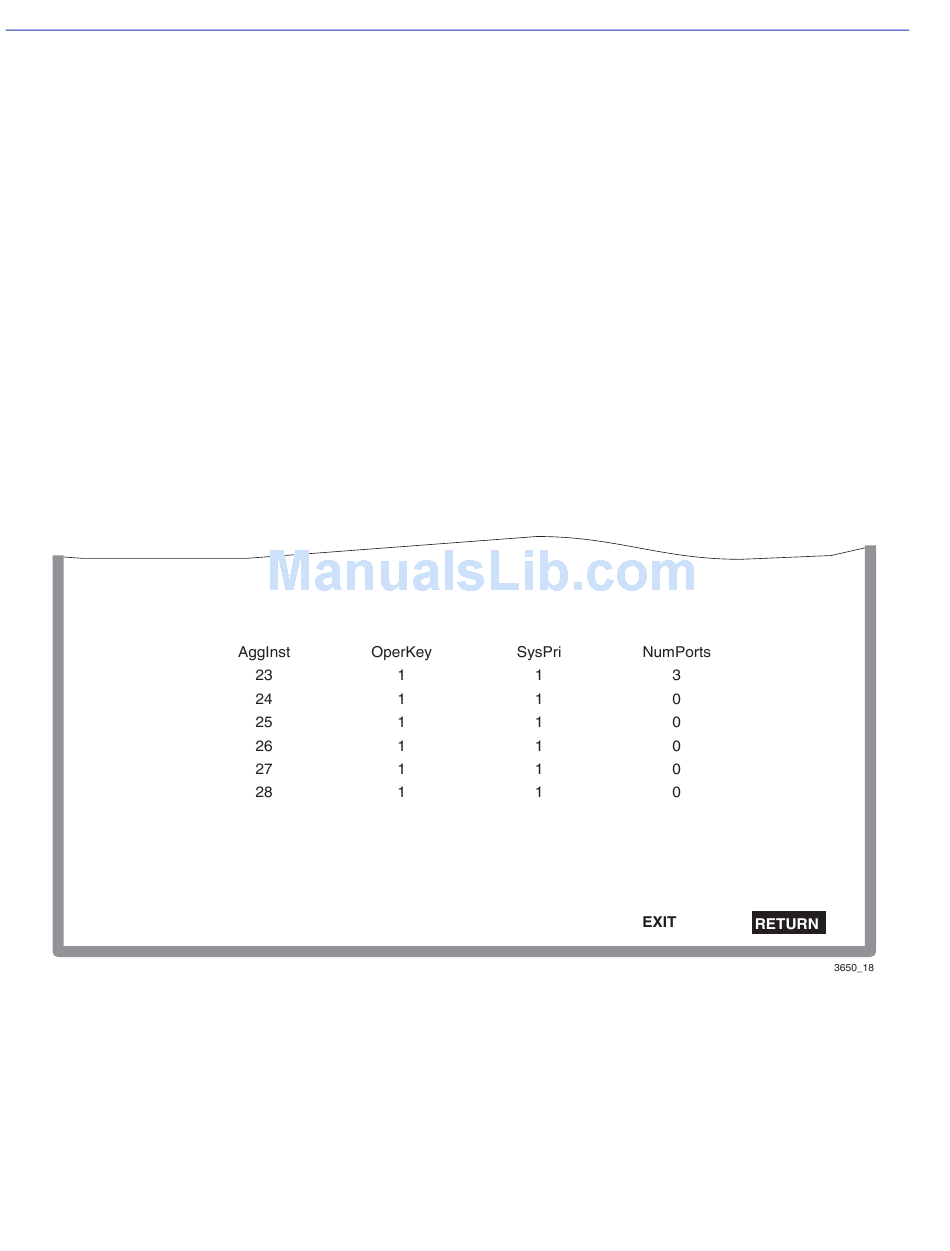

Figure 6-12 802.3ad Aggregator Screen
Field Descriptions
Refer to Table 6-11
6-40 Port Configuration Menu Screens
for a functional description of each screen field.
Figure 6-12, displays.
