3. Use the arrow keys to highlight SAVE at the bottom of the screen.
4. Press ENTER. The warning shown in

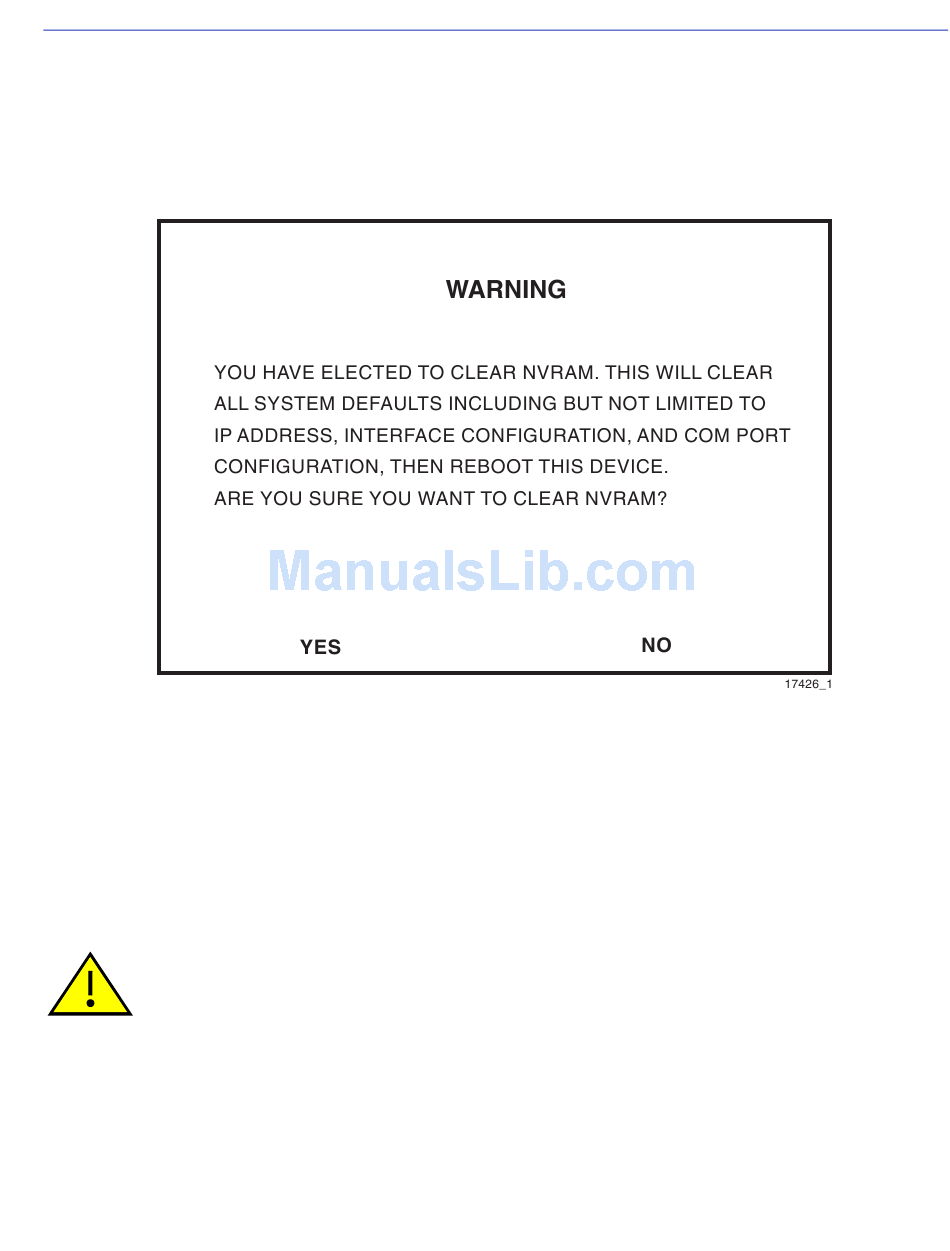

Figure 5-6 Clear NVRAM Warning
5. To clear the NVRAM, use the arrow keys to select YES and press ENTER. The message
"CLEARING NVRAM. REBOOT IN PROGRESS..." displays. The switch module clears
NVRAM and reboots. All user-entered parameters default to factory default settings.
5.2.12 Enabling/Disabling IP Fragmentation
To enable or disable IP Fragmentation, proceed as follows:
CAUTION: If the switch module is being bridged to an FDDI ring (for example, via an
optional HSIM-F6), IP Fragmentation should be enabled. If it is disabled, all FDDI
frames that exceed the maximum Ethernet frame size are discarded.
1. Use the arrow keys to highlight the IP Fragmentation field.
2. Press the SPACE bar to choose either ENABLED or DISABLED.
3. Use the arrow keys to highlight the SAVE command.
4. Press ENTER. The message "SAVED OK" displays.
Figure 5-6
displays.
Module Configuration Menu Screens
General Configuration Screen
5-17
