Physical Description

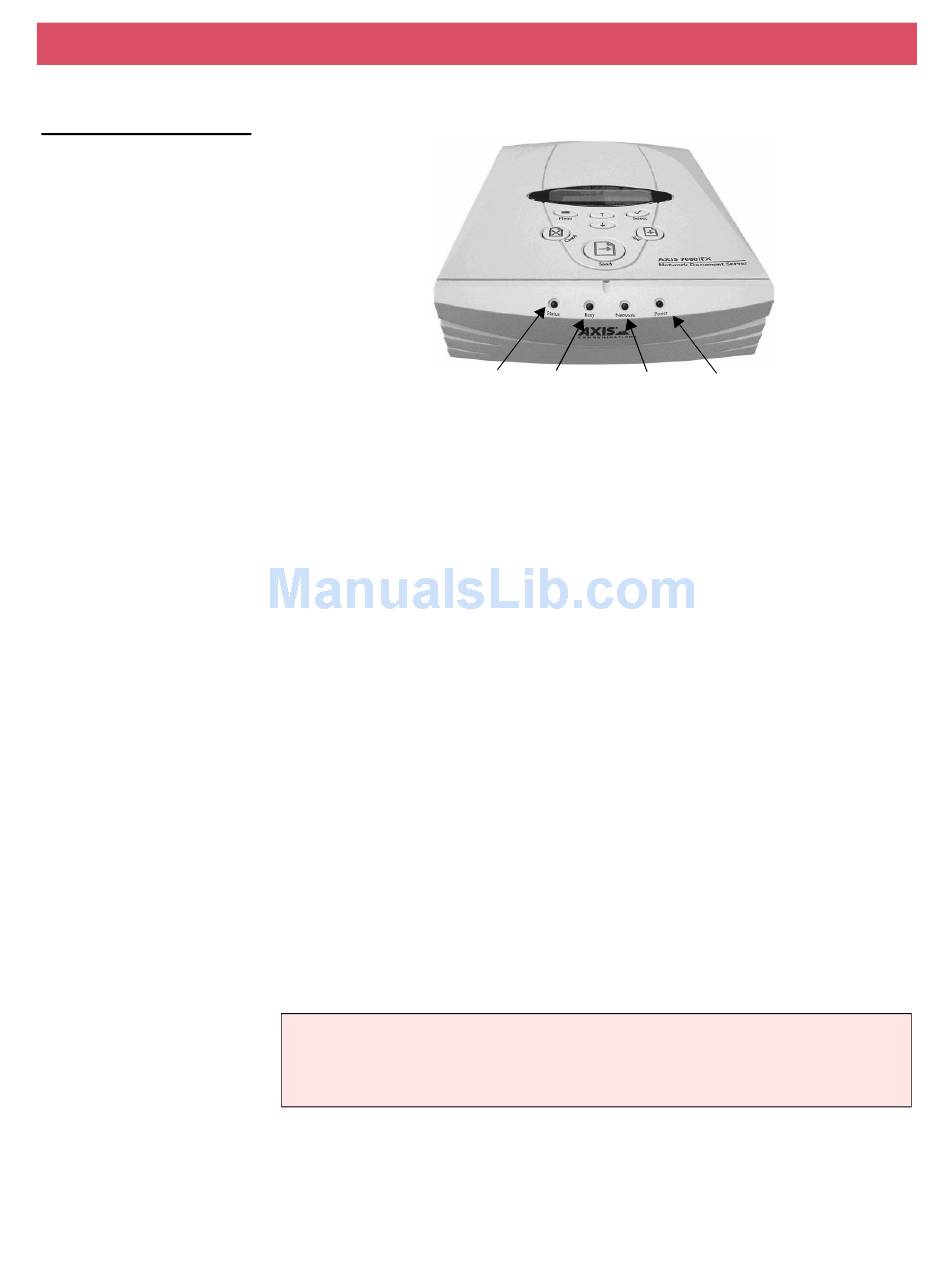

The Front Panel
Status Indicator
Busy Indicator
Network Indicator
Power Indicator
Status
Indicator
The front panel indicators show the status of the AXIS 7000/FX. The
function of each indicator is described below.
The Status indicator flashes during startup and remains lit when the
AXIS 7000/FX is ready for use. If the status indicator turns off, this
may indicate an error.
The Busy indicator turns on when the AXIS 7000/FX is allocated for
use and remains on during the scanning process.
The tri-colored Network indicator flashes:
yellow - indicating network activity on a 10MB Ethernet network.
green - indicating network activity on a 100MB Fast Ethernet network.
red - indicating that the unit is not correctly connected to the network.
The Power indicator is normally on while power is applied. If the
indicator remains off or flashes, this indicates a problem with the AXIS
7000/FX or its power supply.
Note:
When the AXIS 7000/FX is idle: the Power indicator should be on, the
Network indicator should flash randomly, the Busy indicator should be
off and the Status indicator should be permanently lit.
AXIS 7000/FX User's Manual
Busy Network Power
Indicator Indicator Indicator
