Installing Circuit
Cards
Installing the
Second Hard Disk
Installing the
External Disks
46
Check the Sun system to be loaded with APS to make sure that cards are
in the correct slots. The correct arrangement of cards in the Sun system is
shown in Figure 4.

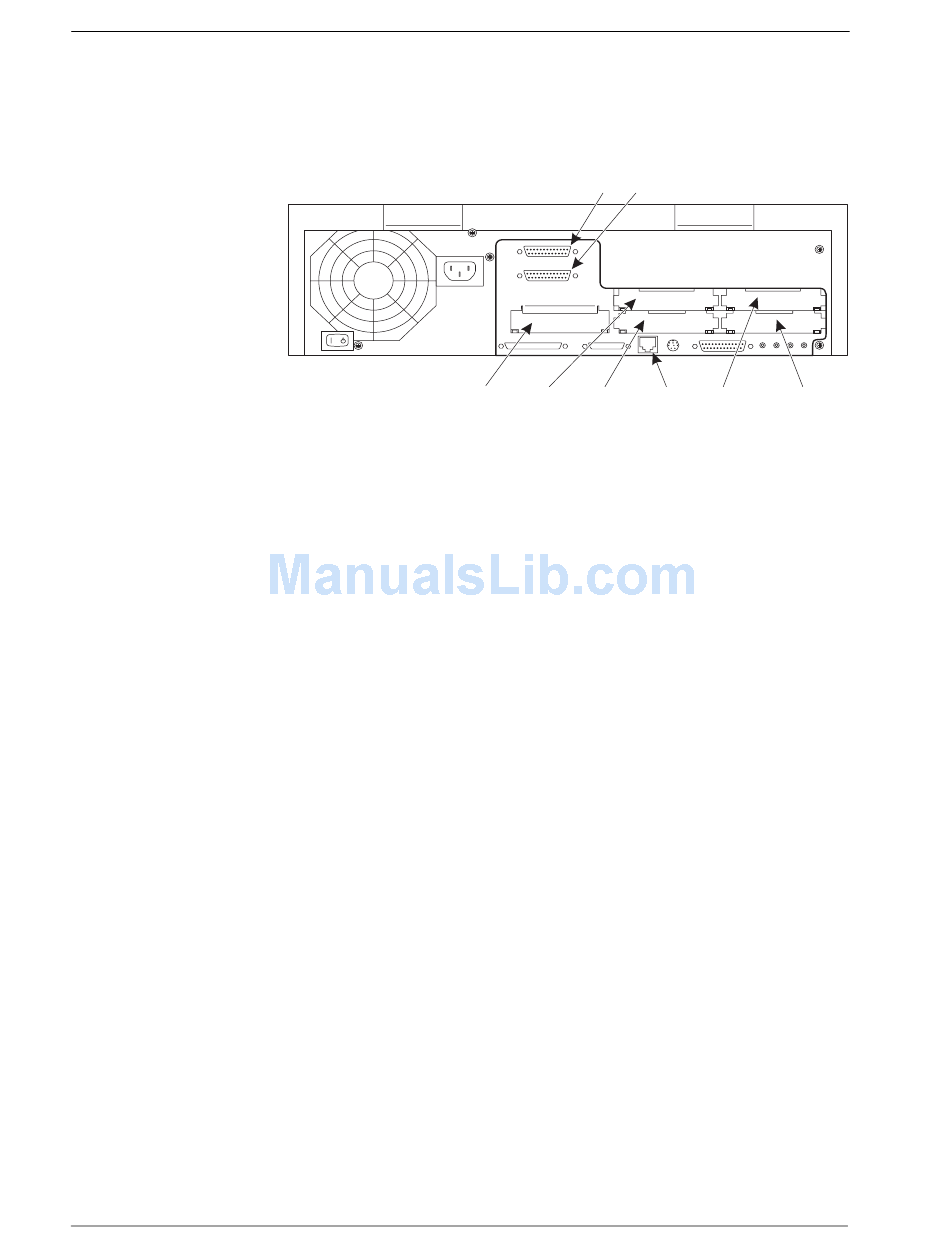

Figure 4. Rear Panel of the Sun Ultra 2 System
cpcvsun LJK 060399
Empty
If you have a new Sun system, it has one internal hard disk in it. APS
requires two internal hard disks. Use these steps to add another hard drive.
Refer to your Sun hardware documentation as necessary. There are no
terminators to set on the second hard disk.
1. Exit all software programs. (There should be no software loaded
at this point.)
2. Power down the Sun system.
3. Remove the cover.
4. Insert a 9 gigabyte hard disk into the second drive bay.
5. Replace the housing.
6. Power up the Sun system.
When the Sun reboots, the added drive is automatically numbered.
APS platform software requires that the external disks for the Sun system
be in specific slots in the A1000. This is because the drives must have
certain SCSI target numbers assigned to them. Sun assigns SCSI
designations automatically, depending on which slot the disk is in. Sun
configures the drives the same way every time.
A B
HSI Second Ethernet
slot card SCSI connection
controller
Video NewNet
card card
101-1830-001 Issue 1.0
