APS (Application Plus Server) 4.1 Users Guide

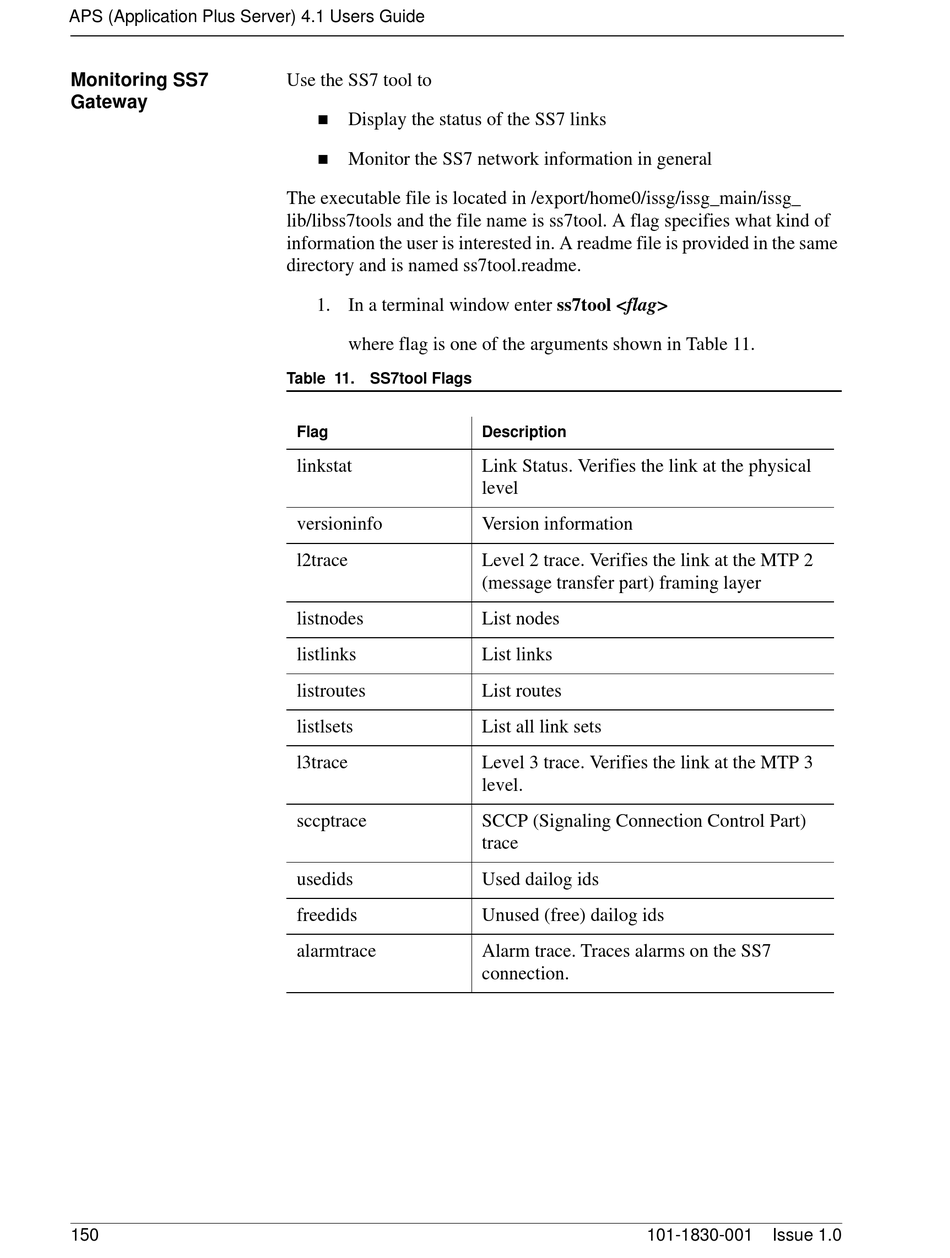

Monitoring SS7
Gateway
150
Use the SS7 tool to
n
Display the status of the SS7 links
n
Monitor the SS7 network information in general
The executable file is located in /export/home0/issg/issg_main/issg_
lib/libss7tools and the file name is ss7tool. A flag specifies what kind of
information the user is interested in. A readme file is provided in the same
directory and is named ss7tool.readme.
1. In a terminal window enter ss7tool <flag>
where flag is one of the arguments shown in Table 11.
Table 11. SS7tool Flags
Flag
linkstat
versioninfo
l2trace
listnodes
listlinks
listroutes
listlsets
l3trace
sccptrace
usedids
freedids
alarmtrace
Description
Link Status. Verifies the link at the physical
level
Version information
Level 2 trace. Verifies the link at the MTP 2
(message transfer part) framing layer
List nodes
List links
List routes
List all link sets
Level 3 trace. Verifies the link at the MTP 3
level.
SCCP (Signaling Connection Control Part)
trace
Used dailog ids
Unused (free) dailog ids
Alarm trace. Traces alarms on the SS7
connection.
101-1830-001 Issue 1.0
