Adjusting the Tracking

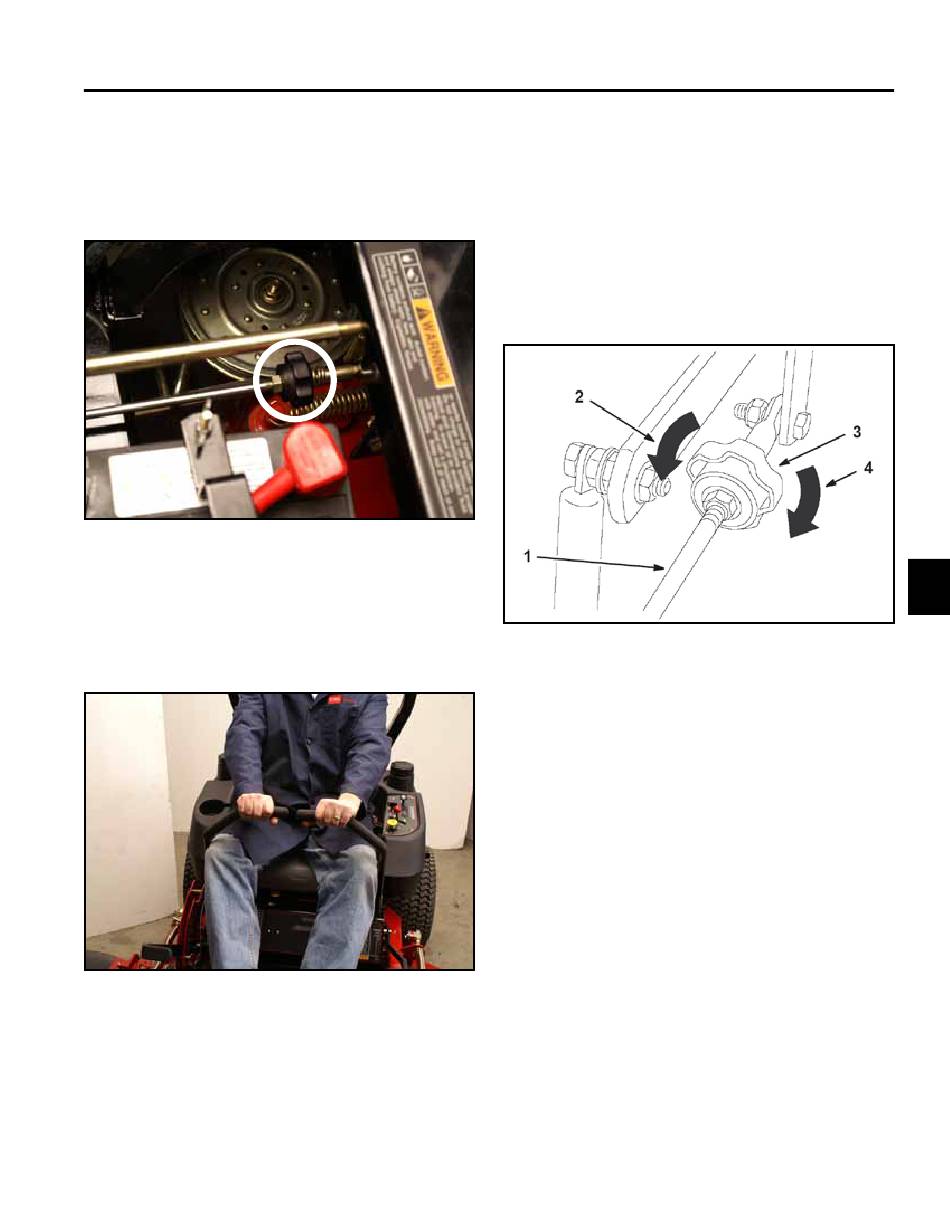

The left hand pump has a knob for adjusting the tracking
(Fig. 198).
Fig 198
1. Push both control levers forward the same distance
(Fig. 199). The machine should travel in a straight
line. If not, proceed to step 2.
Fig 199
Z Master Z400 Service Manual
HYDRAULIC SYSTEM
2. Stop the machine and set the parking brake.
3. Unlatch the seat and tilt the seat forward to access
the tracking knob.
Note: Determine the left and right sides of the
machine from normal operating position.
4. To make the machine go right, turn the knob towards
the right side of the machine (Fig. 200).
PICT-0015a
1. Pump rod
2. Turn this way to
track left
5. To make the machine go left, turn the knob towards
the left side of the machine (Fig. 000, above)
6. Repeat this adjustment until the tracking is correct.
PICT-0018a
Fig 200 fig. 57 m-6280
3. Tracking knob
4. Turn this way to
track right
