5. Software Control - Lightware Device Controller

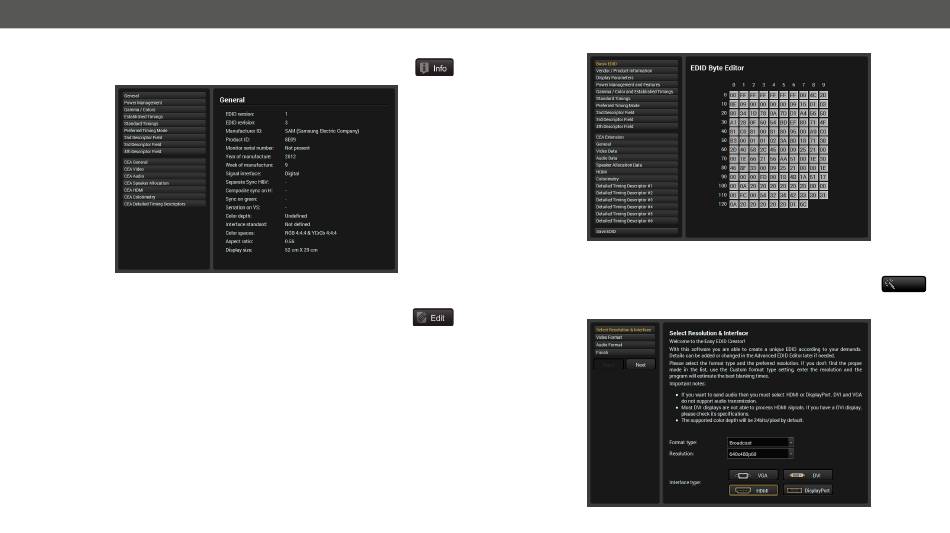

5.8.2. EDID Summary Window
Select an EDID from the Source panel and press the Info button to display the EDID summary.
5.8.3. Editing an EDID
Select an EDID from the Source panel and press the Edit button to display the Advanced EDID
Editor window. The editor can read and write all descriptors that are defined in the standards,
including the additional CEA extensions. Any EDID from the device's memory or a saved EDID file can be
loaded into the editor. The software resolves the raw EDID and displays it as readable information to the
user. All descriptors can be edited, saved in an EDID file, or uploaded to the User memory. For more details
about EDID Editor, please visit our website (www.lightware.com) and download the
note.

EDID summary window

EDID Editor Application
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.8.4. Creating an EDID - Easy EDID Creator
Since the Advanced EDID Editor mentioned above needs more complex knowledge about
EDID, Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy
EDID Creator, it is possible to create custom EDIDs in four simple steps. For more details about EDID Editor,
please visit our website (www.lightware.com) and download the
EDID Editor window
EDID Editor Application note.
51
A
Create
