4.3.2. The Autoselect feature

There are three types of Autoselect as follows:
INFO
An input port is active if there is a valid signal on it.
INFO
The input ports, where the priority is set to 31 will not be scanned.
Page 22 / 119

First detect mode: Selected input port is kept connected to the output while it has an
active signal.

Priority detect mode: Always the highest priority active input is selected to transmit.

Last detect mode: Always the last attached input is selected to transmit.

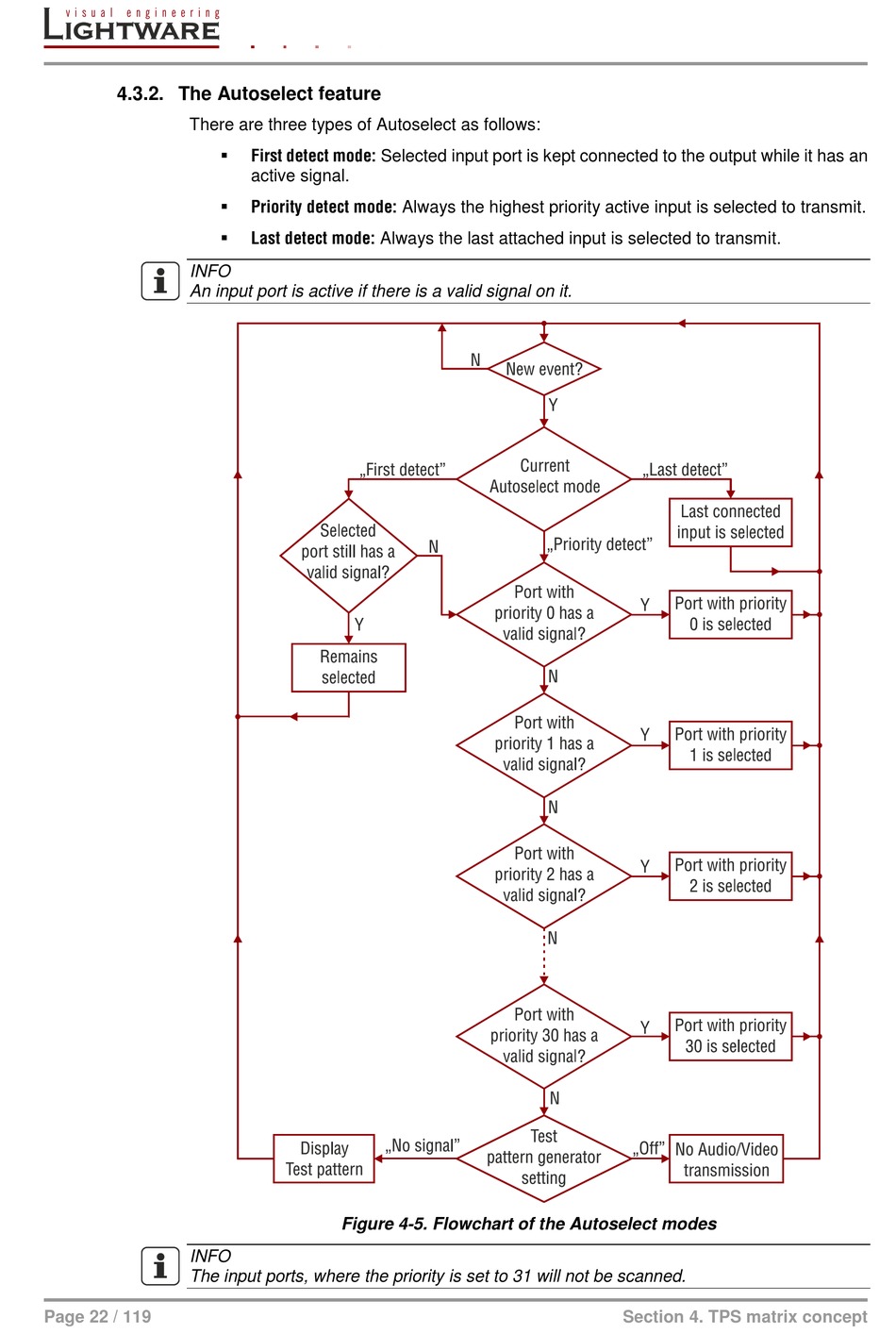

Figure 4-5. Flowchart of the Autoselect modes
