Troubleshooting; Special Jack Error Codes; Zero Point Calibration - Lippert Components Ground Control 2.0 Master Owner's Manual

Zero Point Calibration

The "Zero Point" is the programmed point that the unit will return to each time the Auto Level feature is
used. The "Zero Point" must be programmed prior to using the Auto Level feature to ensure the proper
operation of the system.
NOTE: Prior to starting this procedure, double check all connections on the controller, jacks and touch pad.
1. Manually run the jacks to level the unit. This is best achieved by placing a level in the center of the unit
and leveling it both front to back and then side to side. (See "Basic Jack Operation" for instructions on
how to manually operate the system).
2.
Once the unit is level, turn off the touch pad.
3. With the touch pad off, press and release the "FRONT" button 10 times and then press and release the
"REAR" button 10 times.
4.

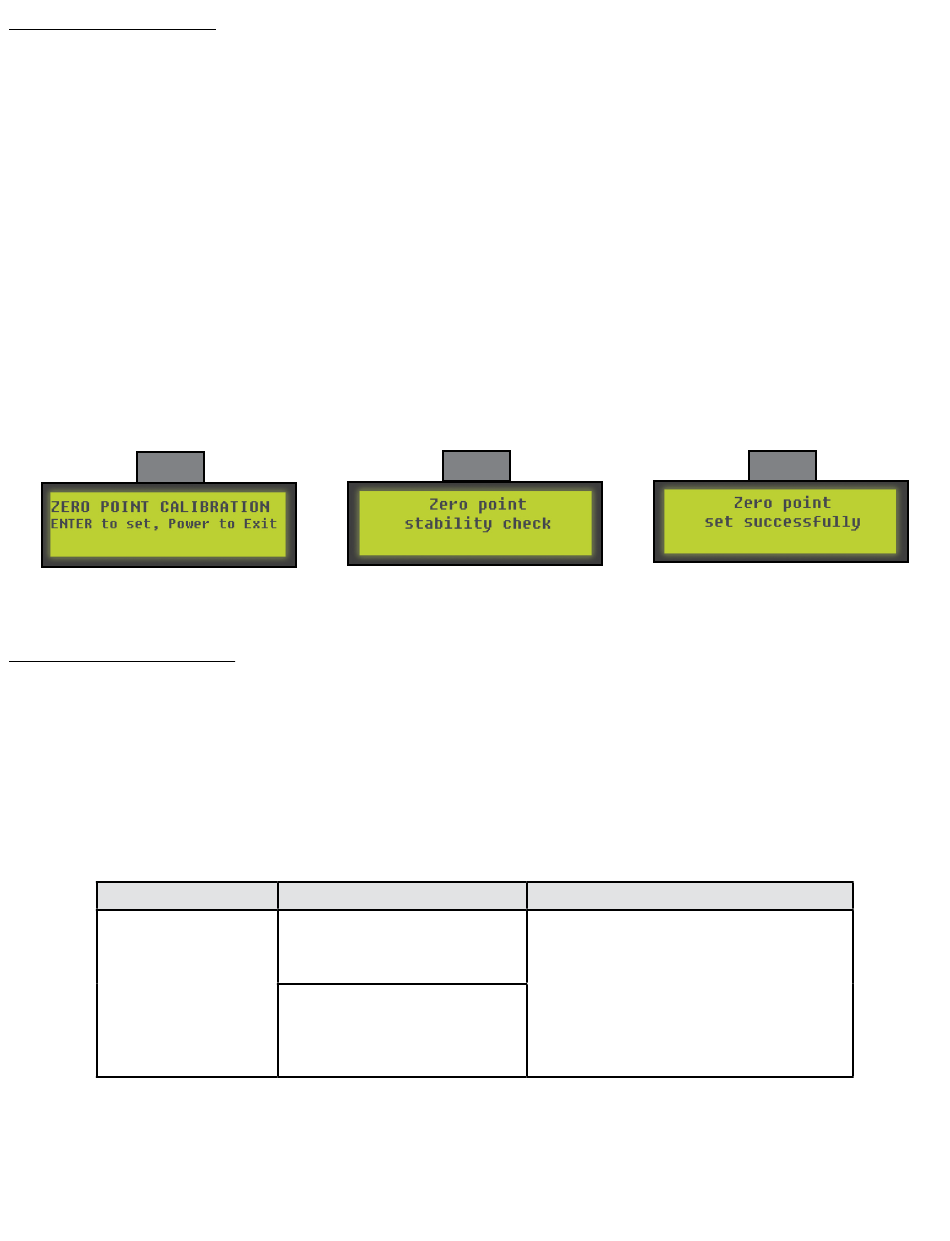

The touch pad will flash and beep and the display will read "ZERO POINT CALIBRATION ENTER to set,
Power to Exit" (Fig. 5).
5.
To set the current position as the zero point, press the "ENTER" button.
6.
LCD display will read "Zero Point stability check" (Fig. 6).
7.
LCD display will read "Zero point set successfully" once process is complete (Fig. 7).
8. The system will set this point as its level state and the touch pad will turn off.
Fig. 5

Troubleshooting

Special Jack Error Codes

To clear one of these errors:
1.
Correct or otherwise repair the issue (see the table below).
2. Extend all of the jacks at least 6 inches, then press and hold the "RETRACT" button on the touch pad
until the jacks begin retracting.
3.
All of the jacks will retract fully to clear the error.
NOTE: Landing gear will also retract at this time. Ensure the 5th wheel hitch pin is supported by either the
tow vehicle or a tripod stand.
LCD Message
***ERROR***
LF Jack
RF Jack
LM Jack
RM Jack
LR Jack
RR Jack
Rev:11.08.19
Fig. 6
What's Happening?
Error at a specific jack
(left front, right front,
left rear, right rear).
Unexpected high
amp current stall.
Page 14
What Should Be Done?
Check harness connections
at controller and at jack. Check
jack for damage. Check harness
for damage. Repair or replace
as necessary.
Fig. 7
CCD-0001573-08
