Touch Panel Diagram - Myrv Onecontrol Touch Panel - Lippert Components Ground Control 2.0 Master Owner's Manual

Touch Panel Diagram - myRV OneControl Touch Panel

Jack Buttons
in Manual Mode
See Fig. 3
A
Callout
A
B
C
D
E
F
G
H
I
J
K
L
M
Rev:11.08.19
A
Description
Jack Buttons - Select front, rear, right and left jacks to be operated depending on
mode. Jacks available to be operated will be highlighted in blue. In Standard Mode
(Fig. 2), only front and rear jacks are available to be operated. In Manual Mode (Fig.
3), all jacks are available to be operated.
Up and Down Arrows - Scrolls through options on screen.
Info - Displays system information, e.g. angle, jack stroke or software version.
Connected Icon - Press 6 times to program zero point/ wireless configurations.
Home Icon - Returns screen to home page.
Auto Retract - Enters Auto Retract mode to retract all jacks.
Manual Mode - Enters Manual Mode to manually operate jacks.
Enter - Push to select various modes.
Retract - Retracts jacks in several modes. Jacks available will be highlighted in blue.
Extend - Extends jacks in several modes. Jacks available will be highlighted in blue.
Power Button - Turns touch panel on and off.
Auto Level - Starts the Auto Level sequence.
Auto Hitch - Returns trailer to previous hitch height for reconnecting to tow vehicle.

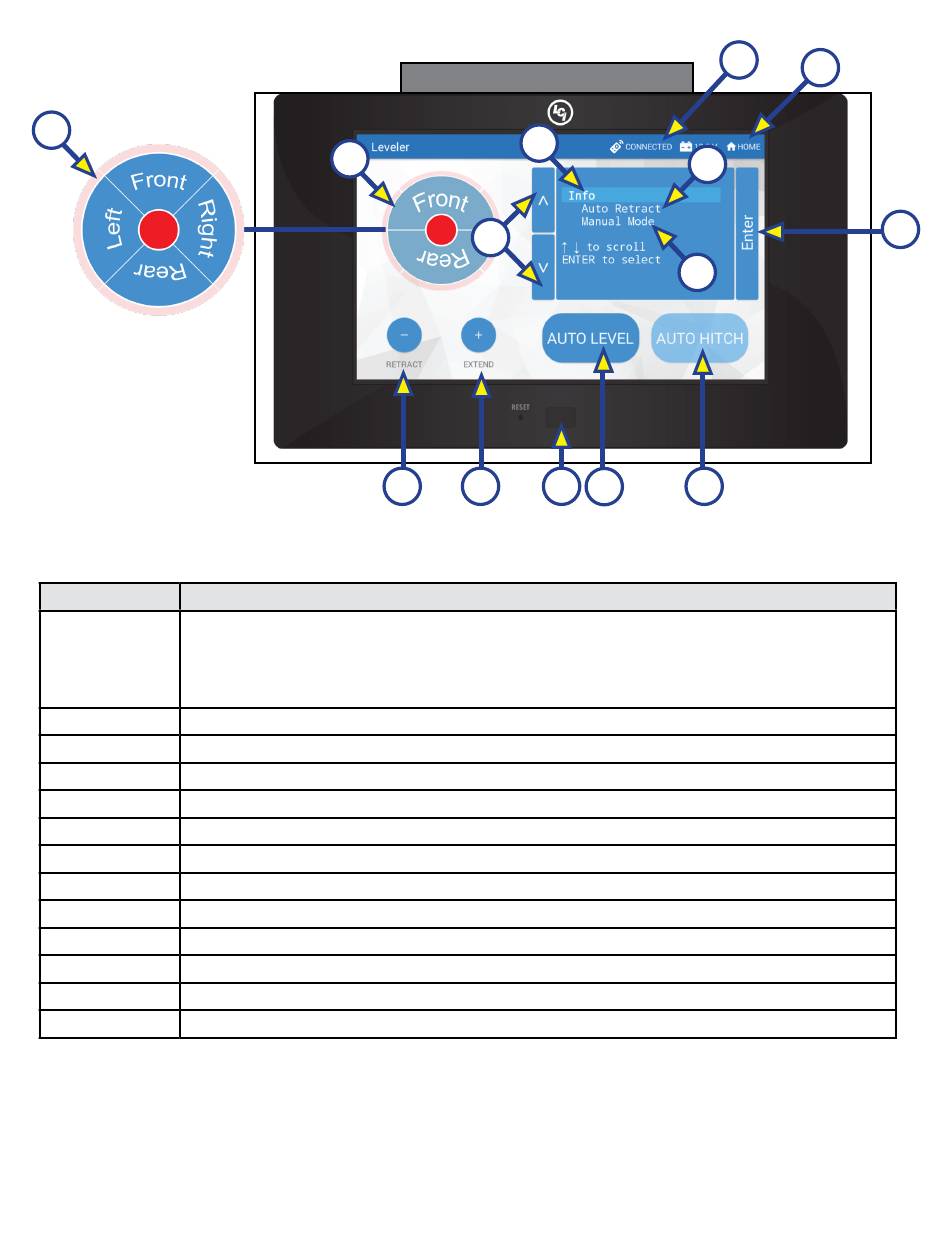

Fig. 2 - Leveling Standard Mode
