Touch Pad Diagram - Lippert Components Ground Control 2.0 Master Owner's Manual

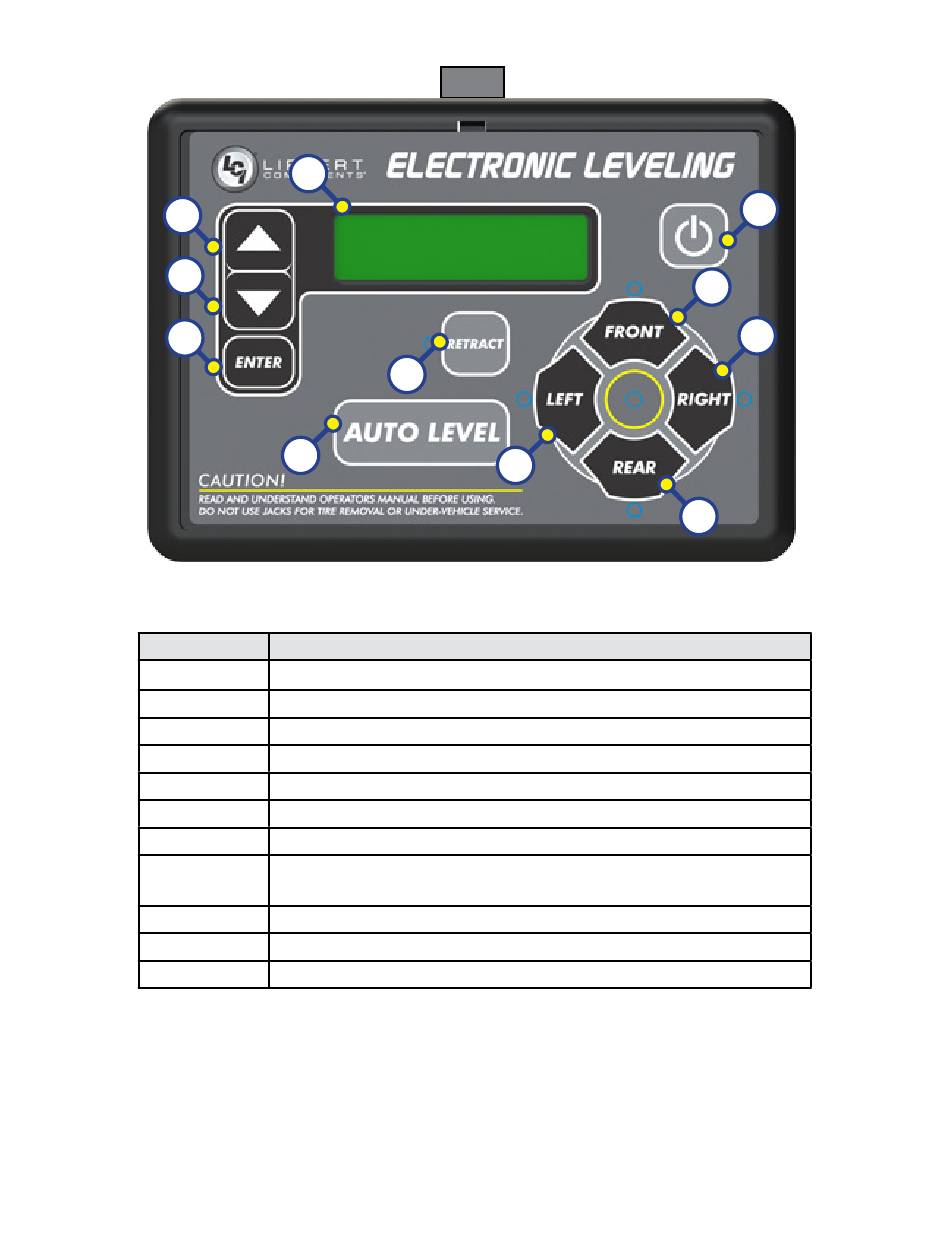

Touch Pad Diagram

A
B
C
Callout
Rev:11.08.19
D
F
Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C Enter - Activates modes and procedures indicated on LCD.
D LCD Display - Displays procedures and results.
E Retract - Places leveling system into retract mode.
F Auto Level - Places leveling system into auto level mode.
G Power Button - Turns leveling system on and off.
Front Jack Button - Activates tongue jack in standard mode
H
I Left Jack Button - Activates left jacks in manual mode.
J Right Jack Button - Activates right jacks in manual mode.
K Rear Jack Button - Activates rear jacks in manual mode.
Fig. 1
E
I
- Activates front jacks in manual mode.
