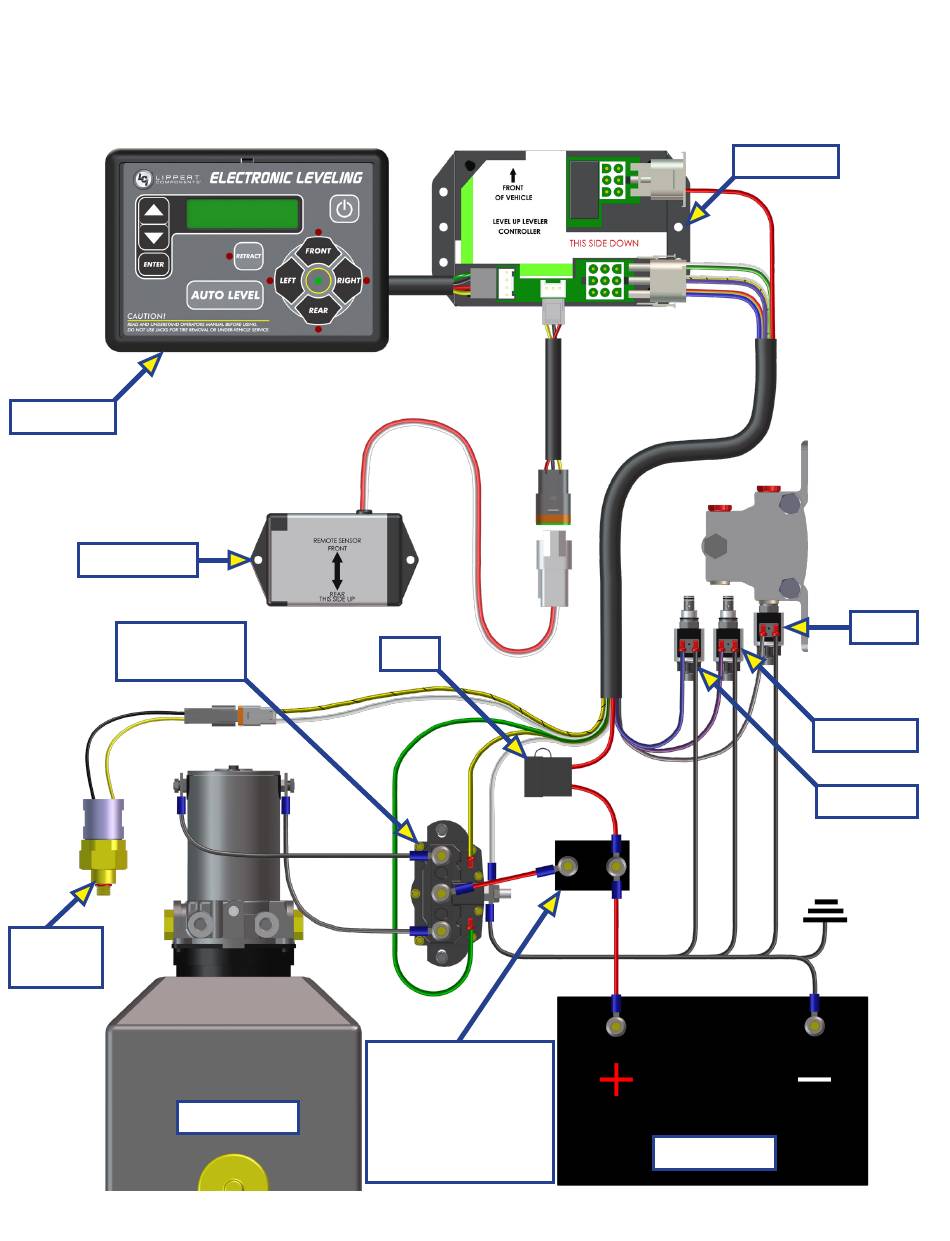

6-Point Wiring Diagram

Touchpad
Rear Sensor
Dual Polarity
Solenoid
Pressure
Switch
Rev:11.08.19
Power Unit
Fuse
Circuit Protection
requirement is 50-
100 A as needed by
RVIA standards and
OEM requirements.
Page 154
Controller
Valve
Road Side
Curb Side
Battery
CCD-0001573-08
