1.6
Basic rule
Switches and
buttons
Maintenance manual
GMK7450

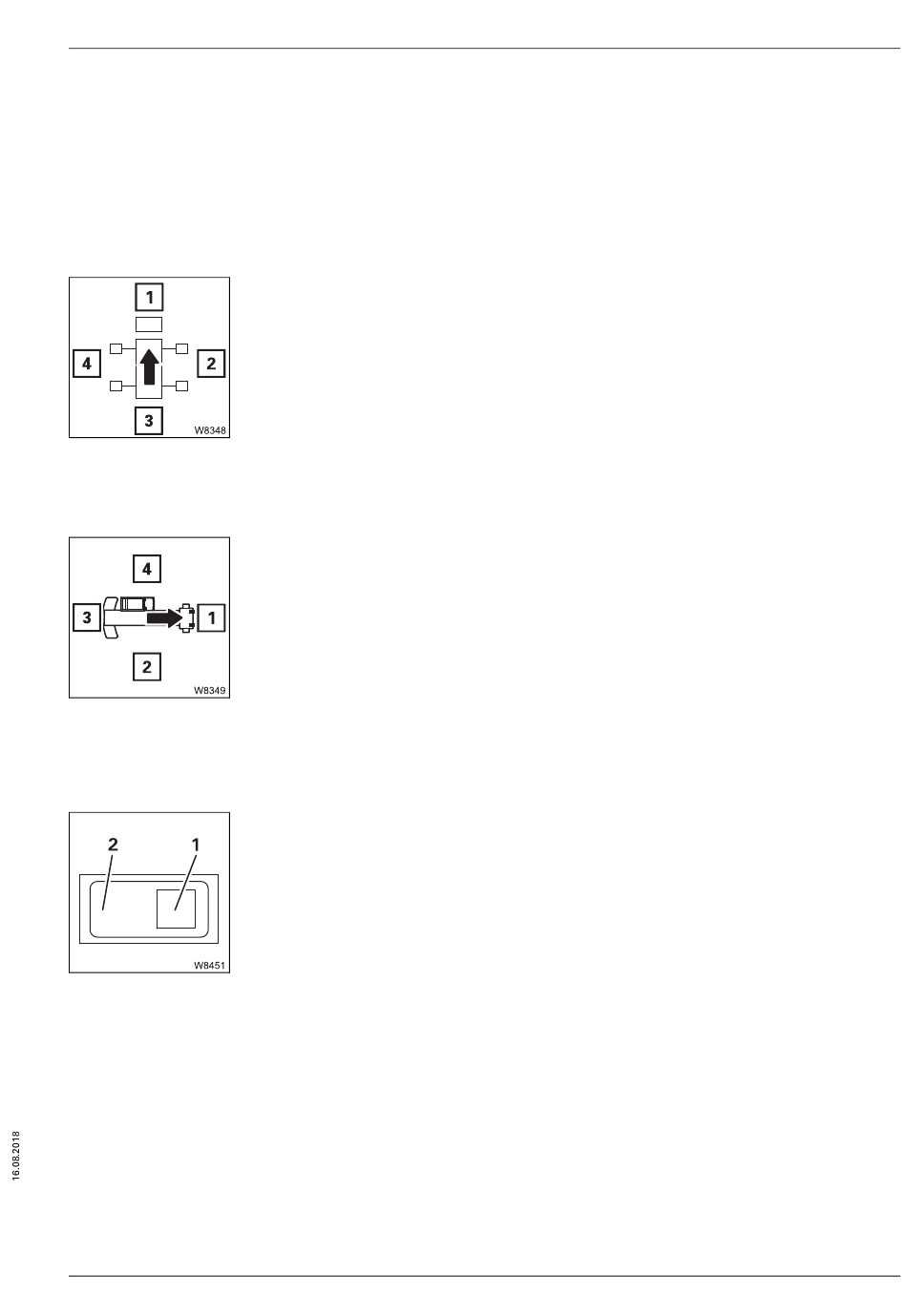

Definition of direction references

Directions always depend on whether the carrier or the superstructure is
being operated.
On the carrier
The driver's cab is always at the front, which means that:
1: front
3: rear
Forwards always means with driver's cab leading,
Backwards always means the rear lights on the carrier are to the front.
On the superstructure
The main boom head is always at the front, which means that:
1: front
3: rear
For switches and buttons, the terms at the bottom and at the top are used.
Regardless of the fitting position (vertical, horizontal, diagonal, transverse
or turned), the following always applies:
At the bottom: press in at (1) – next to the symbol
At the top: press in at (2) – opposite the symbol
2: right
4: left
2: right
4: left
3 302 577 en
General instructions
1.6 Definition of direction references
1 - 5
