Maintenance work on the carrier
7.4 Fuel system
7.4.1
Spare parts and
tools
Prerequisites
Draining off water
O
7 - 28

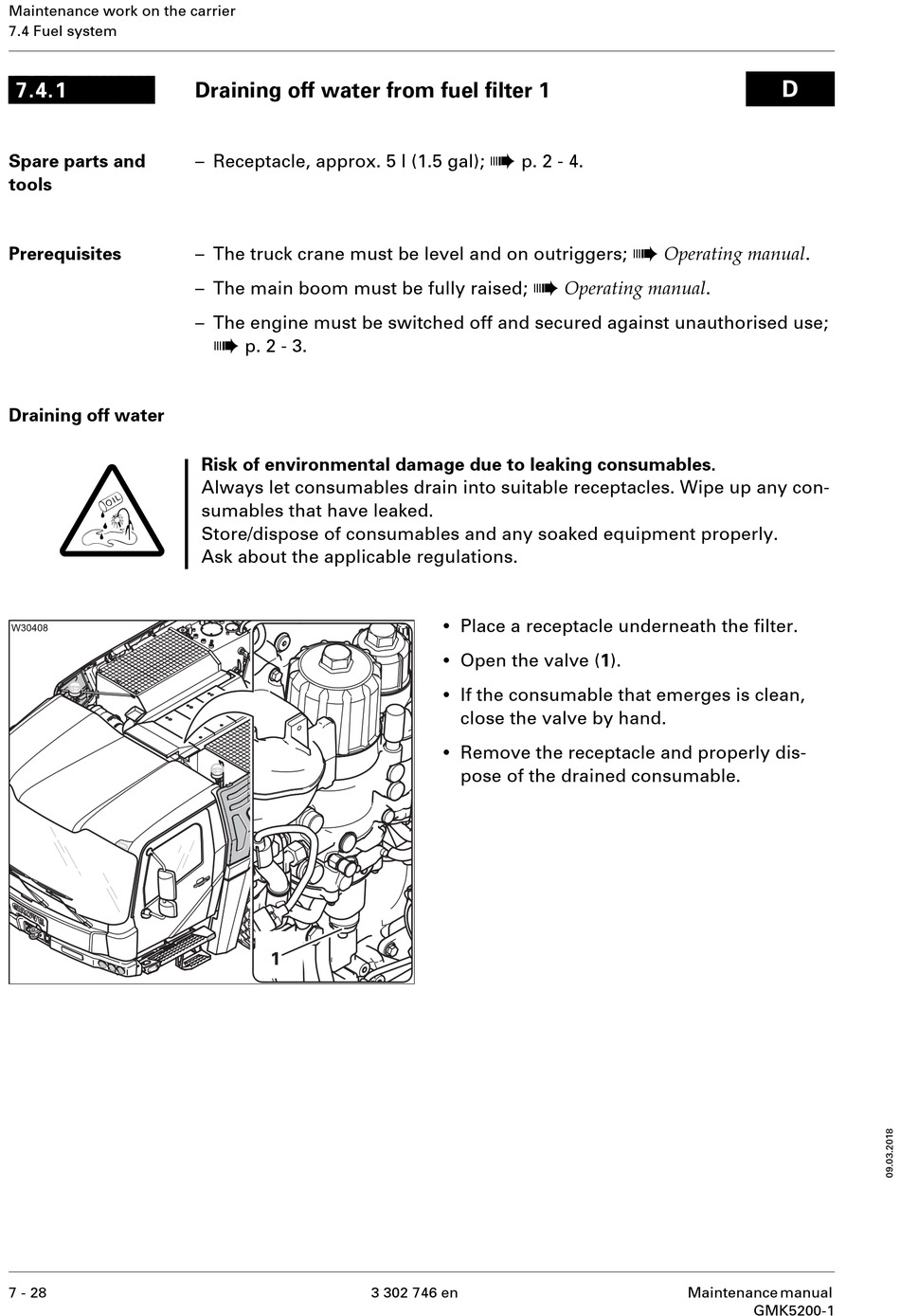

Draining off water from fuel filter 1

– Receptacle, approx. 5 l (1.5 gal);
– The truck crane must be level and on outriggers;
– The main boom must be fully raised;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
à
p. 2 - 4.
à
•
Place a receptacle underneath the filter.
•
Open the valve (1).
•
If the consumable that emerges is clean,
close the valve by hand.
•
Remove the receptacle and properly dis-
pose of the drained consumable.
3 302 746 en
à
Operating manual .
Operating manual .
Maintenance manual
D
GMK5200-1
