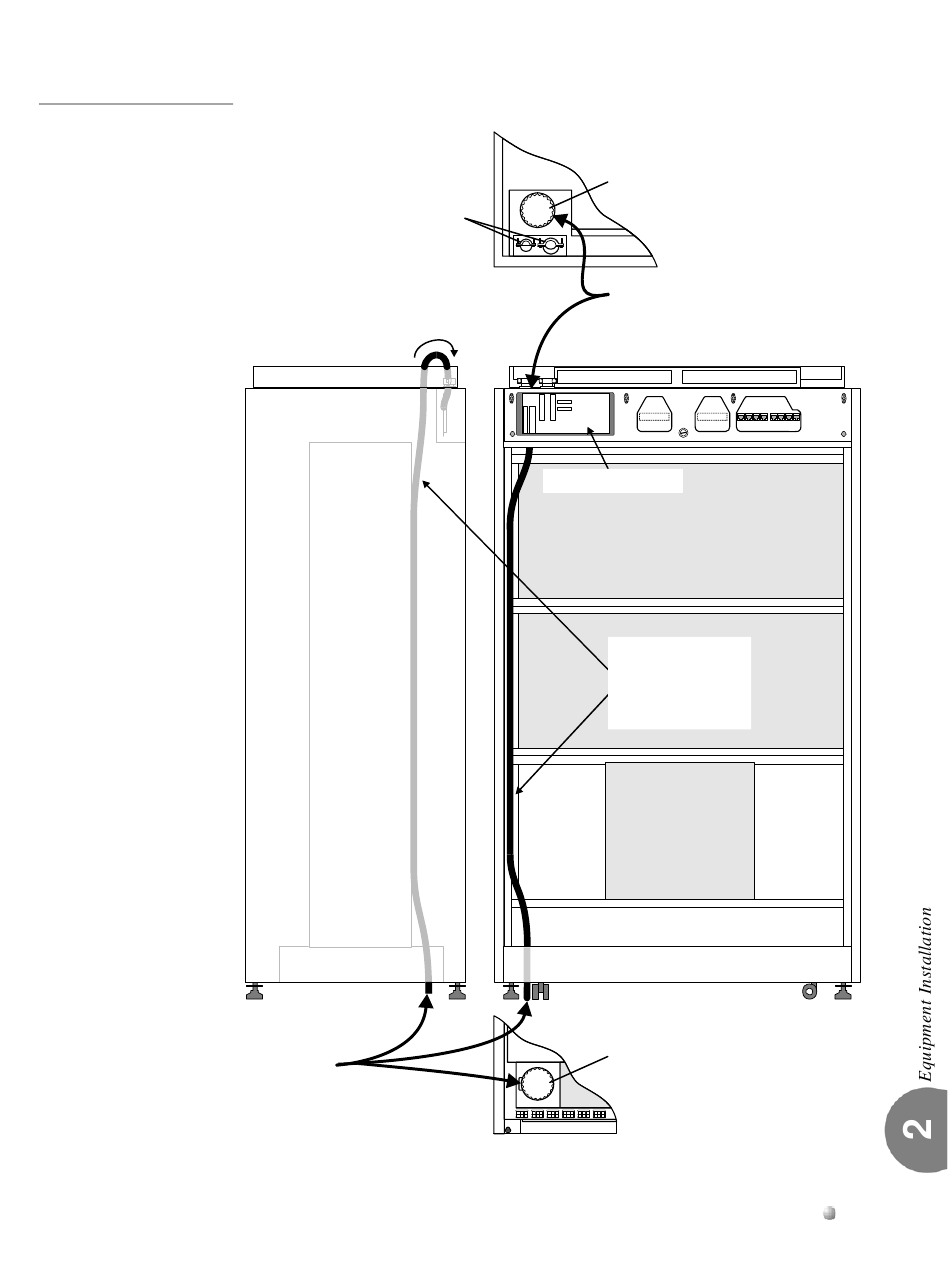

Figure 2-4
FlexiCom
6000 DC Power Cable
Routes
(side and rear views)
Coral FlexiCom 6000 Installation Manual
Cable Clamps
Power Cable from Bottom
Loops Over Here
Side View
Power Cable
Enters from Bottom
Top View
Hole for Cable Exit
Cable Exits through Top
and Re-enters through
Cable Clamps
Power Input Cavity
Route Power
Cable from
Bottom Hole
Upward Along
the Left Side
Rear View
Hole for Cable Entry
Bottom View
Hardware Installation Procedure
2-15
