Even Shelves 0 To 6: Mpg-Ats To Pbd-Ats Cabling Defining The Even Shelf Numbers - Tadiran Telecom Coral FlexiCom 6000 Installation Procedure And Hardware Reference Manual

Table 6-5
MPG-ATS -
Cable Connections define
Peripheral Shelf Unit &
Even Peripheral Shelf #

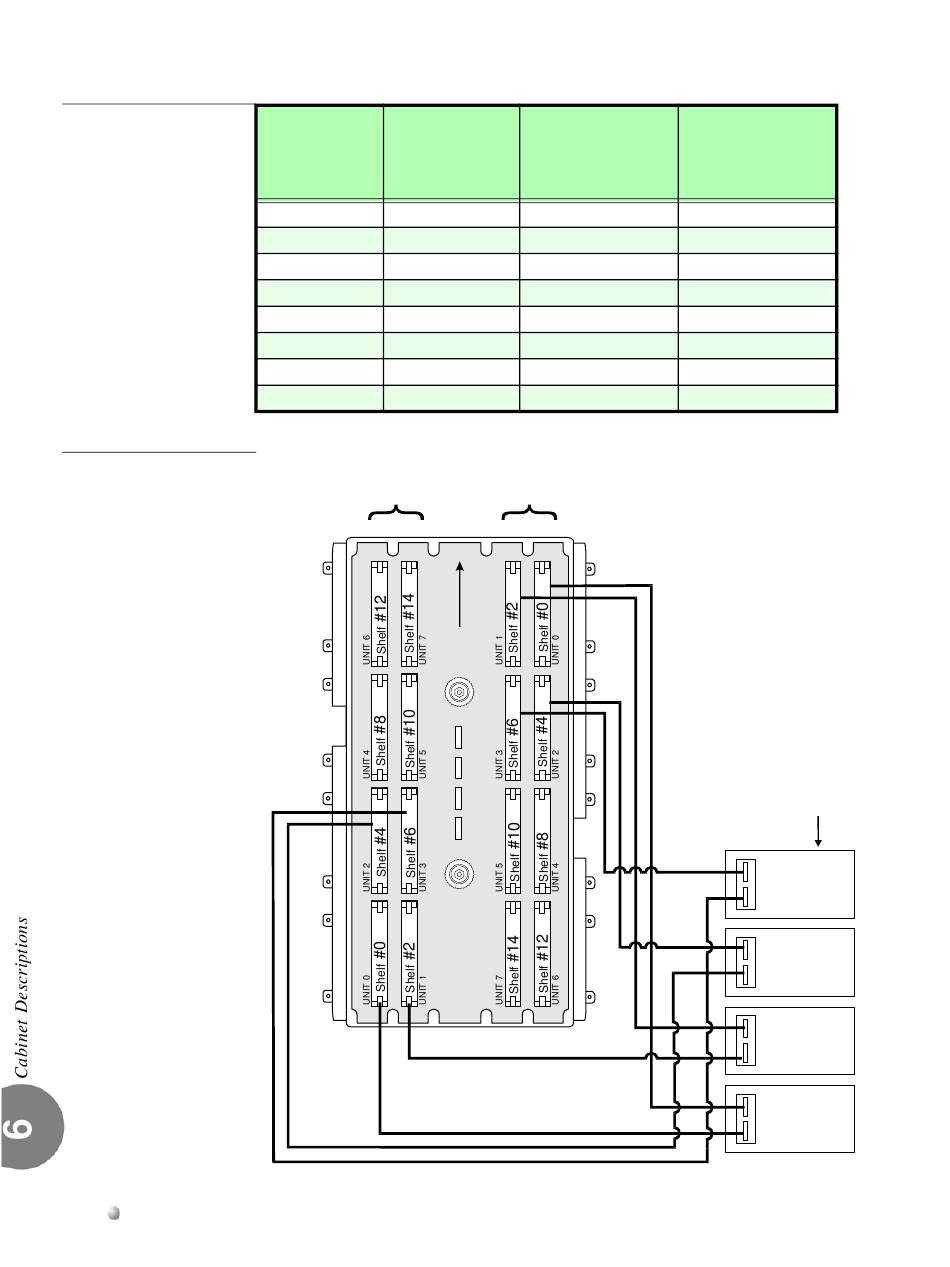

Figure 6-22
Even Shelves 0 to 6:
MPG-ATS to PBD-ATS
Cabling Defining the
Even Shelf Numbers
6-30
Cabinet Descriptions
Peripheral Even Peripheral
Shelf UNIT Shelf Number
0 0
1 2
2 4
3 6
4 8
5 10
6 12
7 14
To PBD-ATS
P3
P7 P8
UP
P5 P6
P3 P4
P1 P2
MPG-ATS
FC-19 cables
MPG-ATS Pn for
FC19 Cable A
Between P3 of PBD-ATS
and right 32GC
P1
P2
P3
P4
P5
P6
P7
P8
To PBD-ATS
P2
P10 P9
P12 P11
P20
P19
P18
P13
P14
P17
P16 P15
MPG-ATS Pn for
for FC19 Cable B
Between P2 of PBD-ATS
and left 32GC
P9
P10
P11
P12
P13
P14
P15
P16
Even shelf numbers are
defined by the MPG-ATS
Pn cable connection to the
PBD-ATS as shown:
Shelf #6
P2
P3
Shelf #4
P2
P3
Shelf #2
P2
P3
Shelf #0
P2
P3
Coral FlexiCom 6000 Installation Manual
