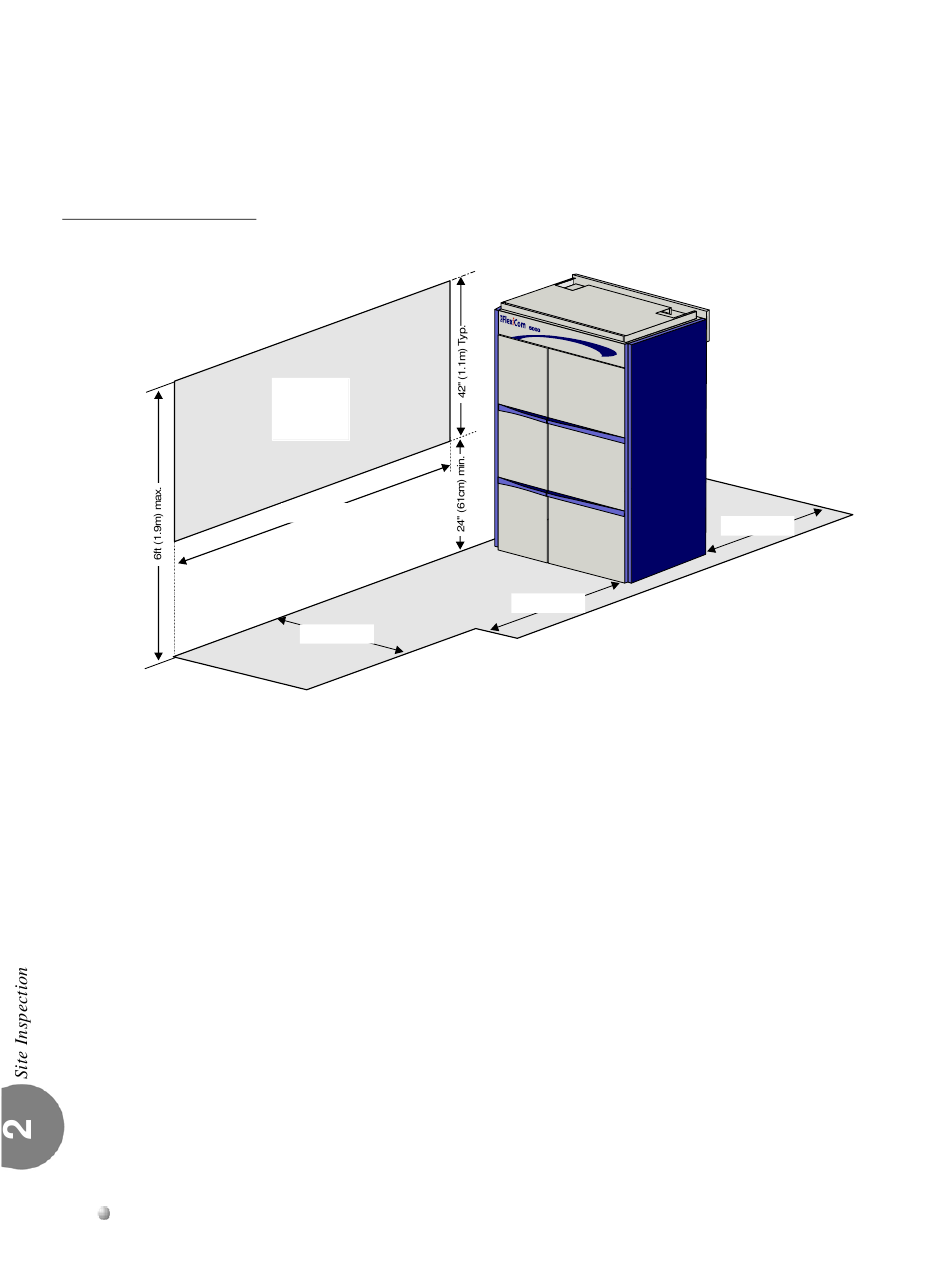

Figure 2-1 Coral MDF
Space Requirements
2-2
Hardware Installation Procedure
m) from the floor. The floor space in front of the MDF must be clear for a
minimum of 3 feet (1m) because of the variety of cable termination hardware
at the MDF. Figure 2-1
arrangement with this Coral system.
Possible
MDF
location
6ft (1.9m) Typ.
3ft (1m) min.
3. Verify that there is sufficient space for any additional equipment related to the
Coral system such as the Program Interface terminal or a PC, Voice Mail
system, External Public Address system, etc.
4. Verify that there is sufficient space for a technician's desk or work table, if one
is provided as part of the installation.
5. Verify that there is sufficient space for Power Backup equipment, if it is
provided as part of the installation. No specific requirements can be detailed in
this procedure, because of the great variety of Power Backup Equipment that is
available.
illustrates the space requirements for the MDF
3ft (1m) min.
3ft (1m) min.
Minimum required
floor and wall
clear space
(shaded areas)
