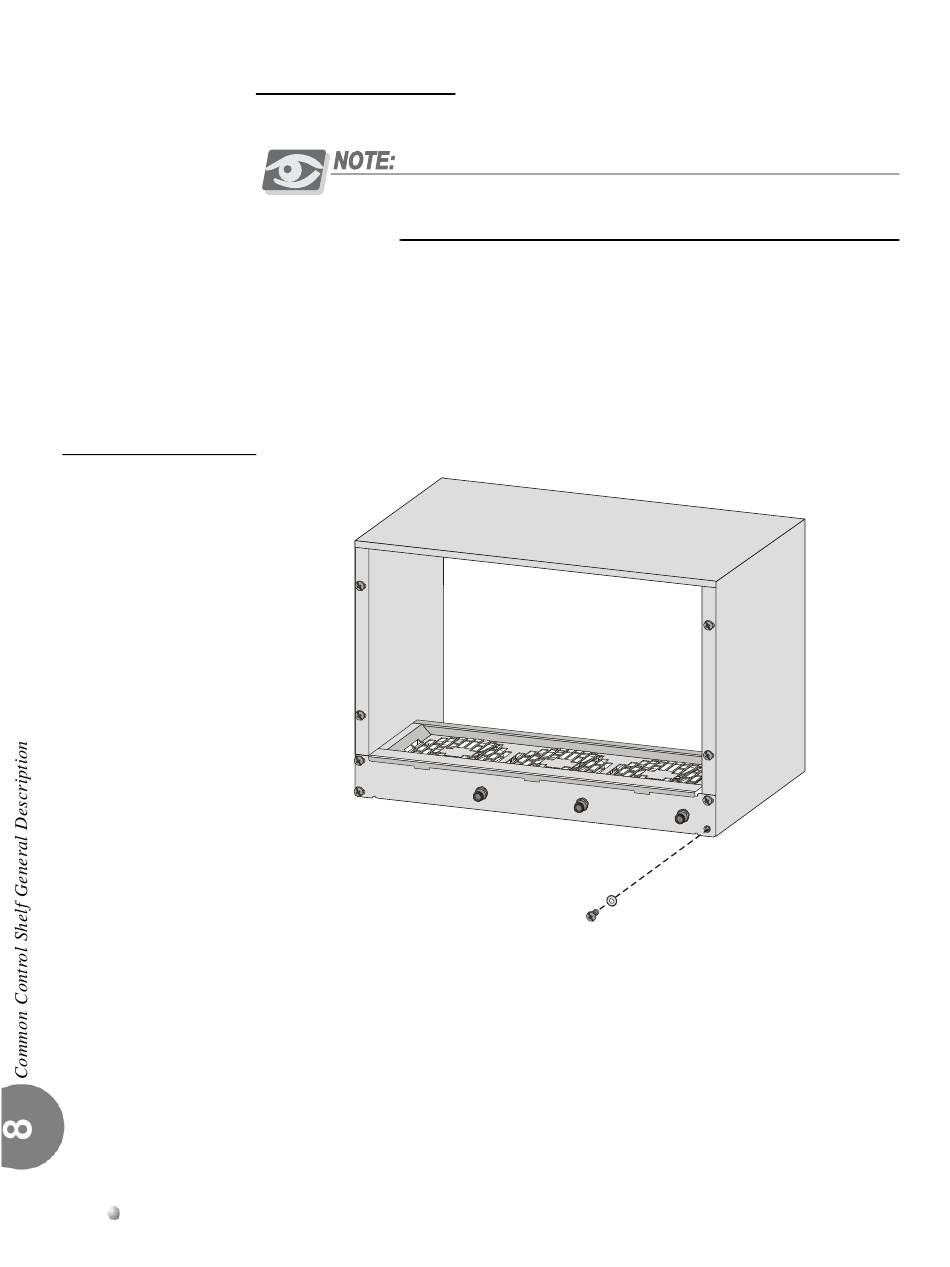

Figure 8-7 Control Shelf Fan Tray - Tadiran Telecom Coral FlexiCom 6000 Installation Procedure And Hardware Reference Manual

Figure 8-7 Control
Shelf Fan Tray
8-16
Common Control Cards
Replacing the Fan Tray
Main Power should only be turned off when call traffic is lowest to avoid
interrupting an operative Coral system.
1. Firmly pull out the fan tray.
2. Insert the new fan tray and gently push it back completely into its slots so as
to assure the backplane connections are secure.
3. Fasten the screws, attaching the fan tray to the chassis.
4. Return Power to the system and check that all the fans are functioning
properly.
0.5A/F/250V
FAN-1
0.5A/F/250V
FAN-2
0.5A/F/250V
FAN-3
Coral FlexiCom 6000 Installation Manual
