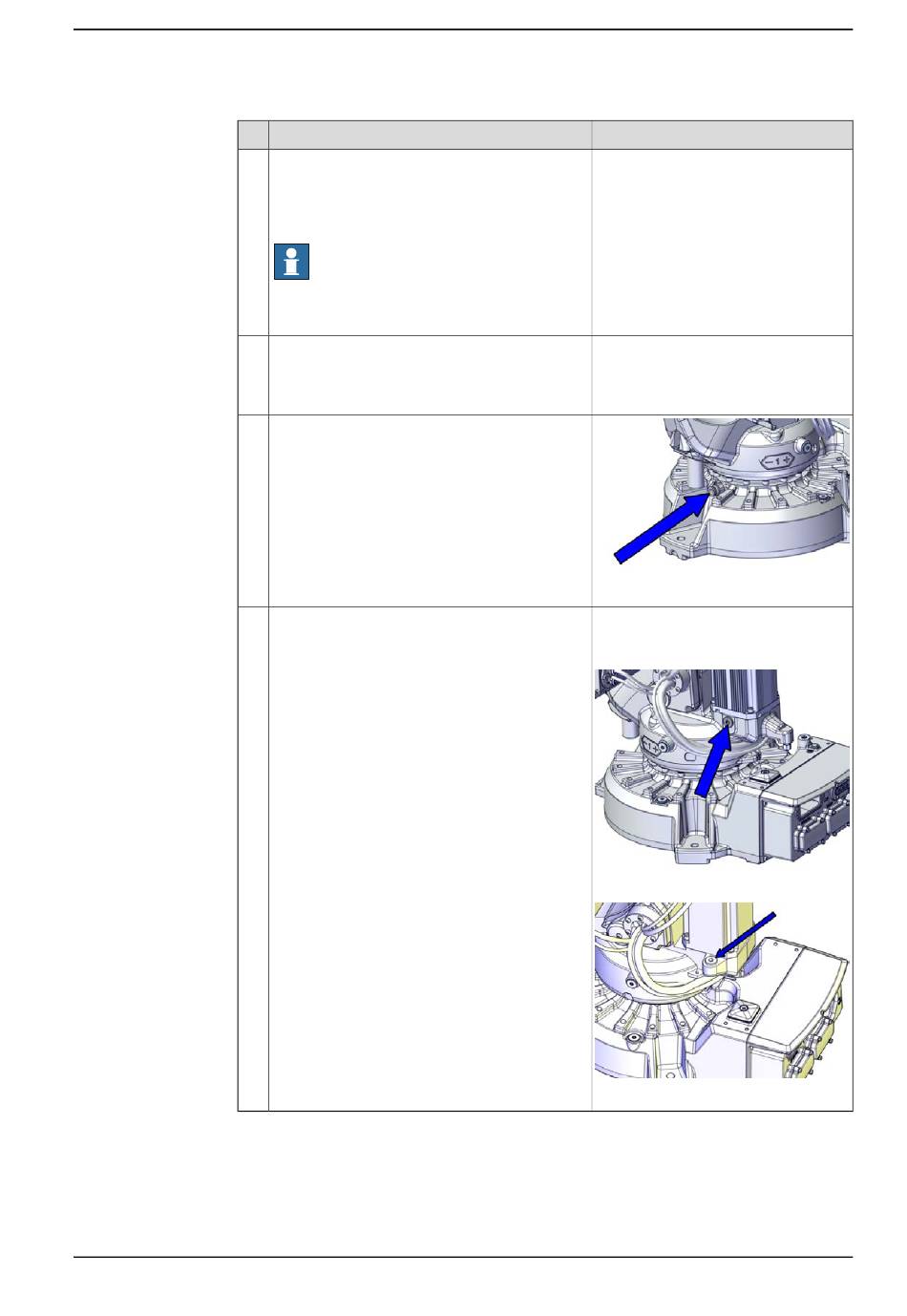

3.4.2 Changing the oil, axis 1 gearbox on floor mounted robots
Action
Refill the gearbox with lubrication oil.
Valid for IRB 2600 Type C-20/1.65, IRB 2600
Type C-12/1.65:
Use the oil dispenser.
Note
The amount of oil to be filled depends on the
amount previously being drained.
Inspect the oil level.
Valid for IRB 2600 Type C-20/1.65, IRB 2600
Type C-12/1.65:
Remove the oil dispenser and refit the protect-
ive cap to the nipple.
Refit the oil plug.
© Copyright 2009-2018 ABB. All rights reserved.
3 Maintenance
Note
Where to find type of oil and total
amount is detailed in Type and
amount of oil in gearboxes on
page 148.
How to inspect the oil level is de-
scribed in section:
• Inspecting oil level, axis-1
gearbox on page 119
xx1800001136
Tightening torque: 24 Nm
Different position due to design differ-
ences:
xx1800001137
xx1800001139
