8-84 Slave Messages Sent
Range:
0 [0 - 65536 ] This parameter shows the number of messages
*
8-85 Slave Timeout Errors
Range:
0 [0 - 65536 ] This parameter shows the number of follower
*
4 4
8-88 Reset FC port Diagnostics
Option:
[0] Do not reset
*
[1] Reset counter
4.8.7 8-9* Bus Feedback
8-94 Bus Feedback 1
Range:
0 [-32768 -
*
32767 ]

4.9 Main Menu - Smart Logic - Group 13

4.9.1 13-** Prog. Features
Smart Logic Control (SLC) is a sequence of user defined
actions (see parameter 13-52 SL Controller Action [x])
executed by the SLC when the associated user defined
event (see parameter 13-51 SL Controller Event [x]) is
evaluated as TRUE by the SLC. Events and actions are each
numbered and linked in pairs. This means that when [0]
event is fulfilled (attains the value TRUE), [0] action is
executed. After this, the conditions of [1] event is evaluated
and if evaluated TRUE, [1] action is executed and so on.
Only one event is evaluated at any time. If an event is
evaluated as FALSE, nothing happens (in the SLC) during
the current scan interval and no other events are
evaluated. This means that when the SLC starts, it
evaluates [0] event (and only [0] event) each scan interval.
Only when [0] event is evaluated TRUE, the SLC executes
[0] action and start evaluating [1] event. It is possible to
programme from 1 to 20 events and actions. When the last
event/action have been executed, the sequence starts over
again from [0] event/[0] action.
68
VLT
Function:
sent from the follower.
Function:
timeout errors.
Function:
Function:
Write a feedback to this parameter via the
serial communication port. This parameter
must be selected in 20-00 Feedback 1 Source
as a feedback source. (Hex-value 4000 h
corresponds to 100% feedback/range is
±200%)
®
DriveMotor FCP 106 and FCM 106 Programming Guide

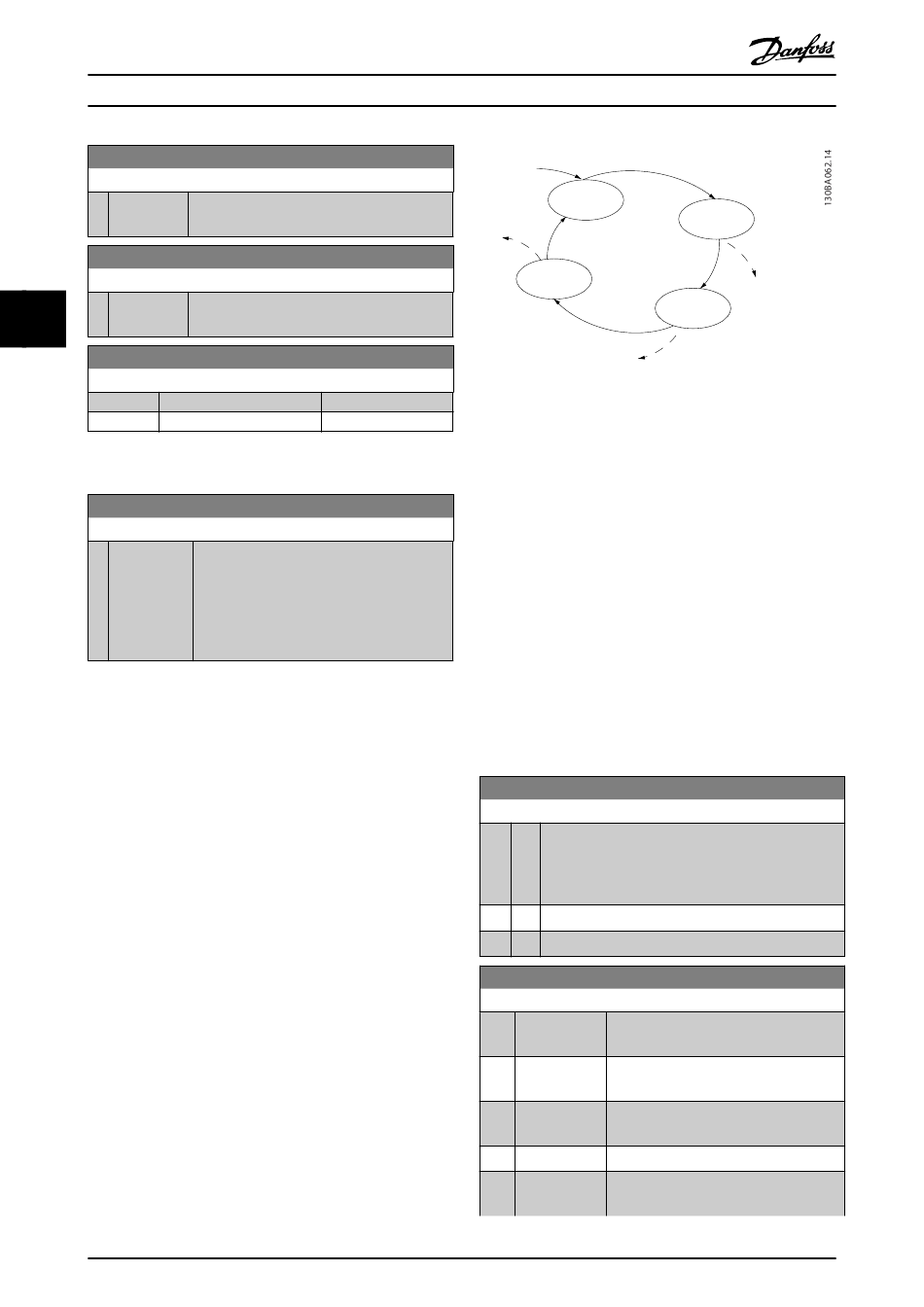

Start
event P13-01
Stop
event P13-02
State 4
13-51.3
13-52.3
Illustration 4.15 Example with Three Event/Actions
Starting and stopping the SLC
Starting and stopping the SLC can be done by selecting [1]
On or [0] Off in parameter 13-00 SL Controller Mode. The
SLC always starts in state 0 (where it evaluates [0] event).
The SLC starts when the Start Event (defined in
parameter 13-01 Start Event) is evaluated as TRUE (provided
that [1] On is selected in parameter 13-00 SL Controller
Mode). The SLC stops when the Stop Event
(parameter 13-02 Stop Event) is TRUE. Parameter 13-03 Reset
SLC resets all SLC parameters and starts programming from
scratch.
4.9.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comparators are always running in the background, which
opens for separate control of digital inputs and outputs.
13-00 SL Controller Mode
Option: Function:
Select [1] On to enable the Smart Logic Control to
start when a start command is present, e.g. via a
digital input. Select [0] Off to disable the Smart Logic
Control.
[0] Off Disables the Smart Logic Controller.
*
[1] On Enables the Smart Logic Controller.
13-01 Start Event
Option:
[0] False
[1] True
[2] Running
[3] In range
MG03N102 - Rev. 2013-12-02
State 1
13-51.0
13-52.0
State 2
13-51.1
13-52.1
State 3
13-51.2
13-52.2
Stop
event P13-02
Function:
Select the boolean (TRUE or FALSE) input
to activate Smart Logic Control.
Enters the fixed value of FALSE in the
logic rule.
Enters the fixed value TRUE in the logic
rule.
The motor is running.
Motor runs within programmed current
ranges (parameter 4-50 Warning Current
Stop
event P13-02
