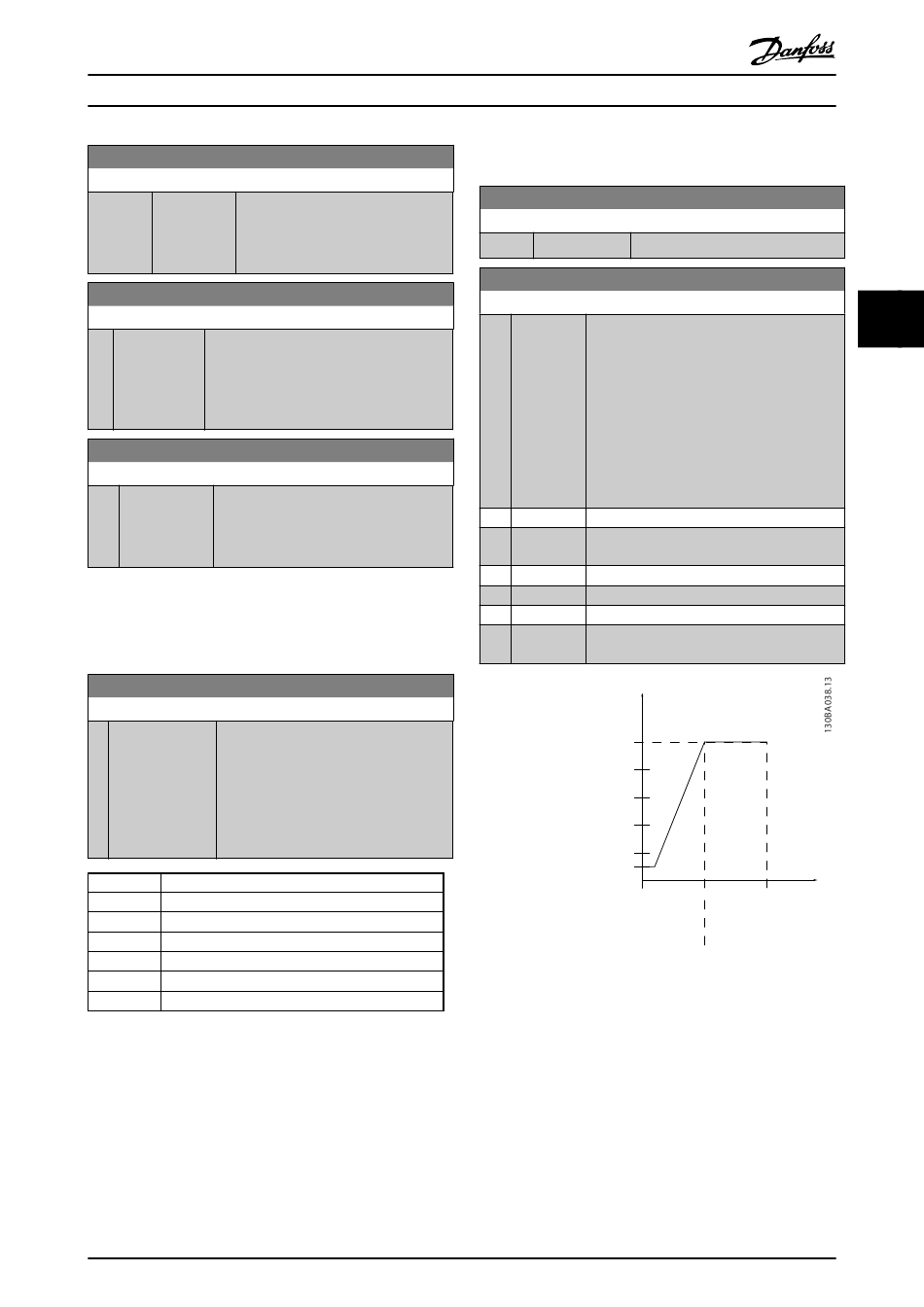

Parameters
5-51 Term. 29 High Frequency
Range: Function:
32000 Hz [5 - 32000 Enter the high frequency limit
*
Hz] corresponding to the high motor shaft
speed (i.e. high reference value) in
5-53 Term. 29 High Ref./Feedb. Value.
5-52 Term. 29 Low Ref./Feedb. Value
Range: Function:
0 [-4999 - Enter the low reference value limit for the
*
4999 ] motor shaft speed [RPM]. This is also the
lowest feedback value, see also
5-13 Terminal 29 Digital Input = [32] Pulse
Input).
5-53 Term. 29 High Ref./Feedb. Value
Range: Function:
50 [-4999 - Enter the high reference value [RPM] for
*
4999 ] the motor shaft speed and the high
feedback value, see also 5-13 Terminal 29
Digital Input = [32] Pulse Input).
4.6.6 5-9* Bus Controlled
This parameter group selects digital and relay outputs via
a fieldbus setting.
5-90 Digital & Relay Bus Control
Range: Function:
0 [0 - 0xFFFFFFFF ] This parameter holds the state of the
*
digital outputs and relays that is
controlled by bus.
A logical '1' indicates that the output is
high or active.
A logical '0' indicates that the output is
low or inactive.
Bit 0-3 Reserved
Bit 4 Relay 1 output terminal
Bit 5 Relay 2 output terminal
Bit 6-23 Reserved
Bit 24 Terminal 42 Digital Output
Bit 25 Terminal 45 Digital Output
Bit 26-31 Reserved
Table 4.6 Bit Functions

4.7 Main Menu - Analog In/Out - Group 6

Parameter group for setting up the analog I/O configu-
ration and the digital output. The frequency converter is
equipped with 2 analog inputs: Terminal 53 and 54. The
analog inputs can freely be allocated to either voltage
(0-10 V) or current input (0/4-20 mA)
®
VLT DriveMotor FCP 106 and FCM 106 Programming Guide
4.7.1 6-0* Analog I/O Mode
6-00 Live Zero Timeout Time
Range:
10 s
*
6-01 Live Zero Timeout Function
Option:
[0] Off
*
[1] Freeze
output
[2] Stop
[3] Jogging
[4] Max. speed
[5] Stop and
trip
Par 6-xx
High Ref./
Feedb. Value'
Par 6-xx
Low Ref./
Feedb. Value'
Illustration 4.12 Live Zero Timeout Function
4.7.2 6-1* Analog Input 53
Parameters for configuring the scaling and limits for
analog input 53 (terminal 53).
MG03N102 - Rev. 2013-12-02
Function:
[1 - 99 s] Enter the time-out time.
Function:
Select the time-out function. The function set
in parameter 6-01 Live Zero Timeout Function is
activated, if the input signal on terminal 53 or
54 is below 50% of the value in
parameter 6-10 Terminal 53 Low Voltage,
parameter 6-12 Terminal 53 Low Current,
parameter 6-20 Terminal 54 Low Voltage or
parameter 6-22 Terminal 54 Low Current for a
time period defined in parameter 6-00 Live
Zero Timeout Time.
Ref./Feedback
[RPM]
1500
1200
900
600
300
150
1 V 5 V
Par 6-xx
'Low Voltage'or
'Low Current'
Par 6-xx
'High Voltage'or
'High Current'
4 4
10 V
[V]
Analog input
59
