Danfoss VLT DriveMotor FCP 106 Programming Manual page 38

Parameters
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
4 4
Min value
Liniar
units only
P 0-31
0

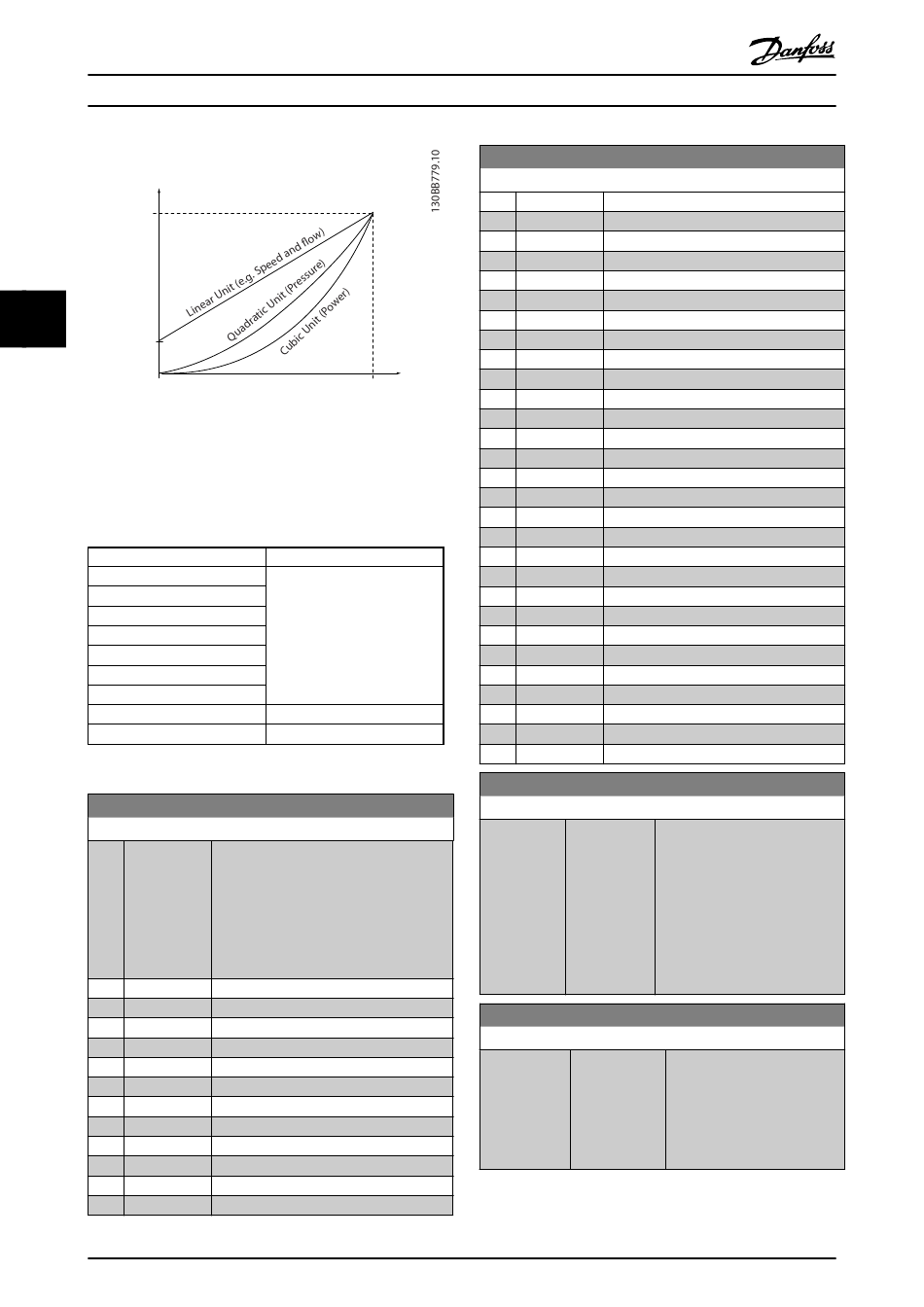

Illustration 4.1 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Table 4.1 Relation
0-30 Custom Readout Unit
Option:
[0] None
[1] %
*
[5] PPM
[10] l/Min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m3/s
[24] m3/min
[25] m3/h
36
®
VLT DriveMotor FCP 106 and FCM 106 Programming Guide
Motor Speed
Motor Speed
High limit
P 4-14 (Hz)
Speed Relation
Linear
Quadratic
Cubic
Function:
Program a value to be shown in the
display of the LCP. The value has a linear,
squared or cubed relation to speed. This
relation depends on the unit selected (see
table above). The actual calculated value
can be read in parameter 16-09 Custom
Readout.
0-30 Custom Readout Unit
Option:
[30] kg/s
[31] kg/min
[32] kg/h
[33] t/min
[34] t/h
[40] m/s
[41] m/min
[45] m
[60] Degree Celsius
[70] mbar
[71] bar
[72] Pa
[73] kPa
[74] m Wg
[80] kW
[120] GPM
[121] gal/s
[122] gal/min
[123] gal/h
[124] CFM
[127] ft3/h
[140] ft/s
[141] ft/min
[160] Degree Fahr
[170] psi
[171] lb/in2
[172] in WG
[173] ft WG
[180] hp
0-31 Custom Readout Min Value
Range:
0 CustomRea-
doutUnit
*
0-32 Custom Readout Max Value
Range:
100 Custom-
ReadoutUnit
*
MG03N102 - Rev. 2013-12-02
Function:
Function:
[ 0 - This parameter allows the choice
999999.99 of the min. value of the custom
CustomRea- defined readout (occurs at zero
doutUnit] speed). It is only possible to
select a value different to 0 when
selecting a linear unit in
parameter 0-30 Custom Readout
Unit. For Quadratic and Cubic
units the minimum value is 0.
Function:
[ 0.0 - This parameter sets the max
999999.99 value to be shown when the
CustomRea- speed of the motor has
doutUnit] reached the set value for
parameter 4-14 Motor Speed
High Limit [Hz].
