3 RS-485 Installation and Set-up

3.1 RS-485

3 3

3.1.1 Overview

RS-485 is a 2-wire bus interface compatible with multi-drop network topology, that is, nodes can be connected as a bus, or
via drop cables from a common trunk line. A total of 32 nodes can be connected to one network segment.
Repeaters divide network segments, see Illustration 3.1.

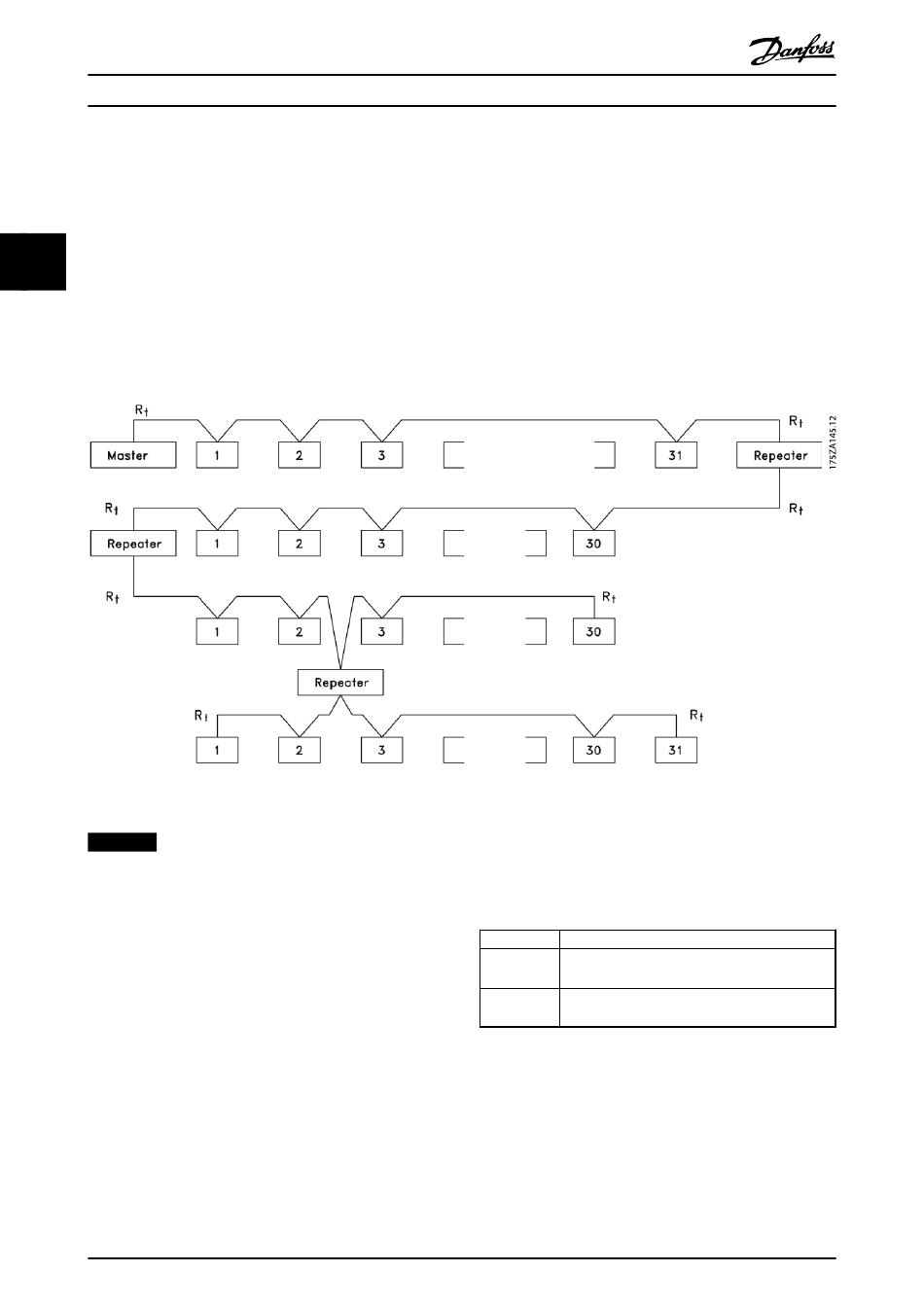

Illustration 3.1 RS-485 Bus Interface
NOTICE
Each repeater functions as a node within the segment in
which it is installed. Each node connected within a given
network must have a unique node address across all
segments.
Terminate each segment at both ends, using either the
termination switch (S801) of the frequency converters or a
biased termination resistor network. Always use screened
twisted pair (STP) cable for bus cabling, and follow good
common installation practice, according to Illustration 3.2.
Low-impedance ground connection of the screen at every
node is important, including at high frequencies. Thus,
connect a large surface of the screen to ground, for
example with a cable clamp or a conductive cable gland. It
may be necessary to apply potential-equalising cables to
maintain the same earth potential throughout the network
- particularly in installations with long cables.
16
®
VLT DriveMotor FCP 106 and FCM 106 Programming Guide
To prevent impedance mismatch, always use the same
type of cable throughout the entire network. When
connecting a motor to the frequency converter, always use
screened motor cable.
Cable
Impedance
[Ω]
Cable length
[m]
Table 3.1 Cable Specifications
MG03N102 - Rev. 2013-12-02
Screened twisted pair (STP)
120
Max. 1200 (including drop lines)
Max. 500 station-to-station
