Programming

2 Programming
2.1 Programming with MCT 10 Setup
Software
The frequency converter can be programmed from a PC
via RS-485 COM port by using the MCT 10 Set-up Software.
This software can either be ordered using code number
130B1000 or downloaded from www.danfoss.com/Busines-
sAreas/DrivesSolutions/softwaredownload.

2.2 Local Control Panel (LCP)

The LCP is divided into 4 functional sections.
A. Alphanumeric display
B. Menu selection
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
1
2
1-20 Motor Power
3
A [5] 0.37kW - 0.5HP
Setup 1
4
Status
B
Menu
6
Com.
C
10
Back
On
7
Warn.
8
Alarm
9
Hand
D
On
13

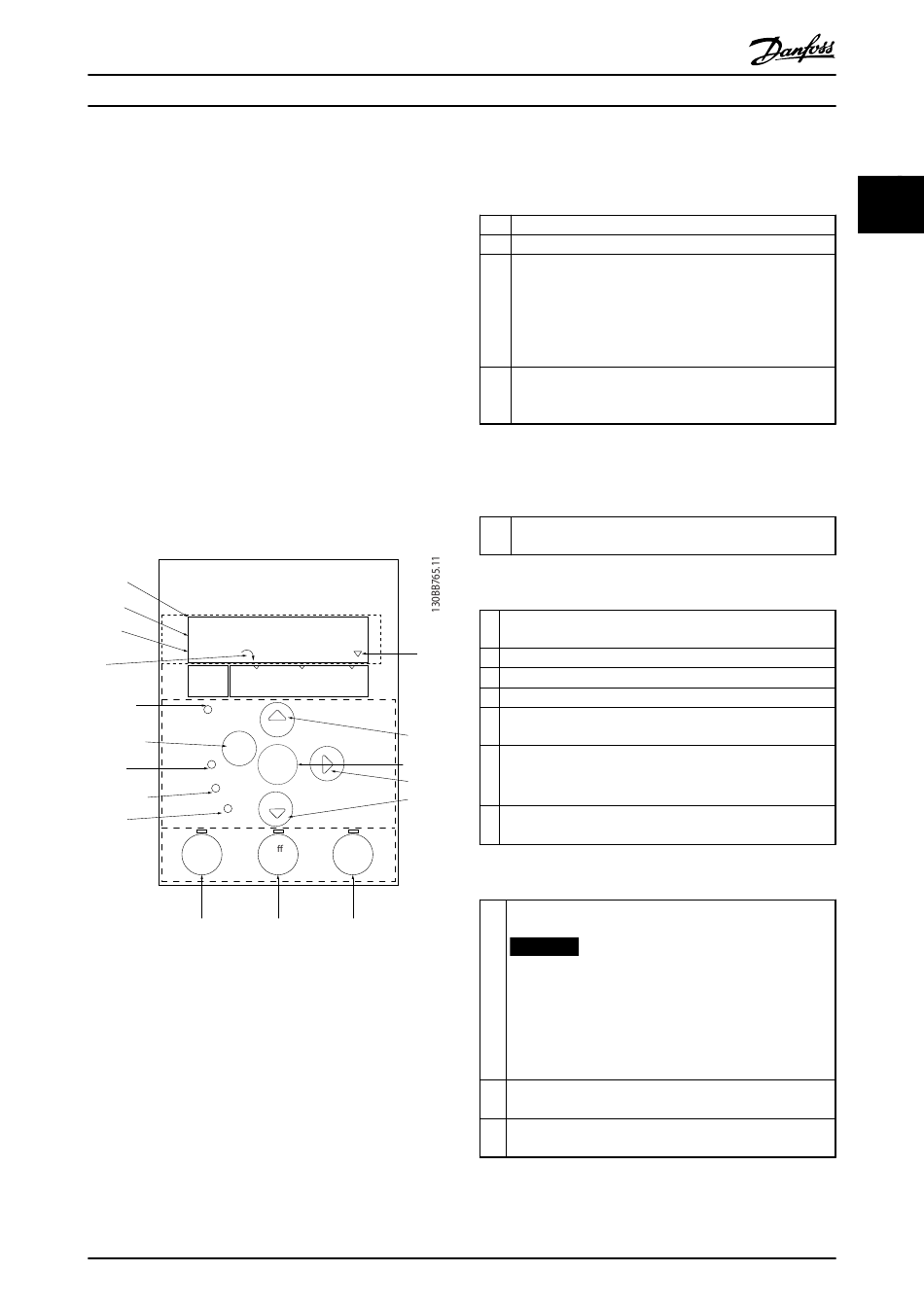

Illustration 2.1 Local Control Panel (LCP)
A. Alphanumeric display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is displayed on the LCP.
Information can be read from the display.
®
VLT DriveMotor FCP 106 and FCM 106 Programming Guide
5
Main
Quick
Menu
Menu
11
12
OK
11
11
O Auto
Reset On
14 15
MG03N102 - Rev. 2013-12-02
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (Set-up 12). The number flashing, indicates the
edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
B. Menu key
Use the [Menu] key to select between status, quick menu
or main menu.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
C. Navigation keys and indicator lights (LEDs)
6 Com LED: Flashes when bus communication is communi-
cating.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
▲ ▼
11 [
] [ ] [►]: For maneuvering between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
NOTICE
Terminal 27 Digital Input (parameter 5-12 Terminal
27 Digital Input) has coast inverse as default
setting. This means that [Hand On] does not start
the motor if there is no 24 V to terminal 27.
Connect terminal 12 to terminal 27.
14 [Off/Reset]: Stops the motor (Off). If in alarm mode the
alarm is reset.
15 [Auto On]: Frequency converter is controlled either via
control terminals or serial communication.
