Programming

2.3 LCP Menus

2.3.1 Status Menu

2 2
In the Status menu, the selection options are:
•
Motor Frequency [Hz], parameter 16-13 Frequency
•
Motor Current [A], parameter 16-14 Motor current
•
Motor Speed Reference in Percentage [%],
parameter 16-02 Reference [%]
•
Feedback, parameter 16-52 Feedback[Unit]
•
Motor Power [kW] (if parameter 0-03 Regional
Settings is set to [1] North America, Motor Power
is shown in the unit of hp instead of kW),
parameter 16-10 Power [kW] for kW,
parameter 16-11 Power [hp] for hp
•
Custom Readout parameter 16-09 Custom Readout

2.3.2 Quick Menu

Use the Quick Menu to programme the most common
functions. The Quick Menu consists of:
•
Wizard for open loop applications, see
chapter 2.3.4 Start-up Wizard for Open Loop
Applications
•
Closed loop set-up wizard, see chapter 2.3.5 Set-
up Wizard for Closed Loop Applications
•
Motor set-up, see chapter 2.3.6 Quick Menu Motor
Set-up
•
Changes made

2.3.3 Main Menu

Main Menu is used for access to and programming of all
parameters. The Main Menu parameters can be accessed
readily unless a password has been created via
parameter 0-60 Main Menu Password.
For the majority of applications it is not necessary to
access the Main Menu parameters. Instead the Quick Menu
provides the simplest and quickest access to the
parameters which are typically required.
10
®
VLT DriveMotor FCP 106 and FCM 106 Programming Guide
2.3.4 Start-up Wizard for Open Loop
Applications
The start-up wizard guides the installer through the set-up
of the frequency converter in a clear and structured
manner to set up an open loop application. An open loop
application does not utilise a feedback signal from the
process.

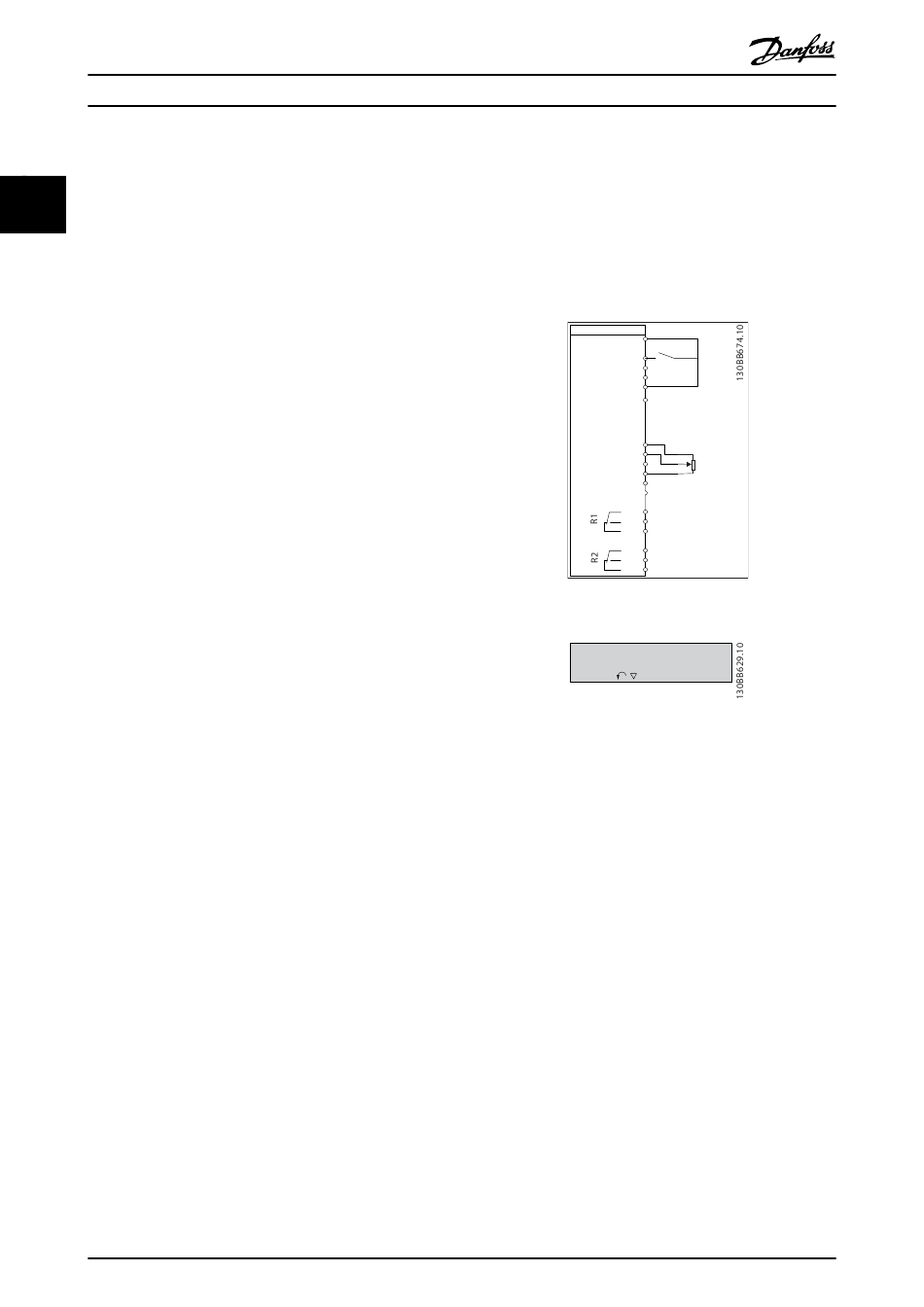

Illustration 2.2 Principle Wiring for Open Loop Start-up Wizard
Illustration 2.3 Wizard Start View
The wizard start view appears after power up, and remains
until a parameter setting is changed. Access to the wizard
is always available later, via the quick menu. Press [OK] to
start the wizard. Press [Back] to return to the status screen.
MG03N102 - Rev. 2013-12-02
FC
12
+24V
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
DIG IN 29
+10V
50
+
A IN
53
Reference
A IN
54
COM
55
-
42
0-10V
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06
Press OK to start Wizard
Push Back to skip it
Setup 1
