SpectraMax Paradigm Multi-Mode Detection Platform User Guide

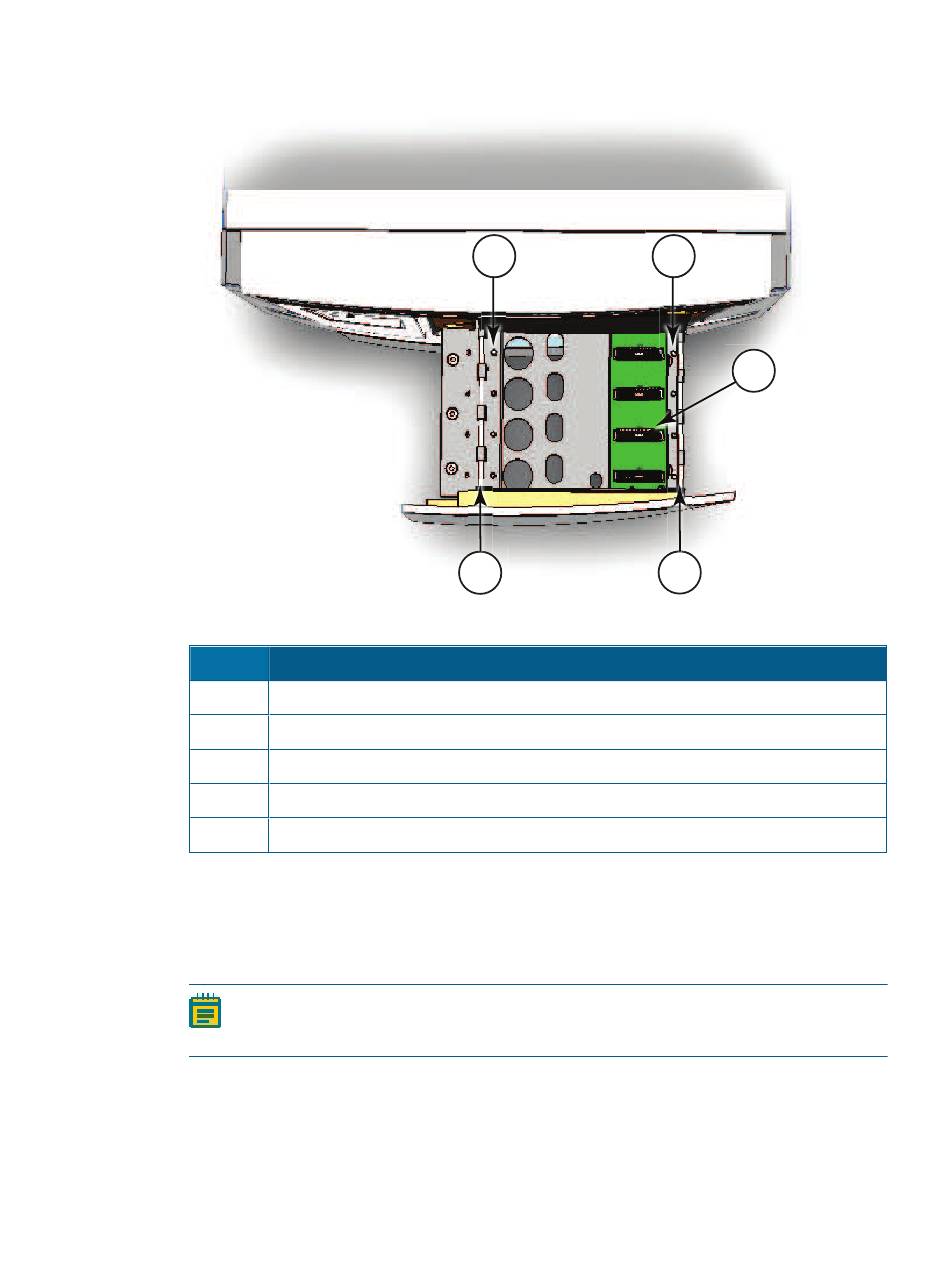

Figure 4-3: Top View of Detection Cartridge Drawer
Item
1
2
3
4
5
5. Gently but firmly push the detection cartridge onto the holder pins and connector so
that the detection cartridge is fully seated in the detection cartridge slot.
6. Push the two retaining clips on either side of the detection cartridge so that they fasten
to the retaining rods on each side of the detection cartridge drawer.
86
Description
Holder pin
Holder pin
Detection cartridge connector
Retaining rod
Retaining rod
Note: Detection cartridges that occupy more than one slot have two retaining
clips on each side. Fasten all retaining clips to the retaining rods.
1
4
2
3
5
5014038 E
